| ANSI Code | TNMG332PG CA510 |
| ANSI Number | TNMG332PG-CA510 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | PG |
| Chip-Breaker Style | Double Sided |
| Chip-Breaker, Steel (P) Compatibility | Yes |
| Clearance Angle | 0 Degrees |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Corner Radius | 0.0312 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Crack Resistant |
| Feed Type | High |
| Finish - Machining | TiCN+Al2O3+TiN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | CA510 |
| Included Angle | 60 Degrees |
| Inscribed Circle | 3/8 in |
| Insert Application | Medium |
| Insert Code | TNMG332 |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape, Shape | Triangle |
| Insert Size | 332 |
| Insert Style | TNMG |
| Insert Thickness | 0.1875" |
| ISO Number | TNMG160408PG |

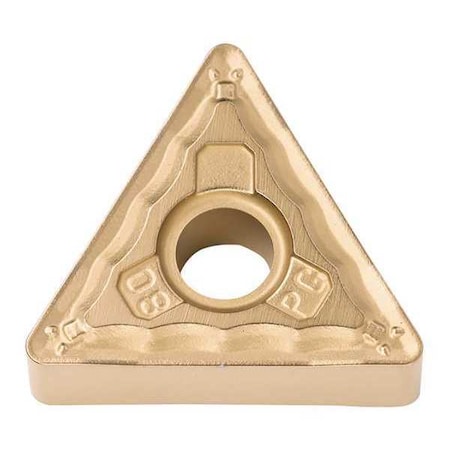

| Item | Triangle Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.150" |
| Mounting Style | Clamp |
| No. of Edges, Number of Cutting Edges | 6 |
| Nose Radius | 0.0313" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Thickness | 3 |
| Through Hole Inside Dia. | 0.15 in |
| Workpiece Compatibility | Steel (P) |
