| ANSI Code | TPGH221LH |
| Chip-Breaker | Yes |
| Chip-Breaker Code | H |
| Clearance Angle | 11 Degrees |
| Coating Process | PVD |
| Corner Radius | 1/64" |
| Country of Origin (subject to change) | China |
| Cutting Application | Back Boring, Boring, Copying, External Turning, Internal Facing |
| Cutting Direction | Left Hand |
| Features | Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish |
| Finish - Machining | Megacoat Nano |
| General Shape, Insert Shape, Shape | Triangle |
| Hole Type | 70 Degrees to 90 Degrees Countersink Through Hole |
| Included Angle | 60 Degrees |
| Inscribed Circle, Thickness | 2 |
| Insert Code | 221 |
| Insert Holding Type | Screw |
| ISO Number | TPGH110304L-H |

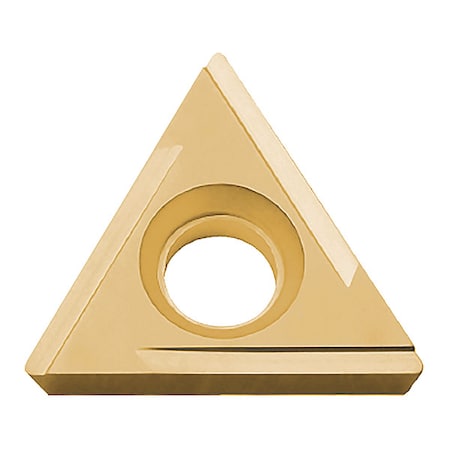

| Item | Diamond Turning Insert |
| Manufacturer Grade | PV720 |
| Material - Machining | Cermet |
| Material Grade - Machining | TiCN Component |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 3 |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Positive |
| Secondary Material Application | Stainless Steel |
| Secondary Material Application ISO Code | M |
| Through Hole Inside Dia. | 0.1299" |
