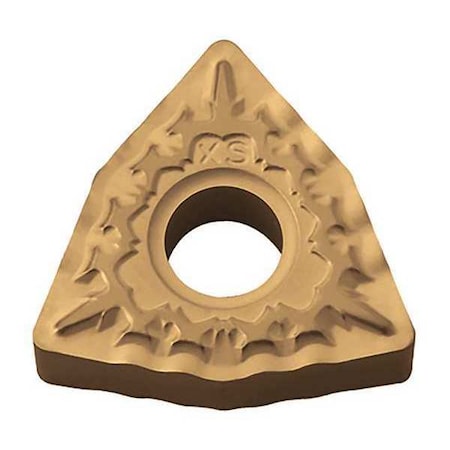

| ANSI Code | WNMG432XS CA515 |
| ANSI Number | WNMG432XS-CA515 |
| Cast Iron (K) Compatibility, Hardened (H) Compatibility, Non Ferrous (N) Compatibility, Stainless (M) Compatibility, Super Alloy (S) Compatibility | No |
| Chip-Breaker Code | XS |
| Chip-Breaker Style | Double Sided |
| Chip-Breaker, Steel (P) Compatibility | Yes |
| Clearance Angle | 0 Degrees |
| Coating | TiCN/Al2O3/TiN |
| Coating Process | CVD |
| Corner Radius | 1/32 in |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Features | Crack Resistant |
| Finish - Machining | TiCN+Al2O3+TiN |
| For Use With | Toolholders, Boring Bars |
| Grade, Manufacturer Grade | CA515 |
| Included Angle | 80 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Roughing |
| Insert Code | WNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Material, Material, Material - Machining | Carbide |
| Insert Shape, Shape | Trigon |
| Insert Size | 432 |
| Insert Style | WNMG |
| Insert Thickness | 0.1875" |
| ISO Number | WNMG080408XS |
| Item | Turning Insert |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| No. of Edges, Number of Cutting Edges | 6 |
| Nose Radius | 0.0313" |
| Primary Material Application | Steel |
| Primary Material Application ISO Code | P |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Thickness | 3 |
| Through Hole Inside Dia. | 0.2031 in |
| Workpiece Compatibility | Steel (P) |
