| ANSI Code, ISO Number | XPMT15T364 |
| Chip-Breaker | No |
| Clearance Angle | 15 Degrees |
| Coating Process | PVD |
| Corner Radius | 6.40mm |
| Country of Origin (subject to change) | Japan |
| Cutting Application | Chamfering, Countersinking, Facing, Shouldering, Slotting |
| Cutting Direction | Neutral |
| Cutting Edge Length | 15.42mm |
| Features | For Carbon/Alloy and Free-Cutting Steel and Heat-Resistant Alloys |
| Finish - Machining | TiN |
| For Toolholder | CM..., EM..., FM...-90RH |
| Hole Type | Countersunk Hole |
| Inscribed Circle | 3/8 in |
| Insert Holding Type | Screw |
| Insert Size | 15T364 |
| Insert Style | XPMT |

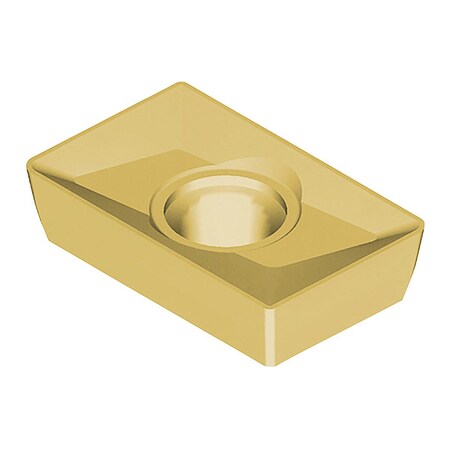

| Item | Parallelogram Milling Insert |
| Manufacturer Grade | PR660 |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Hole Dia., Through Hole Inside Dia. | 4.00mm |
| Number of Cutting Edges | 2 |
| Primary Material Application | High-Temperature Alloys, Steel |
| Primary Material Application ISO Code | P, S |
| Rake | Positive |
| Secondary Material Application | Austenitic Stainless Steel |
| Secondary Material Application ISO Code | M |
| Shape | Parallelogram |
| Thickness | 3.97mm |
