Attributes
| Key | Value |
|---|---|
| Country of Origin (subject to change) | United States |
| Cutting Direction | Right Hand |
| Dimension Type | Fractional Inch |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | Carbide |
| End Mill Style | Tapered |
| Finish | Bright (Uncoated) |
| Finish - Machining | Bright (Uncoated) |
| Helix Angle | 28 Degrees |
| Included Angle | 2 Degrees |

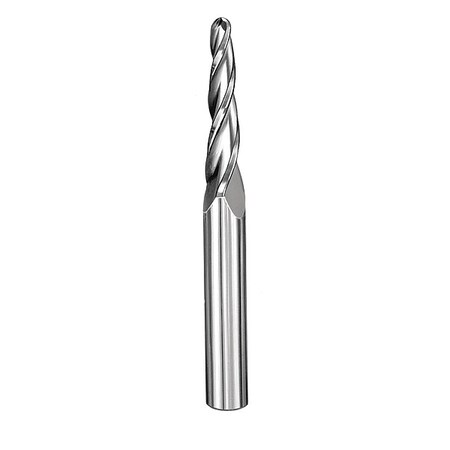

| Item | Tapered End Mill |
| Large End Dia. | 1/4 in |
| Length Below Shank | 2 7/8 in |
| Length of Cut | 1/8 in |
| Material - Machining | Carbide |
| Material Applications | Cast Iron, Composite, Hardened Steel, Non-Ferrous, Stainless Steel, Steel, Titanium |
| Measurement System | Fractional Inch |
| Number of Flutes | 3 |
| Overall Length | 3 in |
| Primary Material Application | All Materials |
| Primary Material Application ISO Code | H, K, M, N, P, S |
| Shank Dia. | 1/4 in |
| Shank Type | Square |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Taper Angle Per Side | 2.0 Degrees |
| Taper Angle per Side | 2.0 Degrees |
| Tip Dia. | 1/8 in |
