Description:

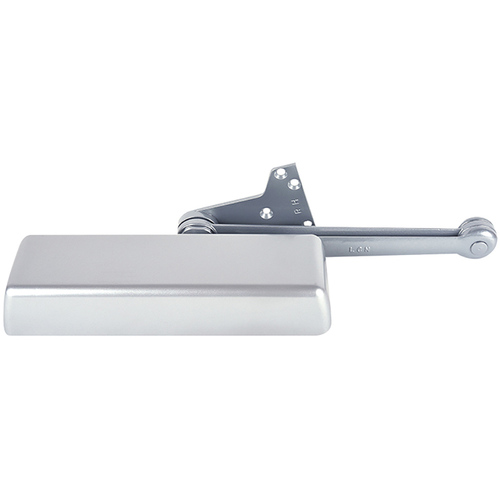

4110 SeriesHeavy Duty Closer<p>The 4110 is LCN?s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.</p>Specifications: Certifications:<ul><li>Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act</li></ul> Body Construction:<ul><li>Cast Iron Body</li><li>Full Complement Bearing</li><li>1-1/2" Diameter Piston</li><li>11/16" Diameter Double Heat Treated Pinion Journal</li></ul> Fluid:<ul><li>All Weather Fluid</li></ul> Handing:<ul><li>Handed</li></ul> Templating:<ul><li>Peel-n-Stick templates - 2-1/2" x 6" Mounting Hole Pattern</li></ul> Size:<ul><li>Adjustable Spring Size 1-5, or Sized 6, Includes Patented Green Dial</li></ul> Warranty:<ul><li>30 years</li></ul> Cover:<ul><li>Plastic, Standard</li><li>Metal, Optional</li></ul> Fasteners:<ul><li>Self Reaming and Tapping Screws (SRT)</li></ul> Mounting:<ul><li>Parallel Arm (Push Side)</li></ul> Arms:<ul><li>Extra-Duty arm</li></ul> Finishes/Colors/Powder Coat:<ul><li>Aluminum (689)</li><li>Statuary Bronze (690)</li><li>Light Bronze (691)</li><li>Black (693)</li><li>Dark Bronze (695)</li><li>Brass (696)</li><li>Custom colors optional</li><li>Optional SRI primer - powder coat only</li><li>Optional plated finishes</li></ul>
Attributes
| Key ^ | Value |
|---|---|
| ADA Compliant, BAA Qualified, Cold Weather Fluid | Yes |
| Aluminium Bottle Contents | Swinging |
| Application | High-Traffic Installations and Designed Specifically for Unique Mounting Applications |
| Builders Hardware Product Type | Door Closer |
| Certifications and Listings | ANSI Certified |
| Closer Arm Construction | Forged Steel |
| Closer Arm Extension | 11-1/2 Inch |
| Closer Arm Type | Hold Open Extra Duty Arm |
| Closer Clearance | 5-1/2 Inch |
| Closer Cover | Plastic Cover |
| Closer Fluid | All Weather Fluid |
| Closer Fluid Temperature Range | -30?F to 120?F |
| Closer Hold-Open | true |
| Closer Pinion Diameter | 11/16 Inch |
| Closer Piston Diameter | 1-1/2 Inch |
| Closer Size | Adj. 1 to 5 |
| Color | Sprayed Aluminum |
| Color Code | 689/US28 |
| Commercial/Residential | Commercial |
| Cover | Full Plastic |
| Degree Hold Open, Degree Swing | 180 Deg. |
| Door Series | 4110 |
| Door Size | 4' 6" (Interior); 3' 6" (Exterior) |
| Door Thickness | 1-3/4 inch |
| Features | Full Complement Bearing; Double Heat-Treated Steel Pinion Journal |
| Finish Description | Aluminum Painted |
| Finish Family | Aluminum |
| Function | HEDA-Hold Open Extra Duty Arm |
| Function Family | Hold Open Door Closer |
| General Color Family | Metallics |
| General Material | Steel |
| Grade | ANSI/BHMA Grade 1 |
| Hand | Right Hand |
| Handing | RH |
| Hardware Finish Family | Metal |
| Hold Open | With Hold Open |
| Included Components | Patented Green Dial Spring Force Indicator |
| Manufacturer Parent | Allegion |
| Manufacturer Warranty | 30 Year Warranty |
| Maximum Door Opening | 110? |
| Maximum Door Range (deg.) | 110 |
| Mount, Mounting Location, Mounting Type | Push Side |
| Mounting | Top Mount |
| Mounting Hole Size | 2-1/2" x 6" |
| Mounting Style | Parallel Arm |
| Pack Size, Package Qty | 1 |
| Package Volume | 0 |
| Product Depth (in.) | 4.5 |
| Product Height | 3-1/2 Inch |
| Product Height (in.) | 16 |
| Product Length | 12-1/4 Inch |
| Product Material | Cast Iron |
| Product Type | Door Closer/Holder/Stop |
| Product Width | 2-1/4 Inch |
| Product Width (in.) | 6 |
| ProductType | Automatic |
| Special Marks | Complies with ADA accessibility guidelines |
| Spring Size | 1-5 |
| Standards | Grade 1 - ANSI A156.4, UL 10C, 100 Hour Salt Spray, Meets BAA - Buy American Act |
| Sub-Series | DC_Surface Mounted Closers_lcn_24 |
| Templating | Peel-n-Stick |
| Type | Surface |
| UNSPSC | 30171514 |
| Warranty | 30 year |
