Leeson 100110.00

B00EPKP9MK

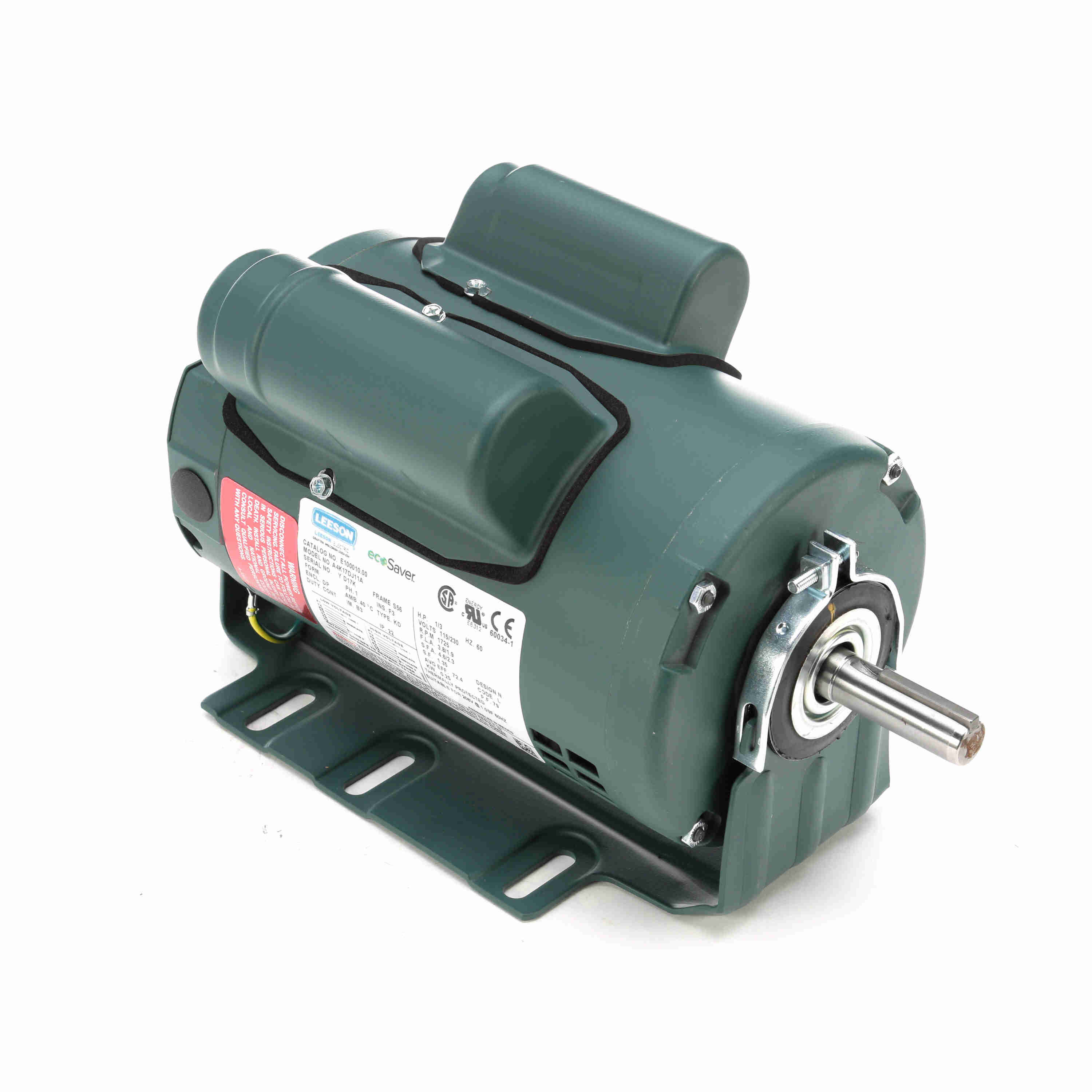

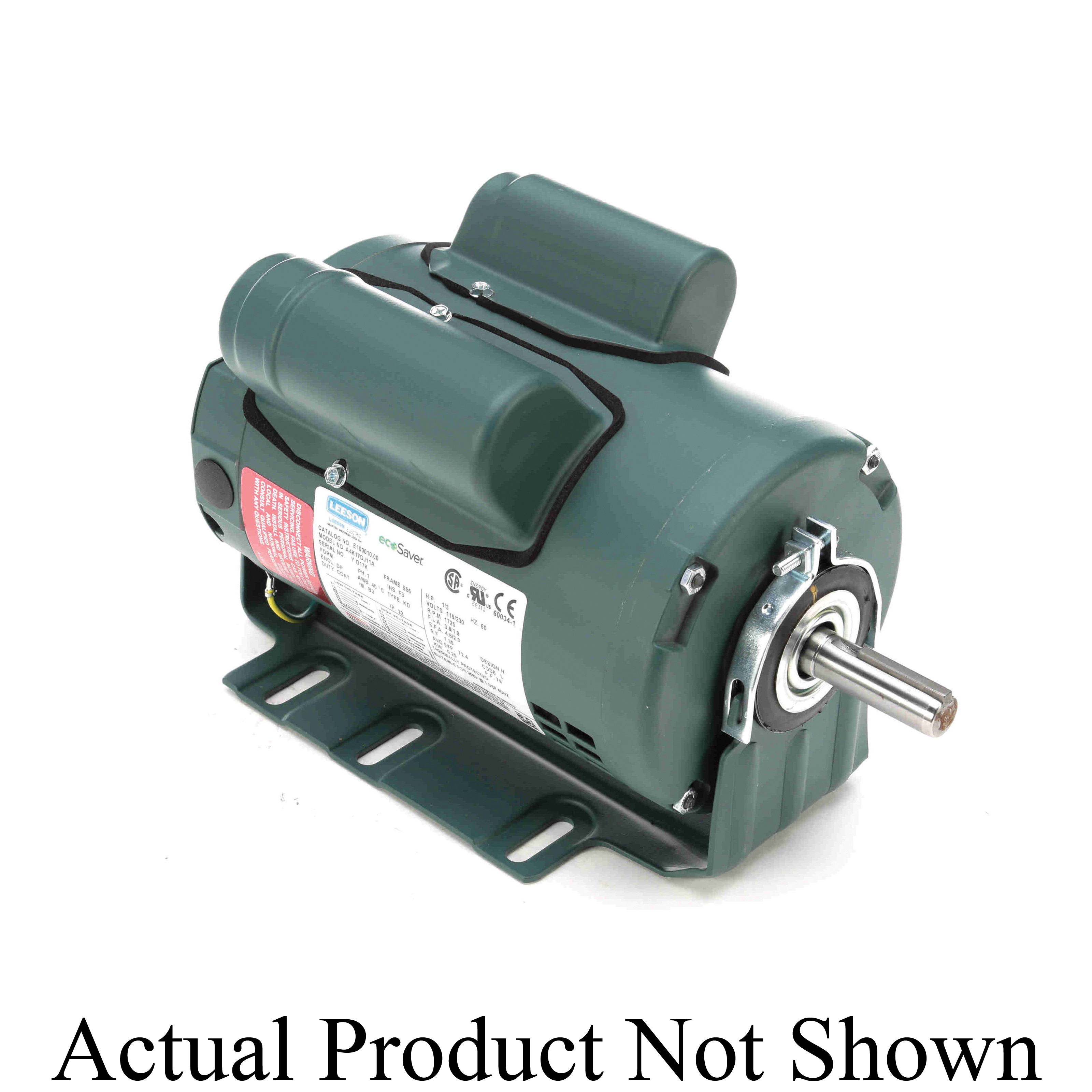

Leeson 100110.00 General Purpose Rigid ODP Motor, 1 Phase, 48 Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 100110.00 General Purpose Rigid ODP Motor, 1 Phase, 48 Frame, Rigid Mounting, 1/3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.A4C17DR2F
Amperage Rating6.6/2.9 to 3.3 A
Application TypeFan and Blower Motors, .
ApprovalsCSA, UL
Bearing TypeBall
Class/GroupA4C17DR2
CompositionSteel
Current Rating6.6 ; 2.9 to 3.3 A
Description:Replaced by 048C17D2044.
Dimensions5.62 in Dia x 9.89 in L.
Duty CycleContinuous
Efficiency61 %
EnclosureDrip Proof
Enclosure TypeDrip Proof, DP
Family SeriesLeeson Motors, General .
Frame48
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower1/3 hp, 0.33 hp
Horsepower Rating0.33 hp
Insulation ClassClass B
Insulation TypeClass B
Item Number100110.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number100110.00
MaterialRolled Steel
MFG Part #:100110.00
Model NumberA4C17DR2
Mounting TypeResilient Base
NEMA Frame48
Net Weight18 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Overall Length9.89 "
Overload ProtectionAutomatic
Phase1, 1 Phase, 1 ph
Product SeriesGeneral Purpose
RotationSelective CCW
RPM1725 RPM, 1,800 RPM
Service Factor1.35
Shaft DiameterUL;CSA
Shaft Size1/2 in Dia x 1-1/2 in L
Special FeaturesService Factor - 1.35, .
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC Code691720004562
UPC:691720004562

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEE 100110.0087.161In StockLEESON ELECTRIC CORPORATION87.16 @ 1
thumbzoomGalco100110.00-LEES91.851In StockLeeson18.091.85 @ 1
us.rs-online.com7223913193.281In StockLeeson93.28 @ 1
thumbzoomPurvis100110LEE335.241In StockLEESON335.24 @ 1
thumbzoomRaptor SuppliesAJ2PHA630.3641761In StockLEESON630.364176 @ 1
