Leeson Electric 102020.00

B0773T7QGG

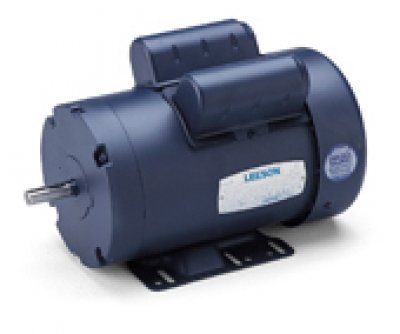

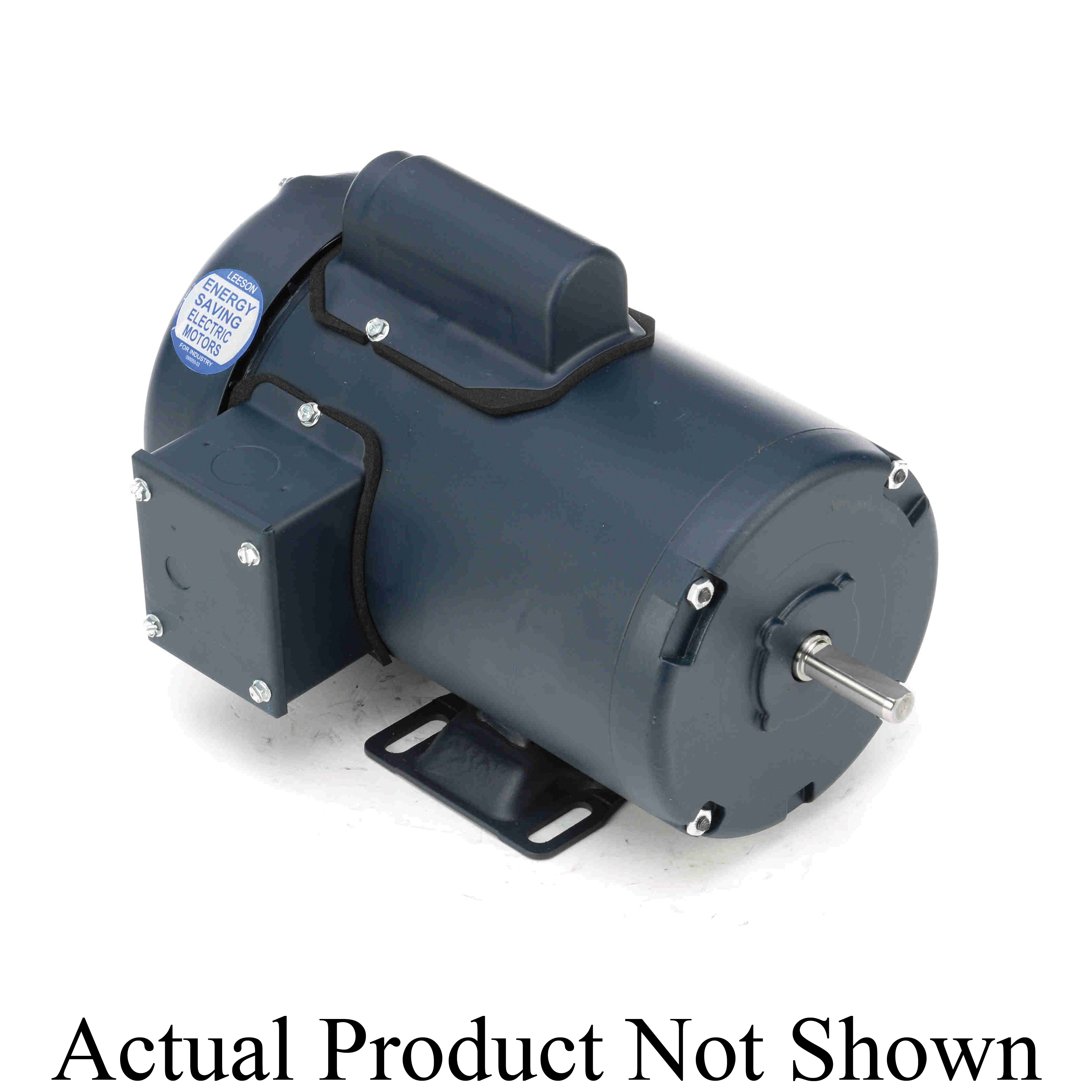

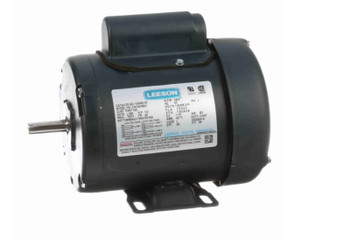

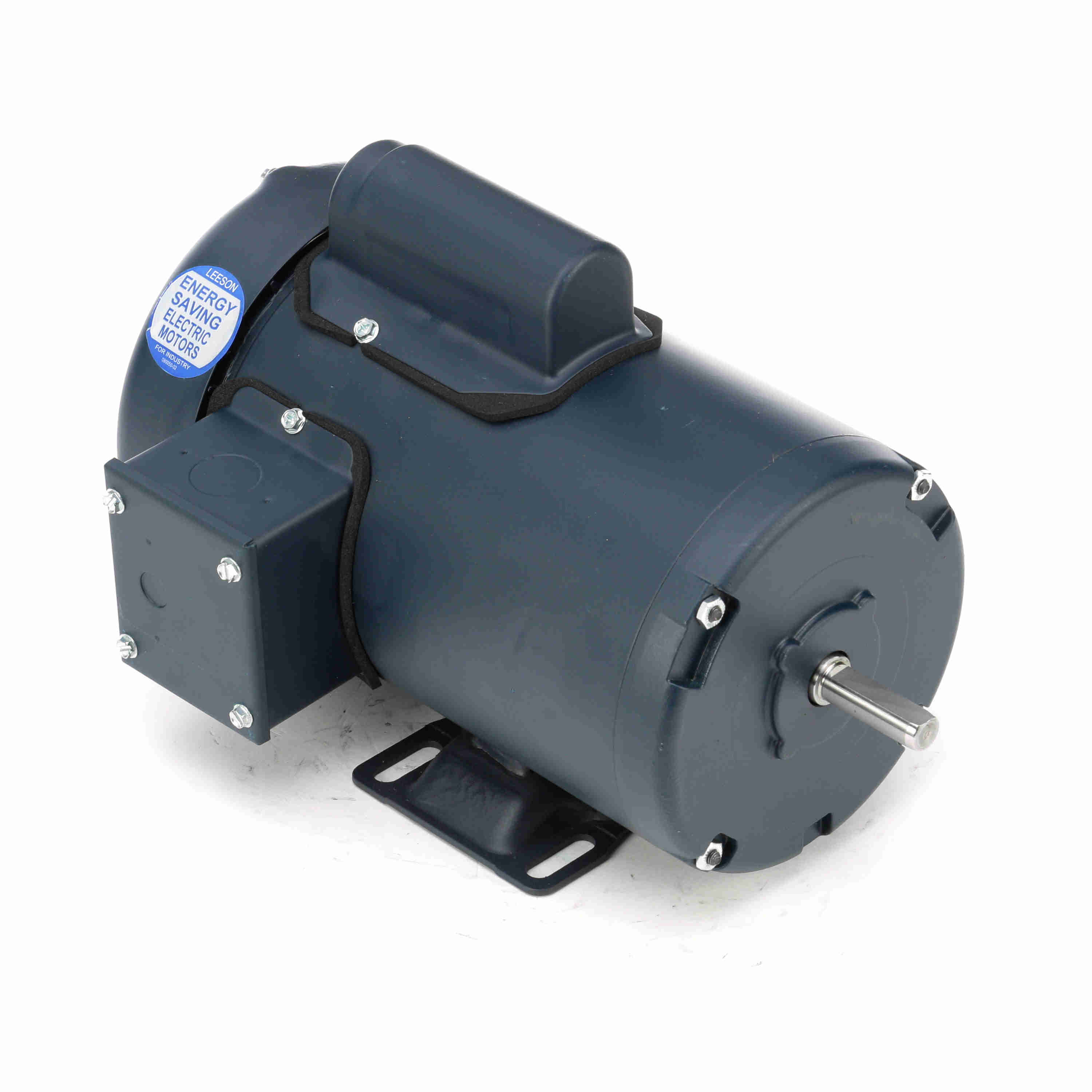

Leeson Electric, 102020.00, .5HP, 3450RPM, 1PH, 115V;208V;230V, 48 Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, 102020.00, .5HP, 3450RPM, 1PH, 115V;208V;230V, 48 Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.C4C34FB9C
Amperage Rating7/3.4 to 3.5 A
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupC4C34FB9
CompositionSteel
ConstructionRolled Steel
Current Rating7.0 ; 3.4 to 3.5 A
Description:1/2HP..3450RPM.48.TEFC..
Dimensions9.31 in L x 7.34 in H
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency66 %, 66
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight27.00
Family SeriesLeeson Motors, General .
FL Amps7/3.4-3.5
FL Efficiency66
Frame48
Frame MaterialRolled Steel
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower0.5 hp, 1/2 hp
Horsepower Rating0.50 HP
HP0.50, 0.5, 1/2
Hz60
Ins. ClassB
Insulation ClassB, Class B
Insulation TypeClass B
ItemGeneral Purpose Motor
Item ConditionFACTORY NEW
Item Number102020.00
KW0.37
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number102020.00
MaterialRolled Steel
MFG Part #:102020.00
Model NumberC4C34FB9
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Thermal ProtectionNone
Motor TypeCapacitor Start
MountingFoot Mount
mountingRigid Base
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame48
Net Weight27 lbs
No. of Speeds1
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length9.31 "
Overload ProtectionNone
Part Number102020.00
Phase1, 1 Phase, 1 ph
Product SeriesGeneral Purpose
Product TypeGeneral Purpose
RotationSelective CCW
RPM3450 RPM, 3600, 3400 - .
Service Factor1.15
Shaft Diameter0.500, UL;CSA
Shaft Length1.5
Shaft Size1/2 in Dia x 1-1/2 in L
Special FeaturesService Factor - 1.15, .
Speed (RPM)3450
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC Code691720006184
UPC:691720006184
Usable @ 208VYes
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230
Weight19 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com102020213.01In StockLEESON213.0 @ 1
AmazonTPB00EPKF2U4231.181In Stock2Leeson231.18 @ 1
thumbzoomZoroG210080981239.991In StockLeeson18.1239.99 @ 1
thumbzoomMRO Supply2525118277.961In StockLeeson277.96 @ 1
thumbzoomcshincorporated.com102020.00294.01In StockLeeson19.0294.0 @ 1
thumbzoomDealers Electric102020.00358.671In StockLeeson19.0358.67 @ 1
thumbzoomPurvis102020LEE380.821In StockLEESON380.82 @ 1
us.rs-online.com72239271392.561In StockLeeson392.56 @ 1
thumbzoommotorsandcontrol.comLE-102020.00393.971102Leeson Electric27.0393.97 @ 1
thumbzoomGalco102020.00-LEES396.951In StockLeeson27.0396.95 @ 1
kscdirect.comLEE 102020.00411.731In StockLEESON ELECTRIC CORPORATION411.73 @ 1
thumbzoomcbtcompany.com102020.00436.451In StockLeeson Electric436.45 @ 1
thumbzoomWalker Industrial102020-00446.51In Stock17Leeson446.5 @ 1
thumbzoompumpproducts.com102020.00534.441In StockLeeson534.44 @ 1
thumbzoomRaptor SuppliesAJ2PMZ543.87011251In StockLEESON543.8701125 @ 1
