Leeson 110308.00

B00EPKYMPK

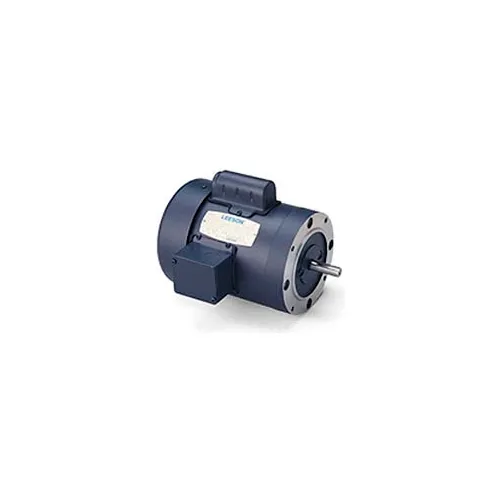

Leeson 110308.00 General Purpose C Face Motor, 1 Phase, 56C Frame, Round Mounting, 3/4HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 110308.00 General Purpose C Face Motor, 1 Phase, 56C Frame, Round Mounting, 3/4HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.A6C17FC8L
Amperage Rating10.8/5.4 A
Amps10.8/5.4
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupA6C17FC8
CompositionSteel
ConstructionRolled Steel
Current Rating10.8 ; 5.4 A
Description:3/4HP..1725RPM.56.TEFC..
Dimensions11.46 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency70.0%, 70 %, 70
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight28.00
Family SeriesLeeson Motors, General .
FL Amps10.8/5.4
FL Efficiency70
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower0.75 HP, 3/4 hp
Horsepower Rating0.75 HP
HP3/4, 0.75
Hz60
Ins. ClassB
Insulation ClassB, Class B
Insulation TypeClass B
ItemGeneral Purpose Motor
Item ConditionFACTORY NEW
Item Number110308.00
KW0.56
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110308.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:110308.00
Model NumberA6C17FC8
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shell Length6.00"
Motor Thermal ProtectionAuto
Motor TypeCapacitor Start
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face Less Base, Round.
NEMA Frame56C
Net Weight28 lbs
No. of Speeds1
Nominal Voltage208 VAC, 240 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length11.46", 11.31 "
Overload ProtectionAutomatic
Part Number110308.00
Phase1, 1 Phase, 1 ph
Product SeriesGeneral Purpose
Product TypeGeneral Purpose, Capaci.
RotationSelective CCW, Reversib.
RPM1725 RPM, 1,800 RPM, 17.
Service Factor1.15
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight31 lbs.
Special FeaturesService Factor - 1.15, .
Speed (RPM)1725
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
Thermal ProtectionAutomatic
TypeCapacitor Start Inducti.
UPC Code691720008416
UPC:691720008416
Usable @ 208VYes
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230
Weight31 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110308325.01In StockLEESON325.0 @ 1
thumbzoomZoroG609880505382.991In StockLeeson31.0382.99 @ 1
AmazonTPB0773TZK5C423.681In Stock3Leeson Electric423.68 @ 1
thumbzoomMRO Supply2525465444.341In StockLeeson444.34 @ 1
thumbzoomapexindustrialautomation.com110308.00476.81113Leeson476.81 @ 1
thumbzoomemotorpro.com110308.00500.811In StockLeeson31.0500.81 @ 1
thumbzoomGlobal IndustrialWBB222336534.01In Stock17Leeson534.0 @ 1
thumbzoomDealers Electric110308.00573.361In StockLeeson31.0573.36 @ 1
us.rs-online.com72239292627.271In StockLeeson627.27 @ 1
thumbzoommotorsandcontrol.comLE-110308.00629.79165Leeson Electric28.0629.79 @ 1
thumbzoomGalco110308.00-LEES634.311In StockLeeson28.0634.31 @ 1
kscdirect.comLEE 110308.00658.181In StockLEESON ELECTRIC CORPORATION658.18 @ 1
kirbyrisk.com2194546680.211In StockLeeson680.21 @ 1
cbtcompany.com110308.00697.71In StockLeeson Electric697.7 @ 1
thumbzoomWalker Industrial110308-00713.771In Stock10Leeson713.77 @ 1
thumbzoompumpproducts.com110308.00854.341In StockLeeson854.34 @ 1
