Leeson 112547.00

B00EPKSC56

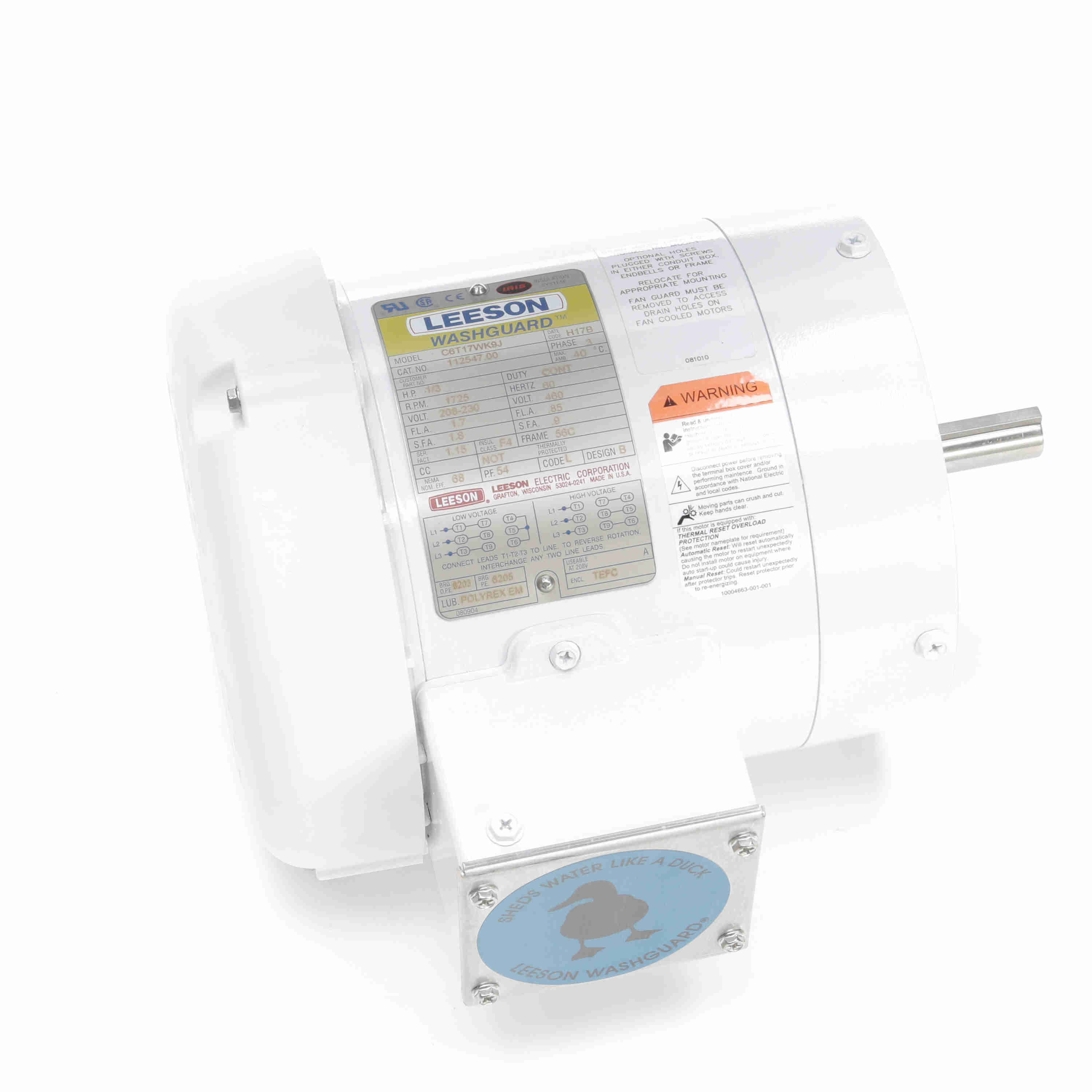

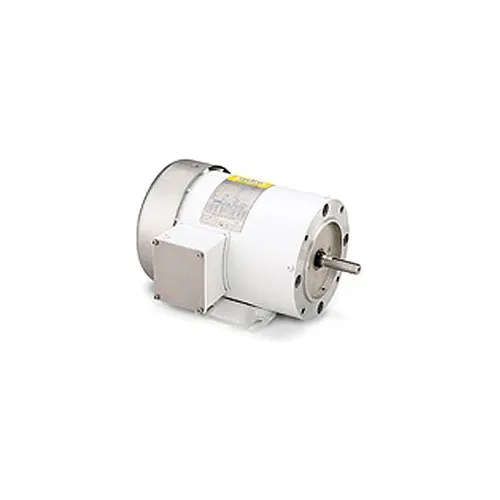

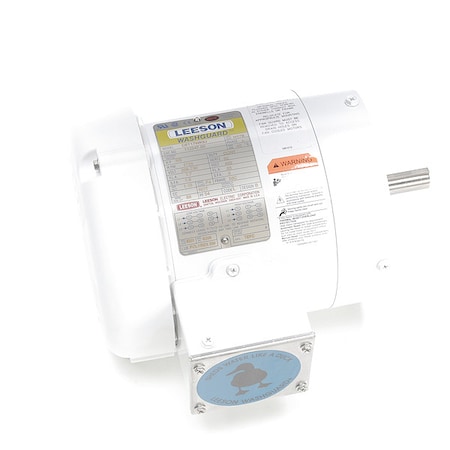

Leeson 112547.00 White Epoxy Painted Washguard Motor, 3 Phase, 56C Frame, Rigid Mounting, 1/3HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 112547.00 White Epoxy Painted Washguard Motor, 3 Phase, 56C Frame, Rigid Mounting, 1/3HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6T17WK9J
Amperage Rating1.5 to 1.7/0.85 A
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall, 10.69
Body Dia.7.3 in
Bolt Circle Dia.5 7/8 in
CategoryElectric Motor
Class/GroupC6T17WK9
CompositionSteel
ConstructionRolled Steel
CT Speed Range10:1
Current Rating1.5 to 1.7 ; 0.85 A
Description:1/3HP..1725RPM.56.TEFC..
Dimensions10.37 in L x 7.3 in H
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency68, 68 %
Efficiency %68 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight22.00
Family SeriesLeeson Motors, Washguar.
FinishUnfinished
FL Amps1.7/.85
FL Efficiency68
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED, WASHDOWN
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1/3 hp, 0.33 hp
Horsepower Rating0.33 hp
HP1/3, 0.33
Hz60
Insulation ClassClass F, F
Insulation TypeClass F
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number112547.00
KW0.25
Length Less Shaft8 7/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number112547.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
MFG Part #:112547.00
Model NumberC6T17WK9
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialRolled Steel
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionManual
mountingC-face w/ rigid base
MountingFoot Mount
Mounting TypeC-Face Footed, Rigid ba.
Nameplate RPM1,725
NEMA Frame56C
Net Weight22 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10 3/8 in, 10.69 "
Part Number112547.00
Phase3 Phase, 3, Three, 3 ph
Product SeriesWashguard
Product TypeWashdown Duty
RotationReversible
RPM1725 rpm, 1,800 RPM, 17.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625, UL;CSA
Shaft Length1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesService Factor - 1.15
Speed1725 rpm
Speed (RPM)1725
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720010990
UPC:691720010990
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC, 208-23.
Volts208/230/460
Weight25 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com112547322.01In StockLEESON322.0 @ 1
AmazonTPB0773TW8FK373.31In Stock3Leeson Electric373.3 @ 1
thumbzoomZoroG400722974465.9911Leeson20.5465.99 @ 1
thumbzoomMRO Supply2525640484.161In StockLeeson484.16 @ 1
kscdirect.comLEE 112547.00566.271In StockLEESON ELECTRIC CORPORATION566.27 @ 1
thumbzoomDealers Electric112547.00624.751In StockLeeson25.0624.75 @ 1
thumbzoomWalker Industrial112547-00646.421In Stock10Leeson646.42 @ 1
us.rs-online.com72239553683.951In StockLeeson683.95 @ 1
thumbzoommotorsandcontrol.comLE-112547.00686.23133Leeson Electric22.0686.23 @ 1
thumbzoomGalco112547.00-LEES691.61In StockLeeson22.0691.6 @ 1
thumbzoomGlobal IndustrialWBB228132839.02In StockLeeson839.0 @ 2
thumbzoompumpproducts.com112547.00930.91In StockLeeson930.9 @ 1
thumbzoomRaptor SuppliesAJ2QHW1042.18586551In StockLEESON1042.1858655 @ 1
