Leeson 113586

B00BC94ZSQ

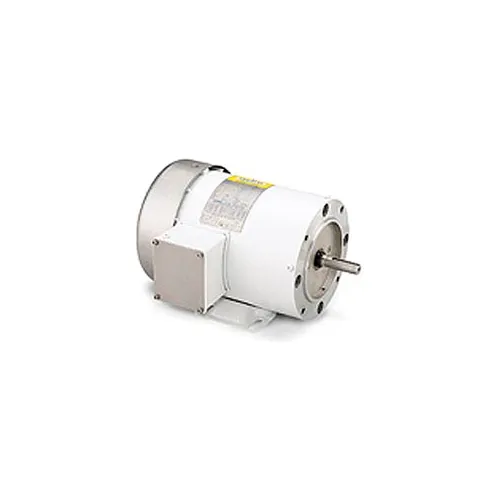

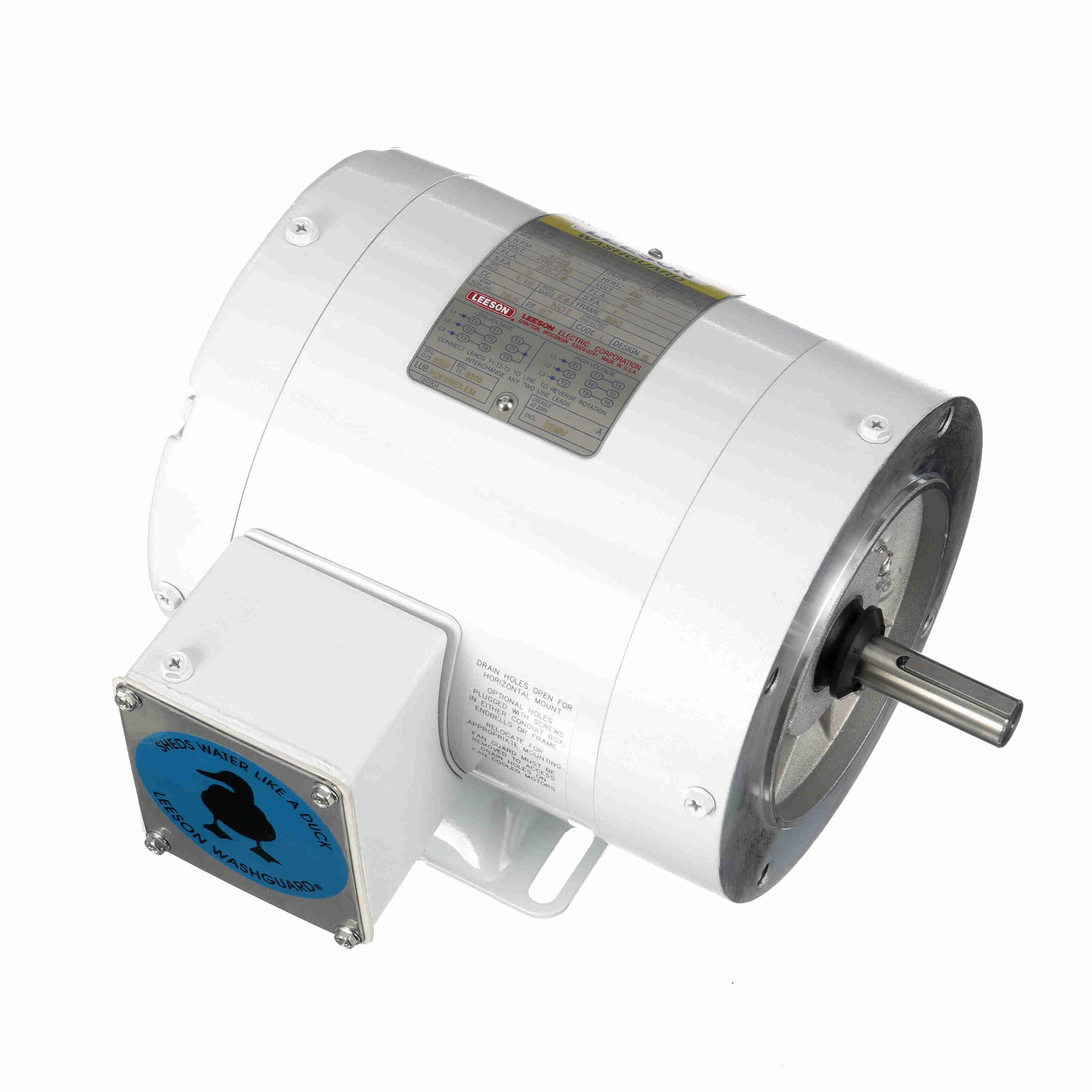

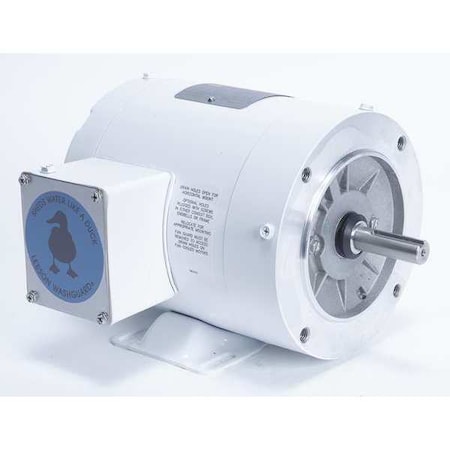

Leeson 113586.00 HP: 1/2 RPM: 1725 FRAME: 56C VOLTAGE:

Leeson 113586.00 HP: 1/2 RPM: 1725 FRAME: 56C VOLTAGE:zoom

Attributes

Key Value
Alternate Mfr Part Numb.C6T17VK2G
Amperage Rating2 to 1.8/0.9 A
Amps2.0-1.8/0.90
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall, 10.06
BearingsBall
Body Dia.6.5 in
Bolt Circle Dia.5 7/8 in
BrandLeeson
CategoryElectric Motor
Class/GroupC6T17VK2
CompositionSteel
ConstructionRolled Steel
CT Speed Range1000:1
Current Rating2.0 to 1.8 ; 0.90 A
Current Stock22
Description:1/2HP..1725RPM.56.TENV..
Dimensions10.08 in L x 6.77 in H
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency78.5, 78.5%, 78.5 %
Efficiency %78.5 %
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialRolled Steel
Enclosure TypeTENV (Totally Enclosed .
Estimated Weight23.00
Family SeriesLeeson Motors, Washguar.
FL Amps2.0-1.8/.9
FL Efficiency78.5
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED, Washdown
Frequency60, 60 Hz
Frequency Rating60 Hz
Full Load Amps1.80
Gross Weight0 lbs
Hertz60
Horsepower0.5 hp, 1/2 hp
Horsepower Rating0.50 HP
HP0.50, 0.5, 1/2
Hz60
Insulation ClassClass F, F
Insulation TypeClass F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number113586.00
KW0.37
Lead TimeExpected to ship in 1-2.
Length Less Shaft8 1/8 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113586.00
Manufacturers Warranty .1 yr
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:113586.00
Model NumberC6T17VK2
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonven.
Motor Frame MaterialSteel
Motor Mounting TypeFace/Base
Motor Shaft RotationCCW, CW
Motor Shell Length5.00"
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base, Rigi.
Mpn113586.00
Nameplate RPM1,725
NEMA Frame56C
Net Weight23 lbs
Nominal Efficiency78.5 %
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length10.08", 10.06 ", 10 1/1.
Part Number113586.00
Phase3 ph, 3, Three, 3 Phase
Product SeriesWashguard
Product TypeWashdown Duty, Three Ph.
RotationReversible
RPM1725 RPM, 1,800 RPM, 17.
RPM Range1,701-1,800
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88, 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight25 lbs.
SKUZO-G4609160
Special FeaturesService Factor - 1.15
Speed1725 RPM
Speed (RPM)1725
StandardsUL Recognized
SubCategoryMotors/Ac Motors
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC691720012116
UPC Code691720012116
UPC:691720012116
Voltage208-230/460V AC, 208-23.
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com113586329.01In StockLEESON329.0 @ 1
AmazonTPB0773VH6WW381.441In Stock3Leeson Electric381.44 @ 1
thumbzoomMRO Supply2525683448.21In StockLeeson448.2 @ 1
thumbzoomZoroG4609160460.99127Leeson25.2460.99 @ 1
thumbzoomemotorpro.com113586.00476.81In StockLeeson25.0476.8 @ 1
thumbzoomDealers Electric113586.00515.811In StockLeeson30.0515.81 @ 1
thumbzoomGlobal IndustrialWBB228198539.01In StockLeeson539.0 @ 1
thumbzoomsimsupply.comZO-G4609160550.35122Leeson550.35 @ 1
thumbzoommotorsandcontrol.comLE-113586.00551.67197Leeson Electric23.0551.67 @ 1
thumbzoomGalco113586.00-LEES556.01In StockLeeson23.0556.0 @ 1
us.rs-online.com72239557564.681In StockLeeson564.68 @ 1
thumbzoomAutomation Direct113586.00577.016Leeson25.0577.0 @ 1
kscdirect.comLEE 113586.00578.081In StockLEESON ELECTRIC CORPORATION578.08 @ 1
thumbzoomWalker Industrial113586-00659.91In Stock17Leeson659.9 @ 1
cbtcompany.com113586.00667.351In StockLeeson Electric667.35 @ 1
thumbzoomRaptor SuppliesAJ2QKG905.93620651In StockLEESON905.9362065 @ 1
thumbzoompumpproducts.com113586.00943.791In StockLeeson943.79 @ 1
