Attributes
| Key ^ | Value |
|---|---|
| Application | General Purpose |
| Bolt Circle Dia. | 5 7/8 in |
| Frame | 56C |
| Frame Material | Rolled steel |
| HP | 3/4 |

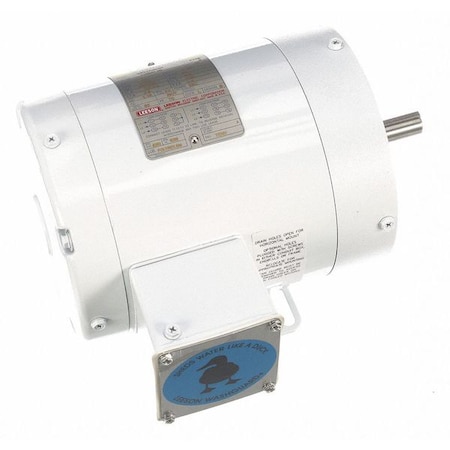

| Item | Washdown Motor |
| Length Less Shaft | 8 5/8 in |
| Manufacturers Warranty Length | 1 yr |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Shaft Rotation | CCW, CW |
| Motor Thermal Protection | None |
| Nominal Efficiency | 80 % |
| Overall Length | 10 9/16 in |
| Phase | Three |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Voltage | 208-230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC |
