Leeson 114888

mpn114888.00
brandname: Leeson
manufacturername: Leeson

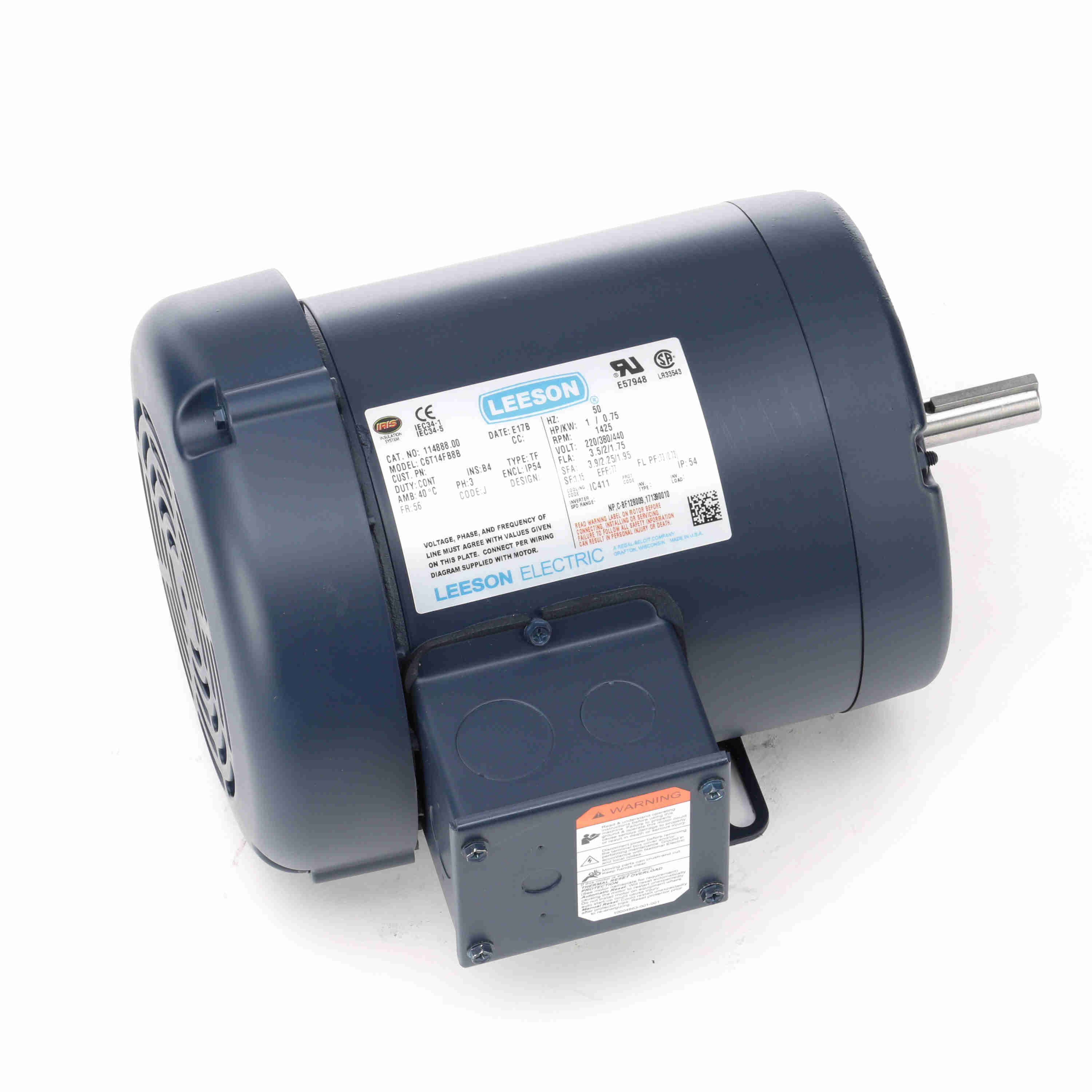

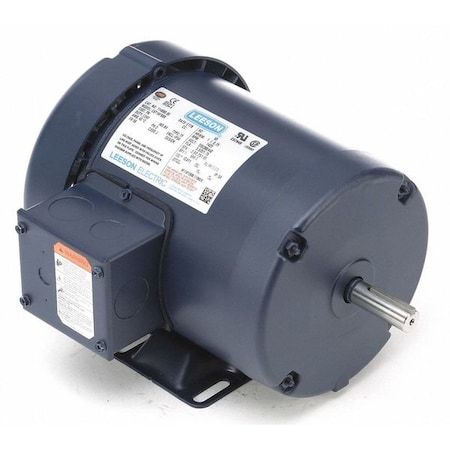

Leeson 114888.00 Motor 1HP 1425RPM 220/380/440V 3PH 5/8"OD

Brand: Leeson
PartNumber: 114888
Manufacturer: Leeson
Label: Leeson

Attributes

Key	Value
Ambient Temperature	40 Degrees C
Amperage Rating	3.5/2/1.75 A
Application Type	Compressor Motors, Fan .
Approvals	CSA, UL
Bearing Type	Ball
Brand	Leeson
Category	Electric Motor
Class/Group	C6T14FB8
Composition	Steel
Construction	Rolled Steel
Current Stock	9
Description:	1HP..75kW.1425RPM.56.IP.
Dimensions	10.98 in L
Drive End Bearing Size	6203
Drive End Bearing Type	Ball
Drive End Flange Type	Standard
Duty Cycle	Continuous
Efficiency	77
Enclosure	TEFC, Totally Enclosed .
Enclosure Type	Totally Enclosed Fan Co.
Estimated Weight	28.00
Family Series	Leeson Motors, Special .
FL Amps	3.5/2/1.75
FL Efficiency	77
Frame	56
Frame Material	Rolled Steel
Frequency	50
Frequency Rating	50 Hz
Full Load Amps	3.5/2.0/1.75, 3.5/2.00/.
Full Load Amps @ 50Hz	3.5/2.00/1.75
Gross Weight	0 lbs
Hertz	50
Horsepower	1 hp
HP	1
HP @ 50Hz	1
Hz	50
Ins. Class	B
Insulation Class	B, Class B
International Shipping	No
Item	50 Hz Motor
Item Condition	FACTORY NEW
Item Number	114888.00
Kilowatts	0.75 kW
KW	0.75
Lead Time	Expected to ship in 1-2.
Length Less Shaft	9 3/16 in, 9-3/16"
Manufacturer	Leeson Electric, LEESON.
Manufacturer Part Number	114888.00
Material	Rolled Steel
Max. Ambient Temp.	40 Degrees C
MFG Part #:	114888.00
Model Number	C6T14FB8
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Totally Enclosed Fan-Co.
Motor Frame Material	Steel
Motor Mounting Position	All Angle
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Mounting	Foot Mount
mounting	Rigid Base
Mounting Type	Foot Mount, Rigid, Rigi.
Mpn	114888.00
Nameplate RPM	1,425
NEMA Design	B
NEMA Frame	56
Net Weight	28 lbs
No. of Speeds	1
Nominal Efficiency	77 %
Nominal Voltage	208 VAC, 240 VAC, 480 V.
Number of Poles	4
Number of Speeds	1
Opp. Drive End Bearing .	6203
Opp. Drive End Bearing .	Ball
Overall Length	11 in, 11-1/16", 11.31 "
Part Number	114888.00
Phase	1, 3, Three, 3 ph
Product Series	Special Voltage
Product Type	General Purpose
Rotation	Reversible
RPM	1500, 1425, 1,500 RPM
RPM Range	1,401-1,500
Service Factor	1.15
Shaft Dia.	5/8 in, 5/8"
Shaft Diameter	0.625, UL;CSA
Shaft Length	1.88, 1-7/8", 1 7/8 in
Shaft Size	0.63 in Dia x 1.88 in L
SKU	ZO-G0652531
Speed	1425 rpm
Speed (RPM)	1425
Standards	CE Certified, CSA Certi.
SubCategory	Motors
Supplier:	LEESON ELECTRIC CORPORA.
UPC	691720014271
UPC:	691720014271
Usable @ 200V	No
Usable @ 208V	No
Voltage	220/380/440, 220/380/44.
Voltage Compatibility	220/380/440V AC
Volts	220/380/440
Weight	31 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
AmazonTP	B00EP2UO1O	418.44	1	In Stock	3	Leeson		418.44 @ 1
Zoro	G0652531	429.99	1	26		Leeson	27.45	429.99 @ 1
MRO Supply	2525869	492.96	1	In Stock		Leeson		492.96 @ 1
simsupply.com	ZO-G0652531	508.94	1	9		Leeson		508.94 @ 1
Dealers Electric	114888.00	615.58	1	In Stock		Leeson	31.0	615.58 @ 1
grainger.ca	WWG4GUT8	660.78829852	1	In Stock		LEESON	27.45	660.78829852 @ 1
us.rs-online.com	73397319	663.15	1	In Stock		Leeson		663.15 @ 1
motorsandcontrol.com	LE-114888.00	676.18	1	24		Leeson Electric	28.0	676.18 @ 1
Galco	114888.00-LEES	681.08	1	In Stock		Leeson	28.0	681.08 @ 1
Walker Industrial	114888-00	766.33	60	In Stock	17	Leeson		766.33 @ 60
kscdirect.com	LEE 114888.00	830.32	1	In Stock		LEESON ELECTRIC CORPORATION		830.32 @ 1
Raptor Supplies	AD7WGT	947.356371	1	In Stock		LEESON		947.356371 @ 1
