Leeson 131545.00

B00EP3GBAQ

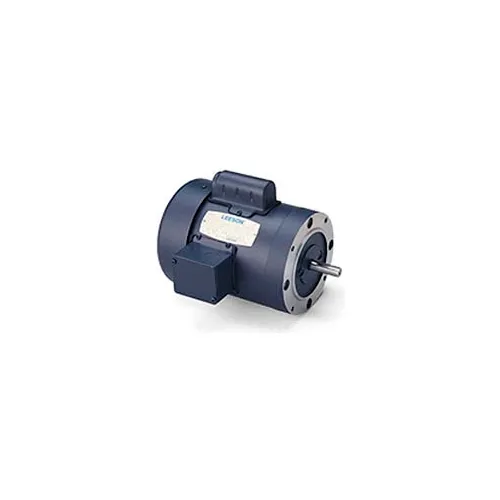

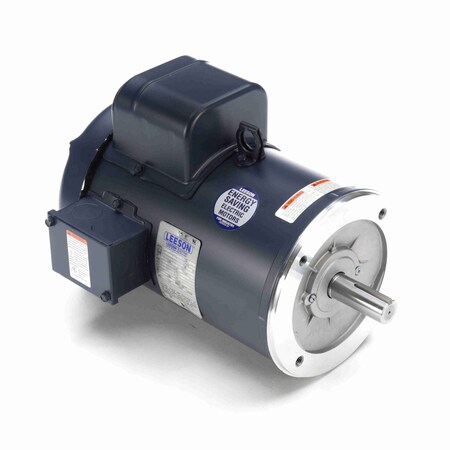

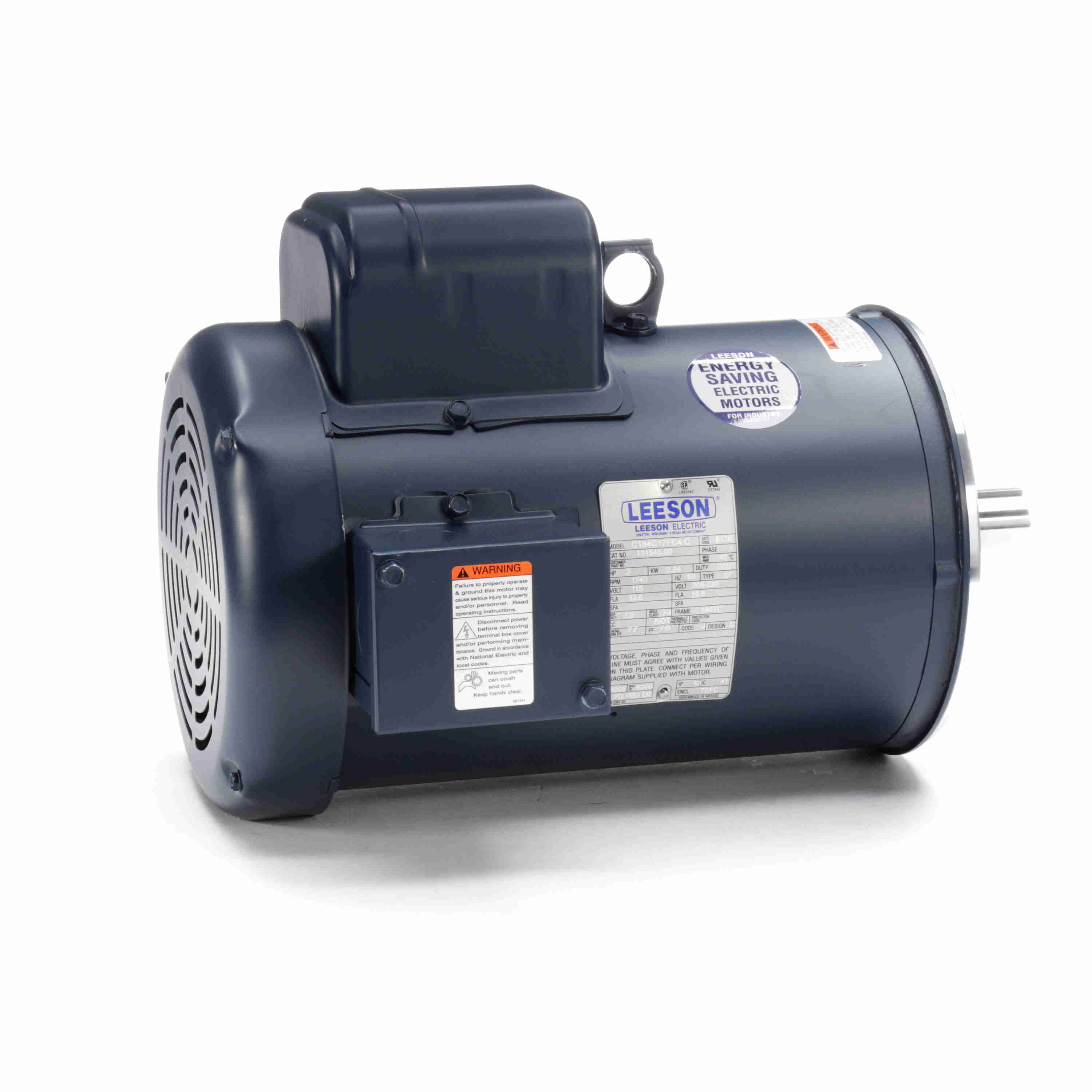

Leeson 131545.00 General Purpose C Face Motor, 1 Phase, 184TC Frame, Round Mounting, 3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 131545.00 General Purpose C Face Motor, 1 Phase, 184TC Frame, Round Mounting, 3HP, 1800 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Amperage Rating33.6/18 to 16.8 A
Amps33.6/18.0-16.8
Application TypeCompressor Motors, Fan .
Bearing TypeBall
BearingsBall
CategoryElectric Motor
ConstructionRolled Steel
Description:3HP..1740RPM.184.TEFC.1.
Dimensions16.47 in L
Drive End Bearing Size6206
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency77, 77.0%
EnclosureTEFC
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight82.00
FL Amps33.6/16.8
FL Efficiency77
Frame184TC
Frame MaterialRolled Steel
Frame RemarksFootless
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower3 hp
HP3
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
KW2.2
ManufacturerLeeson Electric, LEESON.
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:131545.00
Motor Shell Length11.00"
MountingRound, Footless
mountingC-face (NO base)
Mounting TypeRound/C-Face/Footless
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6205
Opp. Drive End Bearing .Ball
Overall Length16.47"
Part Number131545.00
Phase1, 1 ph
Product TypeGeneral Purpose, Capaci.
RotationSelective CCW, Reversib.
RPM1700 - 1800, 1740, 1800
Service Factor1, 1.0
Shaft Diameter1.125, 1.125"
Shaft Length2.75, 2.75"
Shaft Size1.13 in Dia x 2.75 in L
Ship Weight85 lbs.
Special FeaturesCapacitor Start Motors
Speed (RPM)1740
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720017937
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply25264231078.711In StockLeeson1078.71 @ 1
AmazonTPB0773SK6F21105.121In Stock3Leeson Electric1105.12 @ 1
thumbzoomemotorpro.com131545.001388.181In StockLeeson85.01388.18 @ 1
thumbzoomGlobal IndustrialWBB2219071415.01In Stock17Leeson1415.0 @ 1
thumbzoomZoroG24980421493.0411Leeson1493.04 @ 1
thumbzoommotorsandcontrol.comLE-131545.001528.94167Leeson Electric82.01528.94 @ 1
us.rs-online.com733974281557.421In StockLeeson1557.42 @ 1
thumbzoomDealers Electric131545.001566.9419Leeson85.01566.94 @ 1
thumbzoomGalco131545.00-LEES1599.511In StockLeeson1599.51 @ 1
thumbzoomWalker Industrial131545-001732.81In Stock10Leeson1732.8 @ 1
kscdirect.comLEE 131545.001877.481In StockLEESON ELECTRIC CORPORATION1877.48 @ 1
thumbzoompumpproducts.com131545.001978.341In StockLeeson1978.34 @ 1
thumbzoomRaptor SuppliesAJ2RTJ2127.37853251In StockLEESON2127.3785325 @ 1
