mpn:
brand:
manufacturer:
MPN:
Description:

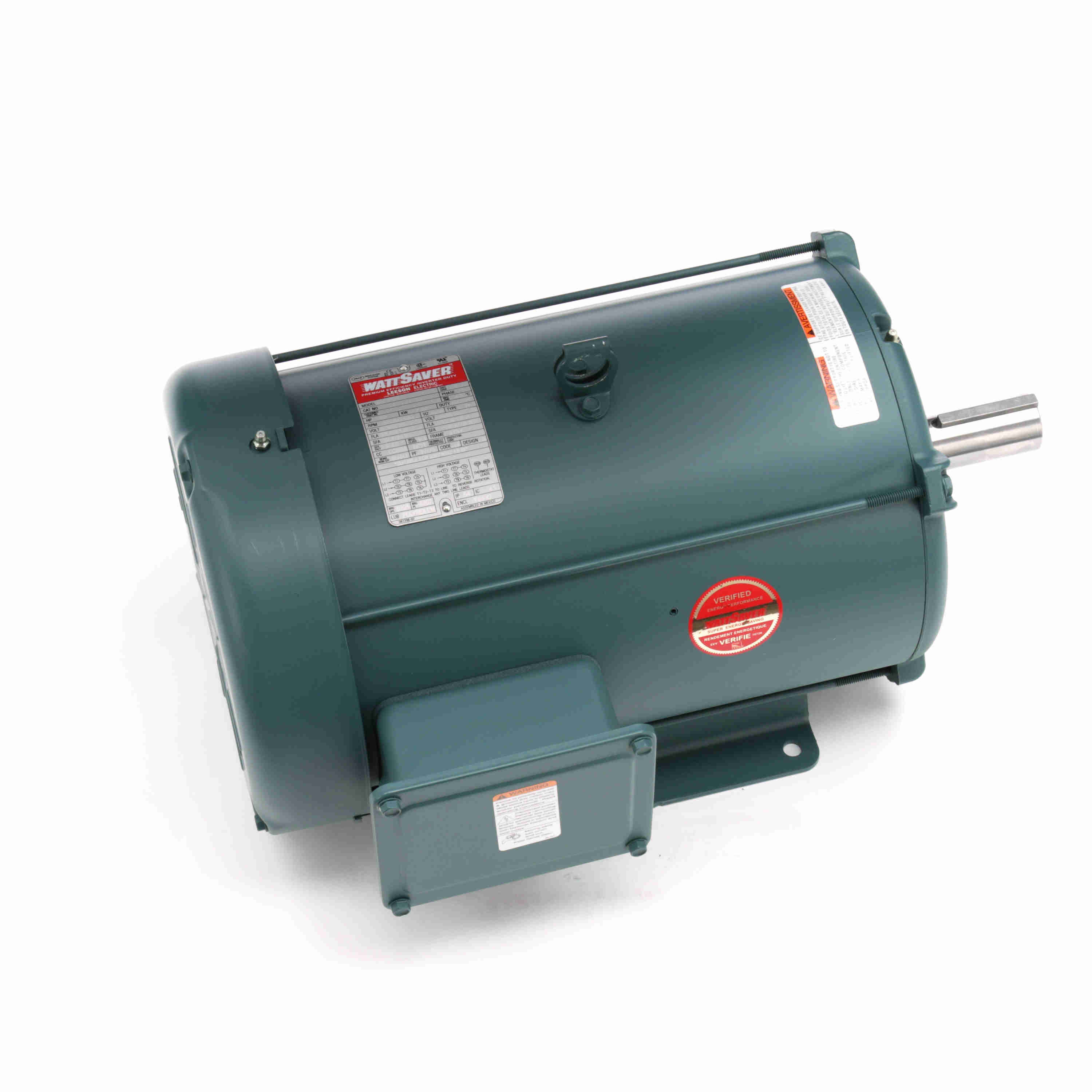

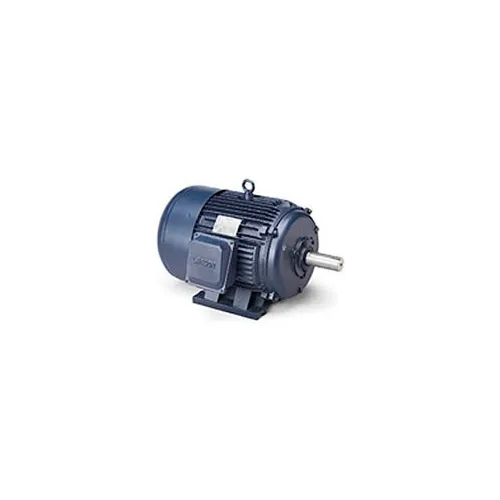

<b>General Purpose, 3-Phase Motor:</b> 10/10HP, 1765/1460 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 215 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 28.8-26.8/13.4&31.2/15.6, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 91.7, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3", Shaft Diameter 1 3/8".<p>Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.<br>Rigid base allows motor to be rigidly mounted on equipment.</p><br><br>Click here to see our full selection of <strong><a href="http://www.globalindustrial.com/c/motors/motors-controls?ref=t/MT/cat" title="Global has a wide selection of Motor Controls and Drives to suit your application" style="font-weight:bold;">Motor Controls and Drives</a>.<BR><BR><table width='100%' style='border: 4px solid #e9e9e9; padding:4px;'><tr><td><span class='feaprodprice'>Compatibility</span></td></tr><tr><td class='body_copy_med' style='border: 1px solid #e9e9e9;' padding:4px;'><b>AO SMITH/MAGNETEK:</b> E354(Leeson motor has steel frame ) </td></tr><tr><td class='body_copy_med' style='border: 1px solid #e9e9e9;' padding:4px;'><b>Baldor:</b> EM3714T | EM3714T</td></tr><tr><td class='body_copy_med' style='border: 1px solid #e9e9e9;' padding:4px;'><b>GRAINGER:</b> 2G703(Leeson motor has steel frame ) | 4FN75(Leeson motor has steel frame ) </td></tr><tr><td class='body_copy_med' style='border: 1px solid #e9e9e9;' padding:4px;'><b>Marathon:</b> E204(Leeson motor has steel frame ) </td></tr></table>
Weight:
161.0
Weight:
161.0 LB
Preferred Price:
1113.31
Price:
1113.31
Min Simple Price:
628.99
Absolute Min Price:
893.16
Min Price:
893.16
Dimensions:
[20.0, 20.0, 20.0]
qty:
21
simpleSku:
MzkwMQ:::140451.00
sku:
MzkwMQ::1X:140451.00@y0
condition:
11
seller:
AmazonTP
amzMan:
leeson electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 35.2 to 32.4/16.2/36.6/18.8 A |
| Application Type | Compressor Motors, Fan & Blower Motors |
| Approvals | CSA, UL |
| Bearing Type | Ball |
| Category | Electric Motor |
| Class/Group, Model Number | C215T17FB18 |
| Composition | Steel |
| CT Speed Range | 10:1 |
| Description: | ..10HP..1765RPM.215T.TEFC.230/460V.3PH.60HZ.CONT.40C.1.25SF.RIGID.C215T17F |
| Dimensions | 19.7 in L |
| Efficiency % | 91.7 % |
| Enclosure | TEFC |
| Enclosure, Enclosure Type | Totally Enclosed Fan Cooled |
| Family Series | Leeson Motors, Three Phase TEFC Series |
| Frame | 210 |
| Frame, NEMA Frame | 215T |
| Frequency Rating | 50/60 Hz |
| Full Load Current | 26.6 A |
| Gross Weight | 0 lbs |
| Horsepower | 10 hp |
| HP | 10 |
| Insulation Class | Class F |
| Item Condition | FACTORY NEW |
| Item Number, Manufacturer Part Number, MFG Part #: | 140451.00 |
| Manufacturer | Leeson |
| Manufacturer, Supplier: | LEESON ELECTRIC CORPORATION |
| Material | Rolled Steel |
| mounting | Rigid Base |
| Mounting Type | Rigid, Foot Mount, Rigid |
| Net Weight | 161 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 19.7 " |
| Phase | 3 |
| Product Series | Three Phase TEFC |
| Rotation | Reversible |
| RPM | 1,800 RPM, 1800 |
| Service Factor | 1.25 |
| Shaft Diameter | UL;CSA |
| Shaft Size | 1-3/8 in Dia |
| Special Features | 4-Pole, B NEMA Design |
| Speed | 1765/1460 rpm |
| Type | General Purpose |
| UPC: | 691720349519 |
| Volts | 230/460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| AmazonTP | B06XDT489X | 628.99 | 628.99 | 1 | In Stock | 2 | Leeson | 628.99 @ Qty: 1+ | ||
 | Global Industrial | WBB222038 | 1315.0 | 1315.0 | 1 | In Stock | 17 | Leeson | 1315.0 @ Qty: 1+ | |
 | Galco | 140451.00-LEES | 1339.73 | 1339.73 | 1 | In Stock | Leeson | 161.0 | 1339.73 @ Qty: 1+ | |
 | Dealers Electric | 140451.00 | 1531.55 | 1531.55 | 1 | In Stock | Leeson | 161.0 | 1531.55 @ Qty: 1+ | |
 | cbtcompany.com | 140451.00 | 1575.54 | 1575.54 | 1 | In Stock | Leeson Electric | 1575.54 @ Qty: 1+ | ||
| kirbyrisk.com | 3000123 | 1595.5 | 1595.5 | 1 | In Stock | Leeson | 1595.5 @ Qty: 1+ | |||
 | Walker Industrial | 140451-00 | 1611.83 | 1611.83 | 1 | In Stock | 17 | Leeson | 1611.83 @ Qty: 1+ | |
| kscdirect.com | LEE 140451.00 | 1746.41 | 1746.41 | 1 | In Stock | LEESON ELECTRIC CORPORATION | 1746.41 @ Qty: 1+ | |||
 | Raptor Supplies | AJ2RYU | 1838.5435575 | 1838.5435575 | 1 | In Stock | LEESON | 1838.5435575 @ Qty: 1+ |
