mpn:
brand:
manufacturer:
MPN:
Description:

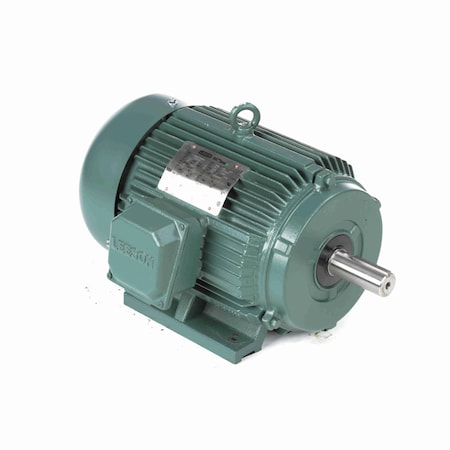

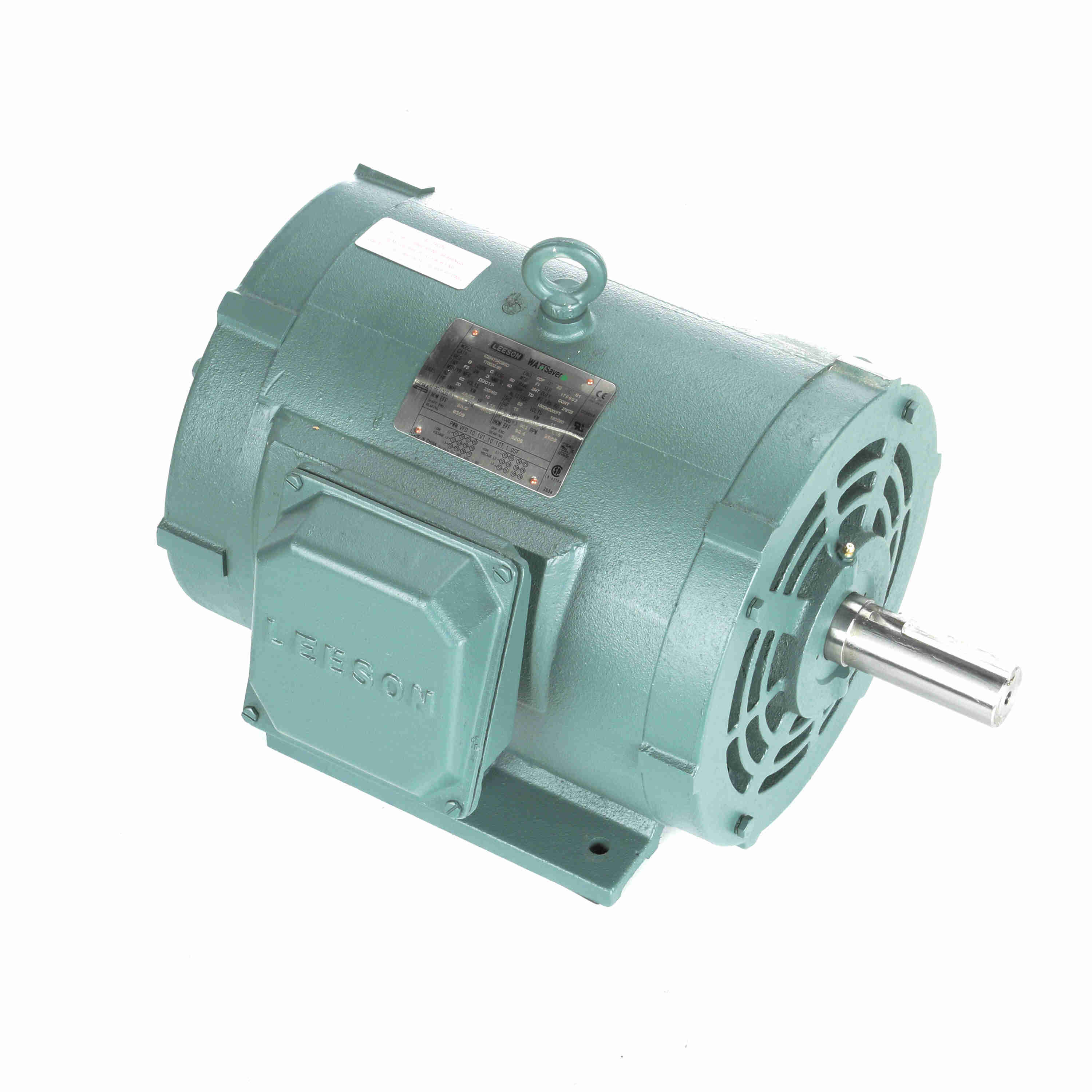

170032.60 20Hp 3550Rpm 254T Dp 208-230/460V 3Ph 60Hz Cont 40C 1.15Sf Rigid C2 54T34Db5D Wattsaver Not - MROSupply.com
Weight:
275.0
Weight:
275.0 LB
Preferred Price:
2599.63
Price:
2599.63
Min Simple Price:
1468.72
Absolute Min Price:
2085.58
Min Price:
2085.58
Dimensions:
[21.0, 21.0, 21.0]
qty:
21
simpleSku:
MzkwMQ:::170032.60
sku:
MzkwMQ::VX:170032.60@y0
condition:
11
seller:
Zoro
amzMan:
leeson electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 50 to 46/23 A |
| Application Type | Compressor Motors, Fan and Blower Motors, General Purpose AC Motors |
| Approvals | CSA, UL |
| Bearing Type | Ball |
| Class/Group, Model Number | C254T34DB5 |
| Composition, Construction, Material | Cast Iron |
| Country of Origin (subject to change) | China |
| CT Speed Range | 10:1 |
| Description: | 20HP..3550RPM.254T.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C254T34DB5D. |
| Dimensions | 20.94 in L x 24.871 in H |
| Drive End Flange Type | Standard |
| Efficiency % | 93 % |
| Enclosure | Open, Drip Proof |
| Enclosure Type | DP |
| Estimated Weight | 275.00 |
| Family Series | Leeson Motors, Three Phase ODP Series |
| FL Amps | 50-46/23&43.2/21.6 |
| FL Efficiency | 93 |
| Frame, NEMA Frame | 254T |
| Frequency Rating | 60 Hz |
| Gross Weight | 0 lbs |
| Hertz | 60 |
| Horsepower | 20 hp |
| HP | 20 |
| Insulation Class | Class F |
| Item Number, Manufacturer Part Number, MFG Part #:, Part Number | 170032.60 |
| Manufacturer | Leeson Electric, Leeson |
| Manufacturer, Supplier: | LEESON ELECTRIC CORPORATION |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount, Rigid, C-Face/Rigid Base |
| Net Weight | 275 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 20.9 " |
| Phase | 3, 3 ph |
| Product Series | Three Phase ODP |
| Product Type | General Purpose |
| Rotation | Reversible |
| RPM | 3,600 RPM |
| Service Factor | 1.15, 1.25 |
| Shaft Diameter | UL;CSA |
| Shaft Size | 1.63 in Dia x 4 in L |
| Speed | 3550 rpm |
| Speed (RPM) | 3550 |
| UPC: | 691720027929 |
| Voltage | 208V, 230V, 460V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G2489091 | 1468.72 | 1468.72 | 1 | In Stock | 10 | Leeson | 1468.72 @ Qty: 1+ | |
| AmazonTP | B06XDKC2TQ | 1793.0 | 1793.0 | 1 | In Stock | 4 | Leeson | 1793.0 @ Qty: 1+ | ||
 | motorsandcontrol.com | LE-170032.60 | 1843.0 | 1843.0 | 1 | In Stock | Leeson Electric | 275.0 | 1843.0 @ Qty: 1+ | |
 | Galco | 170032.60-LEES | 1928.06 | 1928.06 | 1 | In Stock | Leeson | 275.0 | 1928.06 @ Qty: 1+ | |
 | Walker Industrial | 170032-60 | 2088.73 | 2088.73 | 1 | In Stock | 10 | Leeson | 2088.73 @ Qty: 1+ | |
| kscdirect.com | LEE 170032.60 | 2263.13 | 2263.13 | 1 | In Stock | LEESON ELECTRIC CORPORATION | 2263.13 @ Qty: 1+ | |||
 | Raptor Supplies | AJ2TDE | 2476.449846 | 2476.449846 | 1 | In Stock | LEESON | 2476.449846 @ Qty: 1+ |
