Leeson Electric 170097.60

B0773QZG65

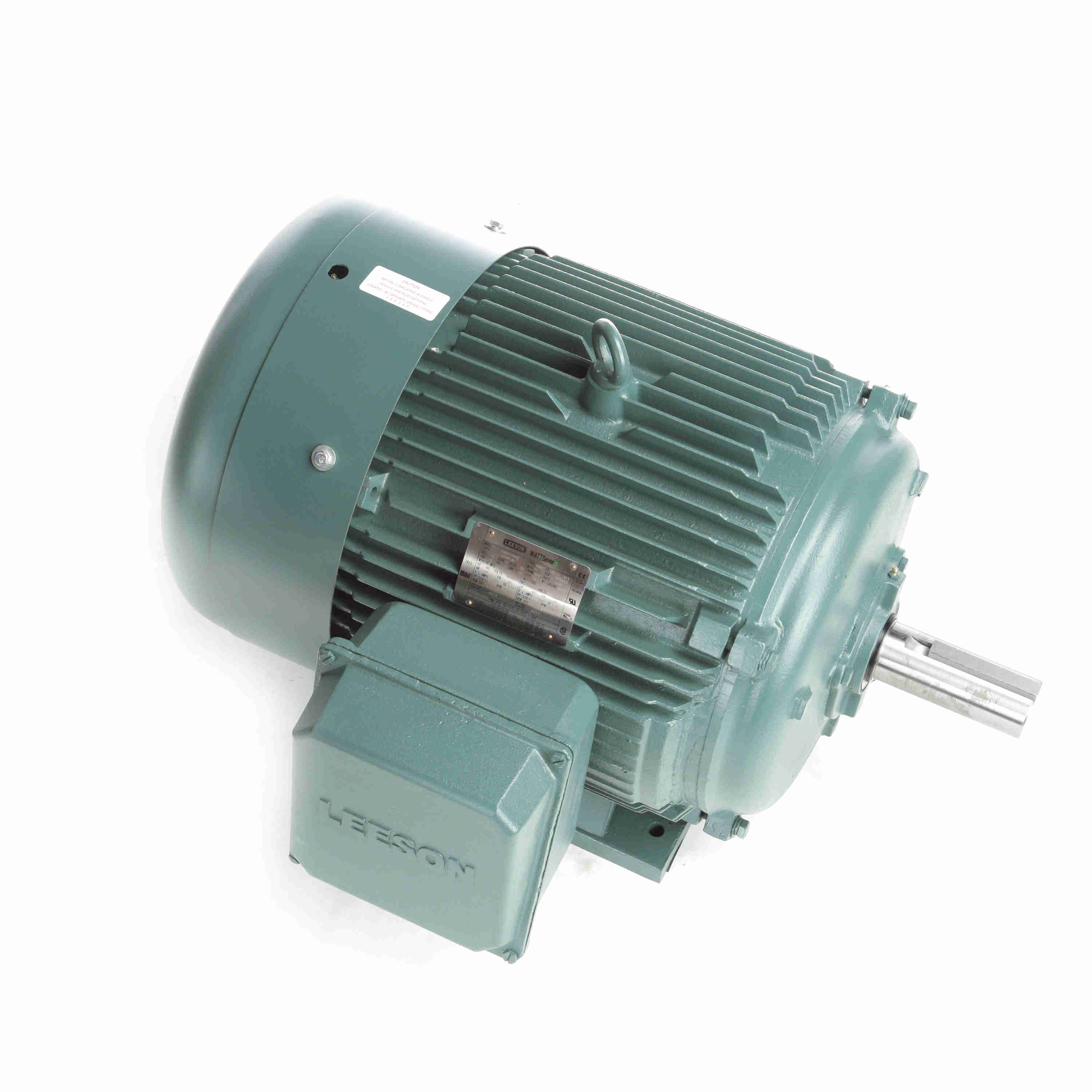

Leeson Electric, 170097.60, 50HP, 1190RPM, 3PH, 208V;230V;460V, 365T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, 170097.60, 50HP, 1190RPM, 3PH, 208V;230V;460V, 365T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating135 to 126/63 A
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
Class/GroupC365T11FB5
CompositionCast Iron
ConstructionCast Iron
Country of Origin (subj.China
CT Speed Range10:1
Description:50HP..1180RPM.365T.TEFC.
Dimensions33.31 in L x 21.46 in H
Drive End Flange TypeStandard
Efficiency %94.1 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight672.00
Family SeriesLeeson Motors, Three Ph.
FL Amps135.0 - 126/63.0&122/61.
FL Efficiency94.1
Frame365T
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz50, 60
Horsepower50 hp
HP50
Insulation ClassClass F
Item Number170097.60
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number170097.60
MaterialCast Iron
MFG Part #:170097.60
Model NumberC365T11FB5
MountingFoot Mount
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame365T
Net Weight672 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles6
Number of Speeds1
Overall Length33.62 "
Part Number170097.60
Phase3, 3 ph
Product SeriesThree Phase TEFC
Product TypeGeneral Purpose
RotationReversible
RPM1,200 RPM
Service Factor1.15
Shaft DiameterUL;CSA
Shaft Size2.38 in Dia x 5.88 in L
Speed1190 rpm
Speed (RPM)1190
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720028155
Voltage208V, 230V, 460V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com1700973922.01In StockLEESON682.03922.0 @ 1
AmazonTPB06XDTHG2V7233.01In Stock4Leeson7233.0 @ 1
thumbzoomZoroG24946587399.21In Stock10Leeson7399.2 @ 1
thumbzoomcbtcompany.com170097.608241.111In StockLeeson Electric8241.11 @ 1
thumbzoommotorsandcontrol.comLE-170097.608291.261In StockLeeson Electric672.08291.26 @ 1
thumbzoomGalco170097.60-LEES8673.941In StockLeeson672.08673.94 @ 1
thumbzoomWalker Industrial170097-609396.771In Stock17Leeson9396.77 @ 1
kscdirect.comLEE 170097.6010181.321In StockLEESON ELECTRIC CORPORATION10181.32 @ 1
thumbzoomRaptor SuppliesAJ2TEF10909.4031541In StockLEESON10909.403154 @ 1
