mpn:
brand:
manufacturer:
MPN:
Description:

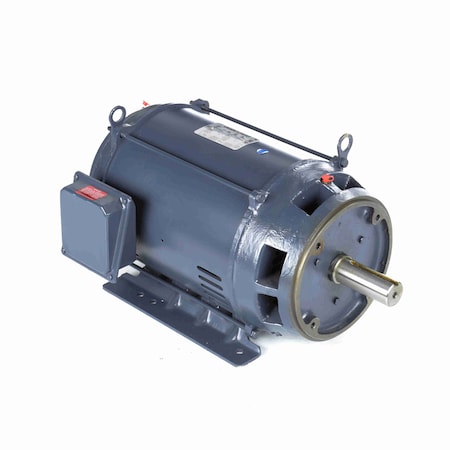

171588.60 20Hp 3550Rpm 256 Tefc 208-230/460V 3Ph 60Hz Cont Not 40C 1.15Sf Rigid Wattsaver C256T34Fk3A - MROSupply.com
Weight:
326.0
Weight:
326.0 LB
Preferred Price:
2679.78
Price:
2679.78
Min Simple Price:
1514.0
Absolute Min Price:
2149.88
Min Price:
2149.88
Dimensions:
[32.0, 23.0, 18.0]
qty:
21
simpleSku:
MzkwMQ:::171588.60
sku:
MzkwMQ::RD:171588.60@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
leeson
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amperage Rating | 50.8 to 46/23 A |
| Application Type | General Purpose AC Motors |
| Approvals | CSA, UL |
| Bearing Type | Ball |
| Class/Group | C256T34FK3 |
| Composition | Cast Iron |
| Construction | Cast Iron |
| Country of Origin (subject to change) | China |
| CT Speed Range | 10:1 |
| Description: | 20HP..3550RPM.256TC.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C256T |
| Dimensions | 25.48 in L x 16.64 in W x 15.12 in H |
| Drive End Flange Type | C-Face |
| Efficiency % | 92.4 % |
| Enclosure | TEFC, Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Estimated Weight | 326.00 |
| Family Series | Leeson Motors, Three Phase C Face Series |
| FL Amps | 50.8-46/23&40.4/20.2 |
| FL Efficiency | 92.4 |
| Frame | 256TC |
| Frequency Rating | 60 Hz |
| Gross Weight | 0 lbs |
| Hertz | 50, 60 |
| Horsepower | 20 hp |
| HP | 20 |
| Insulation Class | Class F |
| Item Number | 171588.60 |
| Manufacturer | Leeson Electric, LEESON ELECTRIC CORPORATION, Leeson |
| Manufacturer Part Number | 171588.60 |
| Material | Cast Iron |
| MFG Part #: | 171588.60 |
| Model Number | C256T34FK3 |
| Mounting | Foot Mount |
| Mounting Type | C-Face/Rigid Base, C-Face Footed |
| NEMA Frame | 256TC |
| Net Weight | 326 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Number of Poles | 2 |
| Number of Speeds | 1 |
| Overall Length | 24.92 " |
| Part Number | 171588.60 |
| Phase | 3, 3 ph |
| Product Series | Three Phase C Face |
| Product Type | General Purpose |
| Rotation | Reversible |
| RPM | 3,600 RPM |
| Service Factor | 1.15, 1.25 |
| Shaft Diameter | UL;CSA |
| Shaft Size | 1.63 in Dia x 4 in L |
| Speed | 3550 rpm |
| Speed (RPM) | 3550 |
| Supplier: | LEESON ELECTRIC CORPORATION |
| UPC: | 691720349960 |
| Voltage | 208V, 230V, 460V |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | 171588 | 1514.0 | 1514.0 | 1 | In Stock | LEESON | 326.0 | 1514.0 @ Qty: 1+ | |
| AmazonTP | B06XDSTSRD | 2464.0 | 2464.0 | 1 | In Stock | 4 | Leeson | 2464.0 @ Qty: 1+ | ||
 | Zoro | G2489003 | 2524.0 | 2524.0 | 1 | In Stock | 10 | Leeson | 2524.0 @ Qty: 1+ | |
 | motorsandcontrol.com | LE-171588.60 | 2746.05 | 2746.05 | 1 | In Stock | Leeson Electric | 326.0 | 2746.05 @ Qty: 1+ | |
 | Galco | 171588.60-LEES | 2872.8 | 2872.8 | 1 | In Stock | Leeson | 326.0 | 2872.8 @ Qty: 1+ | |
 | Walker Industrial | 171588-60 | 3112.2 | 3112.2 | 1 | In Stock | 17 | Leeson | 3112.2 @ Qty: 1+ | |
 | Raptor Supplies | AJ2TJF | 3181.3971345 | 3181.3971345 | 1 | In Stock | LEESON | 3181.3971345 @ Qty: 1+ | ||
| kscdirect.com | LEE 171588.60 | 3372.04 | 3372.04 | 1 | In Stock | LEESON ELECTRIC CORPORATION | 3372.04 @ Qty: 1+ |
