Description:

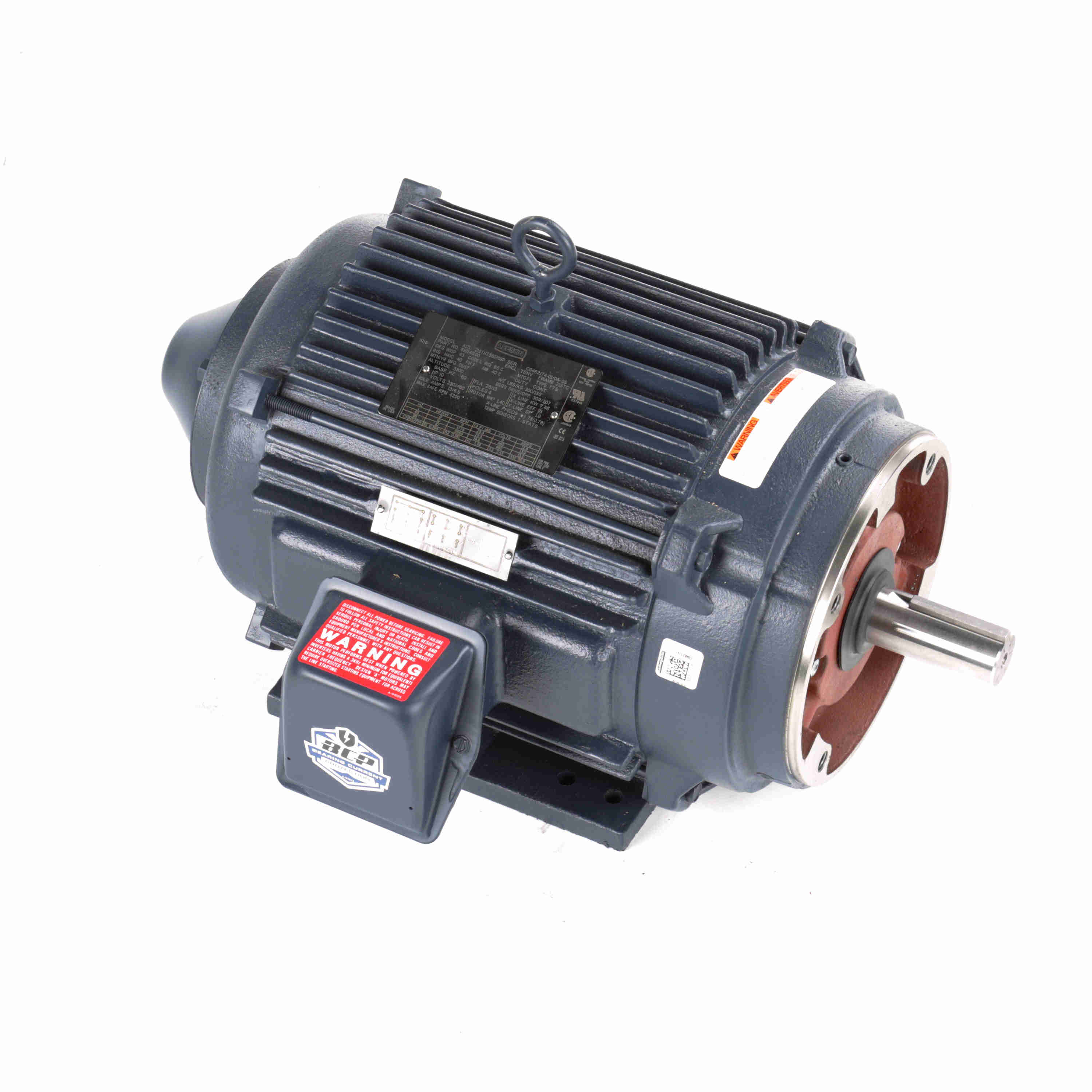

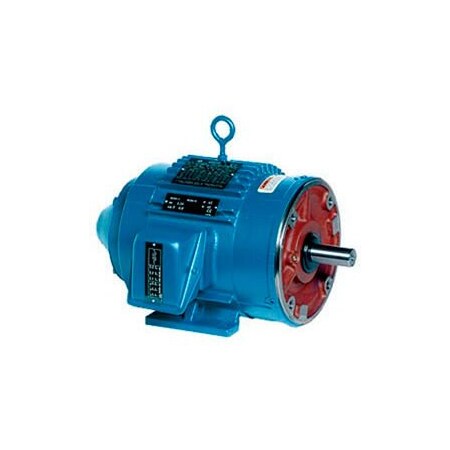

810140.00 10Hp 1775Rpm 215 Tenv /V 3Ph 60Hz Inverter. Not 40C 1.0Sf Rigid Inverter Duty.215Thts8070Bp - MROSupply.com
Weight:
290.0
Weight:
290.0 LB
Preferred Price:
3359.46
Price:
3359.46
Min Simple Price:
1898.0
Absolute Min Price:
2695.16
Min Price:
2695.16
Dimensions:
[23.0, 23.0, 23.0]
qty:
21
simpleSku:
MzkwMQ:::810140.00
sku:
MzkwMQ::DW:810140.00@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
leeson electric
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 26/13 A |
| Application Type | Fan & Blower Motors, OEM Replacement Motors |
| Approvals | CSA, UL |
| Bearing Type | 22.74, Ball |
| Class/Group, Model Number | 215THTS8070 |
| Composition, Material | Cast Iron |
| Country of Origin (subject to change) | United States |
| Description: | OBSOLETE REPLACED BY 215THTS8038 |
| Dimensions | 22.74 in L |
| Enclosure | Totally Enclosed Blower Cooled |
| Enclosure Type | TENV |
| Family Series | Leeson Motors, Inverter Duty Series |
| Frame, NEMA Frame | 215TC |
| Frequency Rating | 60 Hz |
| Gross Weight | 0 lbs |
| Horsepower | 10 hp |
| Insulation Class | Class H |
| Item Number, Manufacturer Part Number, MFG Part #: | 810140.00 |
| Manufacturer | Leeson |
| Manufacturer, Supplier: | LEESON ELECTRIC CORPORATION |
| Mounting Type | Foot Mount, Rigid |
| Net Weight | 290 lbs |
| Nominal Voltage | 240 VAC, 480 VAC |
| Overall Length | 22.74 " |
| Phase | 3 |
| Product Series | Inverter Duty |
| Rotation | Reversible |
| RPM | 1,800 RPM |
| Service Factor | 1 |
| Shaft Diameter | UL;CSA |
| Shaft Size | 1-5/14 in Dia |
| Special Features | 2000:1 Speed Range, Vector (Inverter) Duty Motors |
| Speed | 1775 rpm |
| Temperature Rating | 40 deg C |
| Torque Rating | 119 ft-lb |
| UPC: | 691720211298 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | 810140 | 1898.0 | 1898.0 | 1 | In Stock | LEESON | 1898.0 @ Qty: 1+ | ||
 | MRO Supply | 2527968 | 2006.48 | 2006.48 | 1 | In Stock | 9 | Leeson | 290.0 | 2006.48 @ Qty: 1+ |
 | Purvis | 810140LEE | 2717.56 | 2717.56 | 1 | In Stock | LEESON | 2717.56 @ Qty: 1+ | ||
| AmazonTP | B0773VV5DW | 3145.32 | 3145.32 | 1 | In Stock | 10 | Leeson Electric | 3145.32 @ Qty: 1+ | ||
 | Galco | 810140.00-LEES | 3174.03 | 3174.03 | 1 | In Stock | Leeson | 290.0 | 3174.03 @ Qty: 1+ | |
| cbtcompany.com | 810140.00 | 3620.96 | 3620.96 | 1 | In Stock | Leeson Electric | 3620.96 @ Qty: 1+ | |||
 | Walker Industrial | 810140-00 | 3704.37 | 3704.37 | 1 | In Stock | 17 | Leeson | 3704.37 @ Qty: 1+ | |
| kscdirect.com | LEE 810140.00 | 4013.65 | 4013.65 | 1 | In Stock | LEESON ELECTRIC CORPORATION | 4013.65 @ Qty: 1+ | |||
 | Raptor Supplies | AJ2UJC | 4079.3442885 | 4079.3442885 | 1 | In Stock | LEESON | 4079.3442885 @ Qty: 1+ | ||
 | Zoro | G604988299 | 5824.76 | 5824.76 | 1 | In Stock | Leeson Electric | 5824.76 @ Qty: 1+ |
