Leeson Electric 811563.00

B0773VKTXY

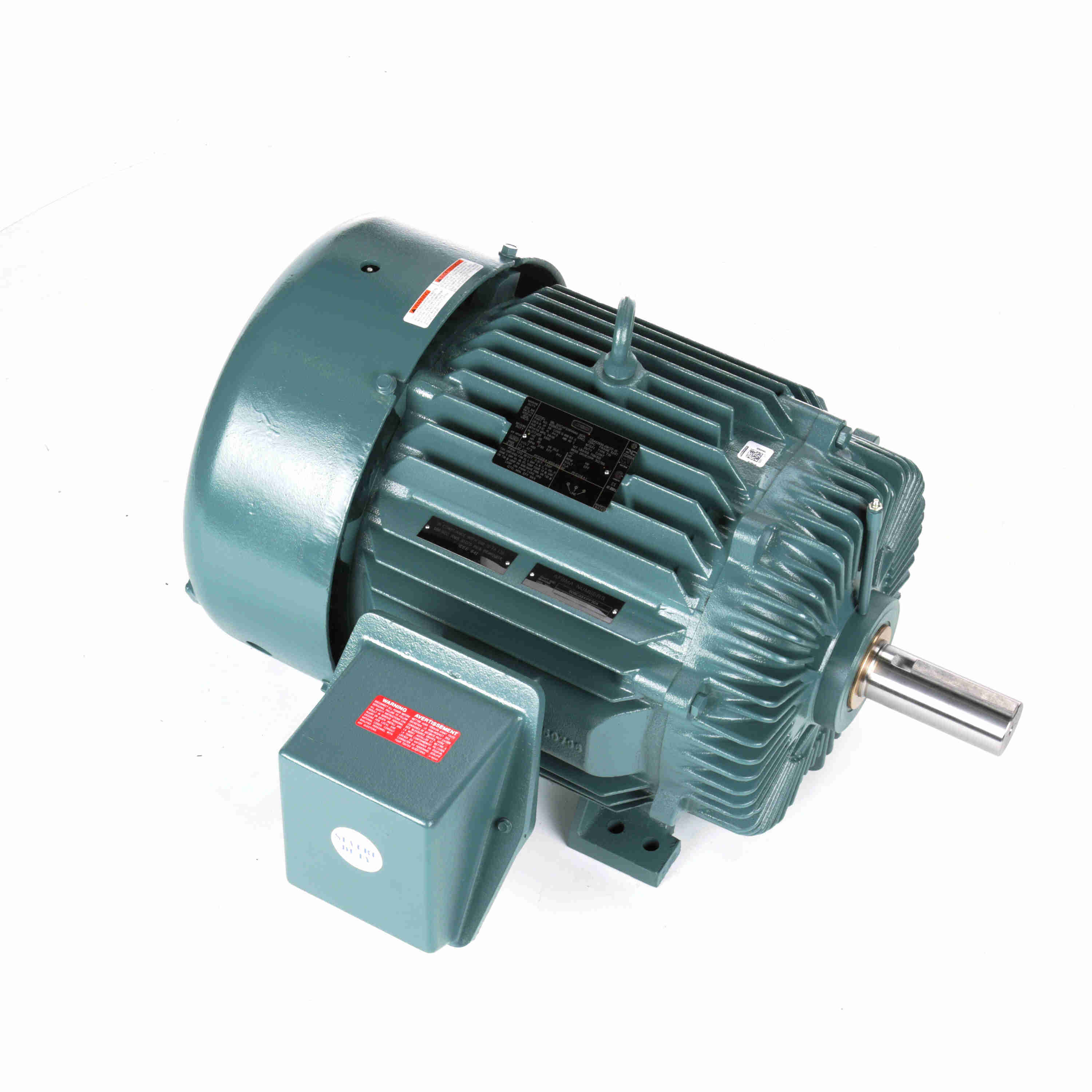

Leeson Electric, 811563.00, 40HP, 1780RPM, 3PH, 460V, 324T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motor

Leeson Electric, 811563.00, 40HP, 1780RPM, 3PH, 460V, 324T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motorzoom

Attributes

Key Value
Amperage Rating47.5 A
Bearing TypeBall
CompositionCast Iron
Description:40HP..1780RPM.324.TEFC..
Dimensions30.37 in L x 26.05 in W.
Efficiency %94.1 %
EnclosureTotally Enclosed Fan Co.
Enclosure TypeTotally Enclosed Fan Co.
Family SeriesLeeson Motors
Frame324T
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower40 hp
Insulation ClassClass F
Item Number811563.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number811563.00
MaterialCast Iron
MFG Part #:811563.00
Mounting TypeFoot Mount, Rigid Base
NEMA Frame324T
Net Weight700 lbs
Nominal Voltage480 VAC
Phase3, 3 ph
RotationReversible
RPM1,780 RPM
Service Factor1.15
Shaft Size2.13 in Dia x 5.25 in L
Special FeaturesSevere Duty Motors
Speed1780 rpm
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720247389
Voltage (AC)460 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com8115632970.01In StockLEESON700.02970.0 @ 1
thumbzoomGalco811563.00-LEES5083.81In StockLeeson700.05083.8 @ 1
kscdirect.comLEE 811563.005727.811In StockLEESON ELECTRIC CORPORATION5727.81 @ 1
thumbzoomWalker Industrial811563-005933.71In Stock17Leeson5933.7 @ 1
AmazonTPB0773VKTXY6329.521In Stock10Leeson Electric6329.52 @ 1
thumbzoomRaptor SuppliesAJ2UKP8140.39755751In StockLEESON8140.3975575 @ 1
