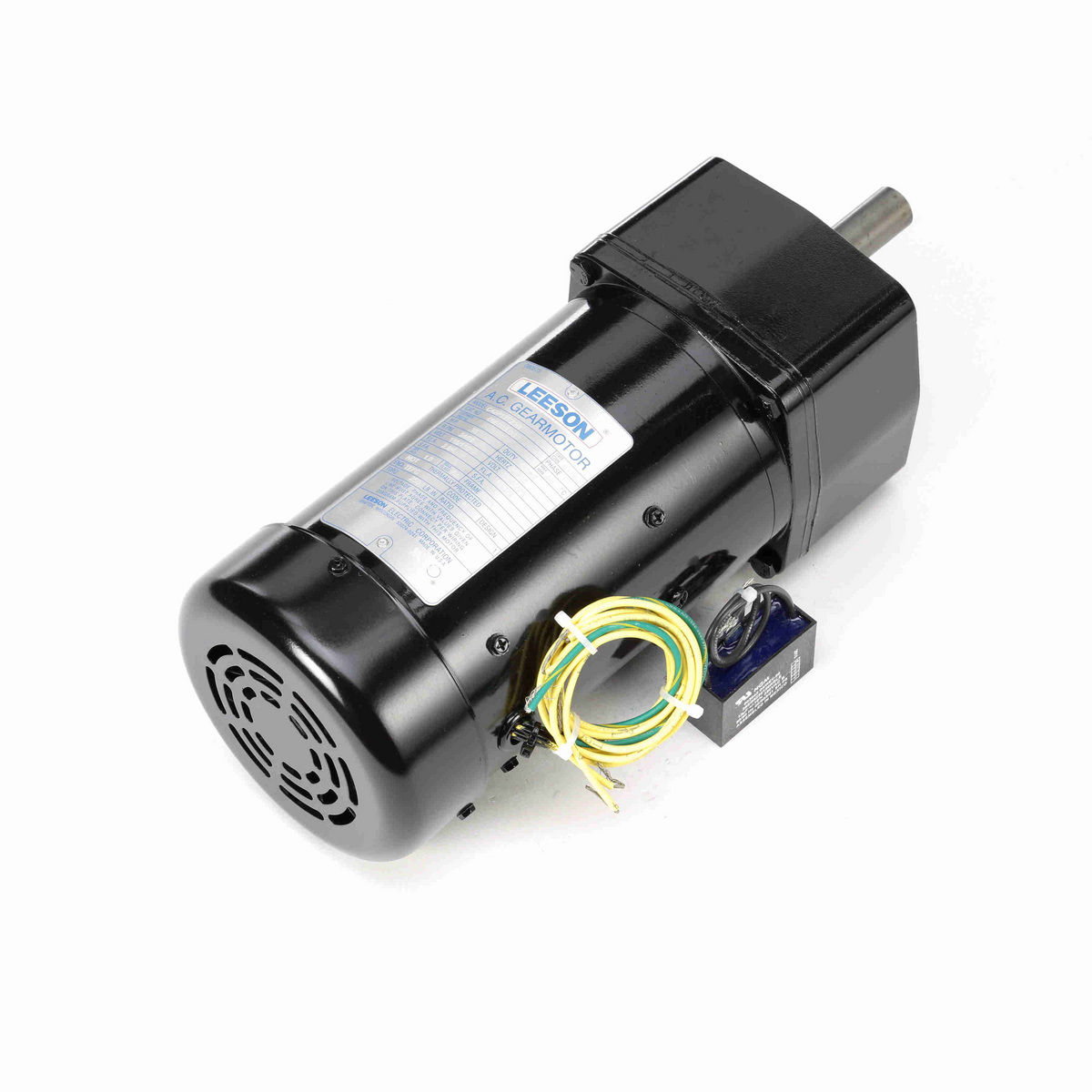

Description:
HP: 1/6RPM: 34Volts: 110Amps: 2.9/1.5Hz: 60Phase: 1Frame: 42YEnclosure Type: TEFC (Totally Enclosed Fan Cooled)Mounting: SpecialShaft Diameter: 0.750"Shaft Length: 1.625"Motor Shell Length: 6.25"Overall Length: 13.32"Rotation: ReversibleService Factor: 1.0Efficiency: 40.2%Maximum Ambient Temperature: 40? CInsulation Cl
Attributes
| Key | Value |
|---|---|
| Amps | 2.9/1.5 |
| Duty Cycle | Continuous |
| Efficiency | 40.2% |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Frame | 42Y |
| HP | 1/6 |
| Hz | 60 |
| Insulation Class | F |
| Maximum Ambient Temperature | 40? C |
| Motor Shell Length | 6.25" |
| Mounting | Special |
| Overall Length | 13.32" |
| Phase | 1 |
| Rotation | Reversible |
| RPM | 34 |
| Service Factor | 1.0 |
| Shaft Diameter | 0.750" |
| Shaft Length | 1.625" |
| Ship Weight | 29 lbs. |
| Volts | 110 |
