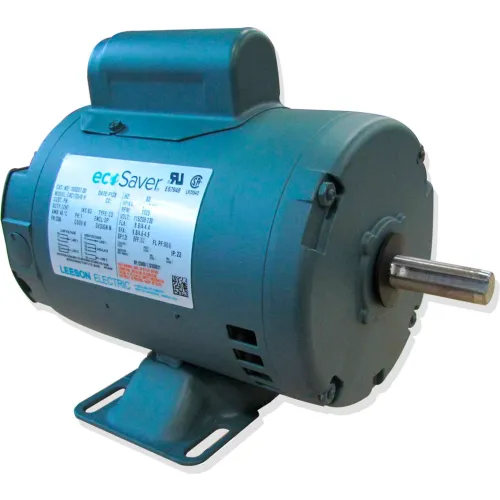

Leeson E103023.00
Leesonzoom

Leeson E103023.00

mpn:
E103023.00
brand:
Leeson
manufacturer:
Leeson
MPN:
E103023.00
Description:
0.33 HP General Purpose Motor, 1 phase, 1800 RPM, 115/230 V, 56C Frame, ODP
Weight:
19.0
Weight:
19.0 LB
Preferred Price:
481.44
Price:
481.44
Min Simple Price:
272.0
Absolute Min Price:
386.24
Min Price:
386.24
Dimensions:
[12.0, 8.0, 8.0]
qty:
21
simpleSku:
MDE3Mg:::E103023.00
sku:
MDE3Mg::3B:E103023.00@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
leeson
HazMat:
False
DropShip:
True

Attributes

Key ^Value
Amperage Rating3.8/1.9 A
Application TypeGeneral Purpose AC Motors
Bearing Type, Drive End Bearing Type, Opp. Drive End Bearing TypeBall
CategoryElectric Motor
CompositionSteel
Construction, Frame Material, MaterialRolled Steel
Country of Origin (subject to change)Mexico
Description:..1/3HP..1800RPM.S56C.ODP.115/230V.1PH.60HZ.CONT.40C.1.35S.F..RIGID C FACE
Dimensions10.74 in L x 6.5 in W x 7.82 in H
Drive End Bearing Size, Opp. Drive End Bearing Size6203
Drive End Flange Type, Mounting TypeC-Face
Efficiency %72.4 %
Efficiency, FL Efficiency72.4
EnclosureODP, Open, Drip Proof
Enclosure TypeDP
Estimated Weight19.00
Family SeriesLeeson Motors
FL Amps3.8/1.9
Frame56C
Frame RemarksFOOTED
Frame, NEMA FrameS56C
Frequency, Frequency Rating60 Hz
Frequency, Hertz, Hz60
Gross Weight, Net Weight0 lbs
Horsepower1/3 hp, 0.33 hp
HP0.33
Insulation ClassB, Class B
Item ConditionFACTORY NEW
Item Number, Manufacturer Part Number, MFG Part #:, Part NumberE103023.00
KW0.25
ManufacturerLeeson Electric, Leeson
Manufacturer, Supplier:LEESON ELECTRIC CORPORATION
MountingFoot Mount
mountingC-face w/ rigid base
Mounting TypeC-Face/Rigid Base
Nominal Voltage120 VAC, 240 VAC
Number of Poles4
Number of Speeds, Phase1
Phase1 ph
Product TypeGeneral Purpose
RotationSelective CCW
RPM1700 - 1800, 1800, 1,725 RPM
Service Factor1.35
Shaft Diameter0.625
Shaft Length1.88
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesCapacitor Start Motors
Speed (RPM)1725
UPC:691720041451
Voltage110-120V, 230V, 115-230
Voltage (AC)110-120 VAC, 230 VAC
Volts115/230

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomelectricmotorwholesale.comE103023272.0272.01In StockLEESON272.0 @ Qty: 1+
AmazonTPB0773TVY3B338.68338.681In Stock10Leeson338.68 @ Qty: 1+
thumbzoomMRO Supply5054622366.67366.671In StockLeeson366.67 @ Qty: 1+
thumbzoomGalcoE103023.00-LEES471.2471.21In StockLeeson471.2 @ Qty: 1+
thumbzoomDealers ElectricE103023.00473.13473.131In StockLeeson20.0473.13 @ Qty: 1+
thumbzoommotorsandcontrol.comLE-E103023.00519.7519.7125Leeson Electric19.0519.7 @ Qty: 1+
us.rs-online.com73396634529.38529.381In StockLeeson529.38 @ Qty: 1+
kscdirect.comLEE E103023.00543.13543.131In StockLEESON ELECTRIC CORPORATION543.13 @ Qty: 1+
thumbzoomcbtcompany.comE103023.00554.07554.071In StockLeeson Electric554.07 @ Qty: 1+
thumbzoomZoroG1910900572.68572.681In StockLeeson572.68 @ Qty: 1+
thumbzoomWalker IndustrialE103023-00589.0589.01In Stock17Leeson589.0 @ Qty: 1+
factorysupplyoutlet.comFQ27HC617.89617.891In StockLEESON617.89 @ Qty: 1+
thumbzoomGlobal IndustrialWBB2060676624.0624.01In Stock15Leeson624.0 @ Qty: 1+
thumbzoompumpproducts.comE103023.00705.0705.01In StockLeeson705.0 @ Qty: 1+
B0773TVY3B
Leeson E103023.00

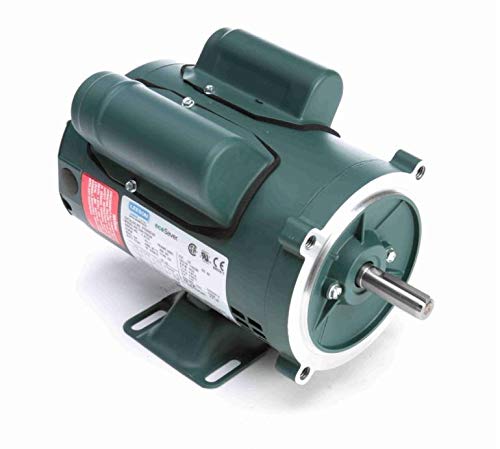

Leeson E103023.00 Open Drip Proof Motor, 1/3 HP, 1 PH, 1800 RPM, 60 HZ, 115/230V, S56C Frame, C-Face, Rigid Base

Leeson E103023.00 Open Drip Proof Motor, 1/3 HP, 1 PH, 1800 RPM, 60 HZ, 115/230V, S56C Frame, C-Face, Rigid Basezoom
