Leeson Electric E110052.00

B0773TF1Z8

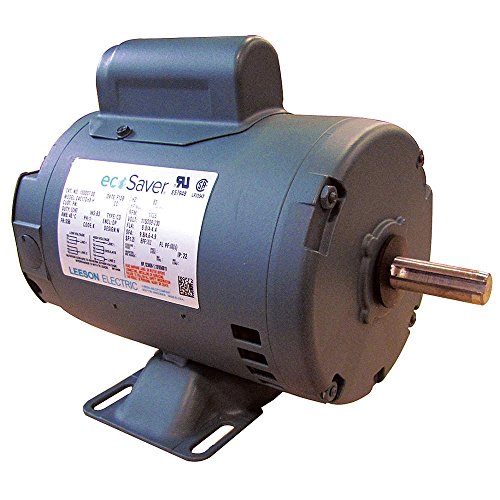

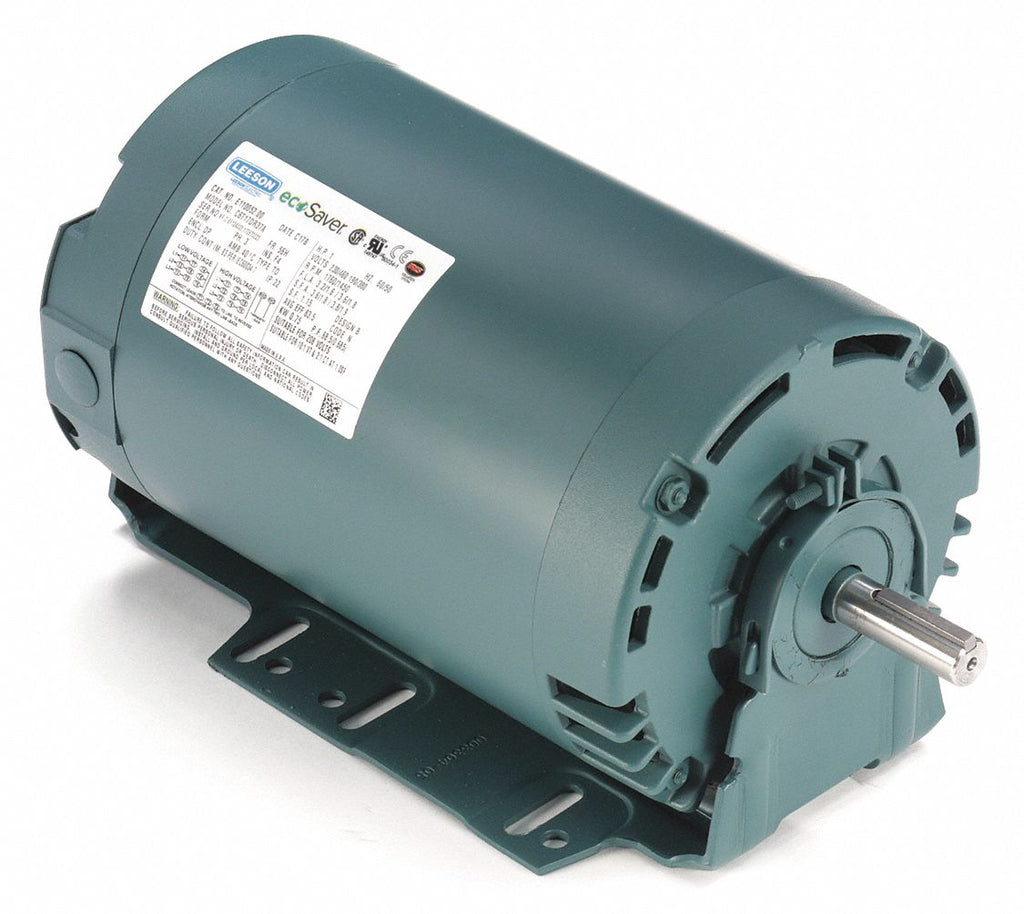

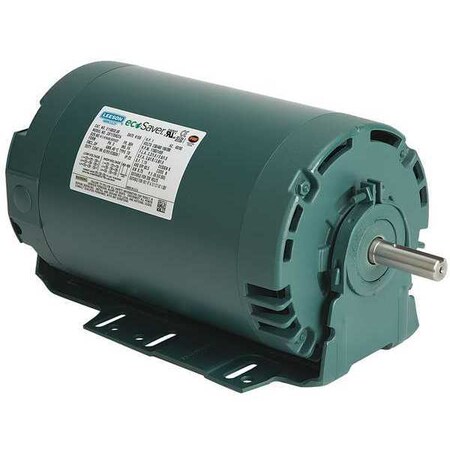

Leeson Electric E110052.00, 1HP, 1760 RPM, 3 Ph, 230V,460V, 56H Frame, Open, Electric Motor

Leeson Electric E110052.00, 1HP, 1760 RPM, 3 Ph, 230V,460V, 56H Frame, Open, Electric Motorzoom

Attributes

Key Value
Amperage Rating3.2/1.6 A
Application TypeFan and Blower Motors, .
Bearing TypeBall
CategoryElectric Motor
CompositionSteel
Country of Origin (subj.United States
Description:..1HP..1760RPM.56.DP.23.
Dimensions13.32 in L x 6.5 in W x.
DutyContinuous
Duty CycleContinuous
Efficiency %83.5 %
EnclosureODP, Drip Proof
Enclosure TypeDP
Family SeriesLeeson Motors
Frame56H
Frame MaterialRolled steel
Frame RemarksResilient Base
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps3.2/1.60
Full Load Amps @ 50Hz3.2/1.60
Gross Weight0 lbs
Horsepower1 hp
HP1
HP @ 50Hz1
Hz60/50
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFACTORY NEW
Item NumberE110052.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberE110052.00
Manufacturers Warranty .1 yr
MaterialRolled steel
Max. Ambient Temp.40 Degrees C
MFG Part #:E110052.00
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeCradle Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
mountingResilient Base
Mounting TypeFoot Mount, Resilient B.
Nameplate RPM1,760
NEMA DesignB
NEMA Frame56H
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency83.5 %
Nominal Voltage240 VAC, 480 VAC
Number of Speeds1
Overall Length13 5/16 in
Phase3, Three, 3 ph
Promotion RestrictionNot eligible for promot.
RotationReversible
RPM1,760 RPM, 1800
RPM @ 50Hz1,760
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Speed1760 rpm
StandardsCE Certified, CSA Certi.
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720103623
Usable @ 200VNo
Usable @ 208VNo
Voltage230/460V AC
Voltage (AC)230 VAC, 460 VAC
Voltage @ 50Hz230/460V AC
Voltage Compatibility200-230/440V AC, 200-23.
Volts230/460
Weight38 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2795172174.741In Stock14Leeson24.0174.74 @ 1
thumbzoomGalcoE110052.00-LEES188.721In StockLeeson188.72 @ 1
thumbzoomelectricmotorwholesale.comE110052366.01In StockLEESON366.0 @ 1
AmazonTPB0773TF1Z8415.621In Stock2Leeson Electric415.62 @ 1
thumbzoomDealers ElectricE110052.00446.481In StockLeeson38.0446.48 @ 1
thumbzoomZoroG2035096491.512In StockLeeson38.0491.51 @ 2
thumbzoomsustainablesupply.comC2787638695.141In StockLeeson38.0695.14 @ 1
kscdirect.comLEE E110052.00848.841In StockLEESON ELECTRIC CORPORATION848.84 @ 1
factorysupplyoutlet.comOH91CZ871.881In StockLEESON871.88 @ 1
