Leeson Electric E119348.00

B0722JS48M

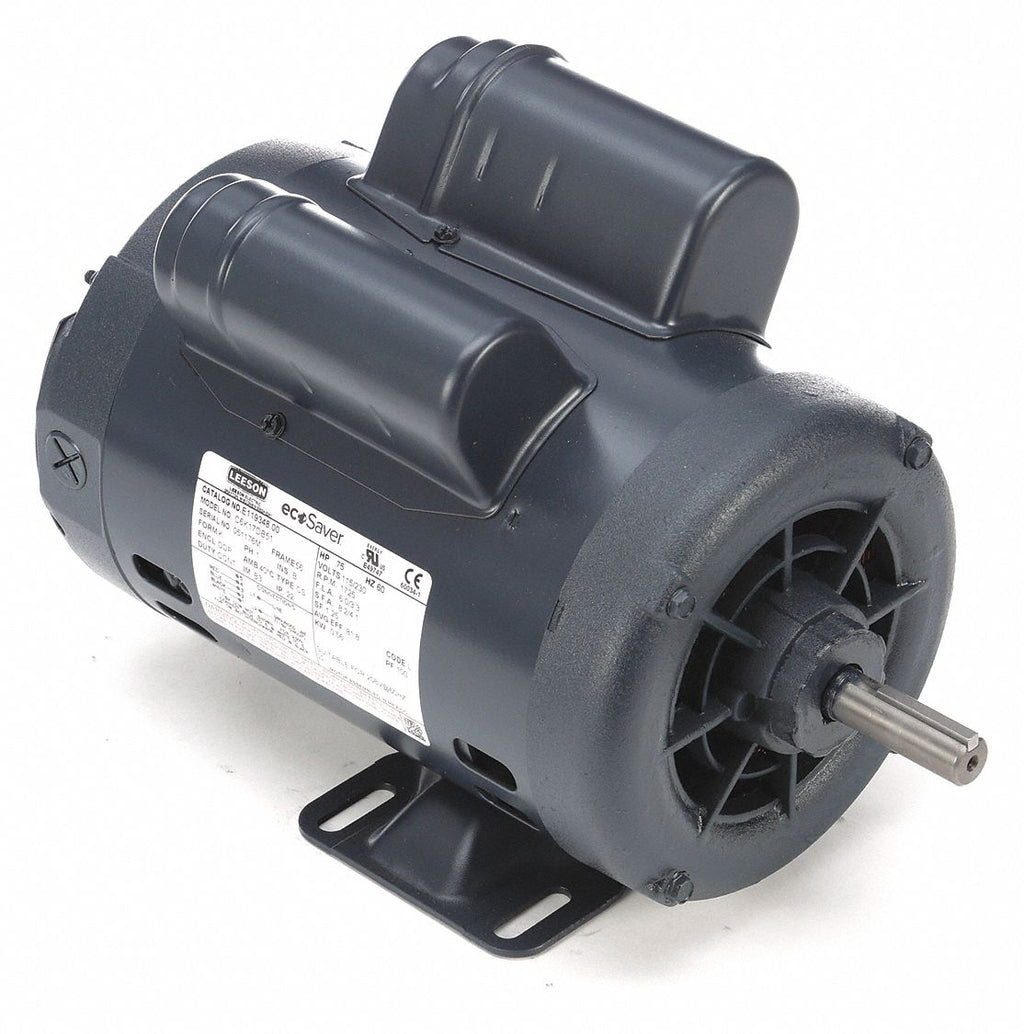

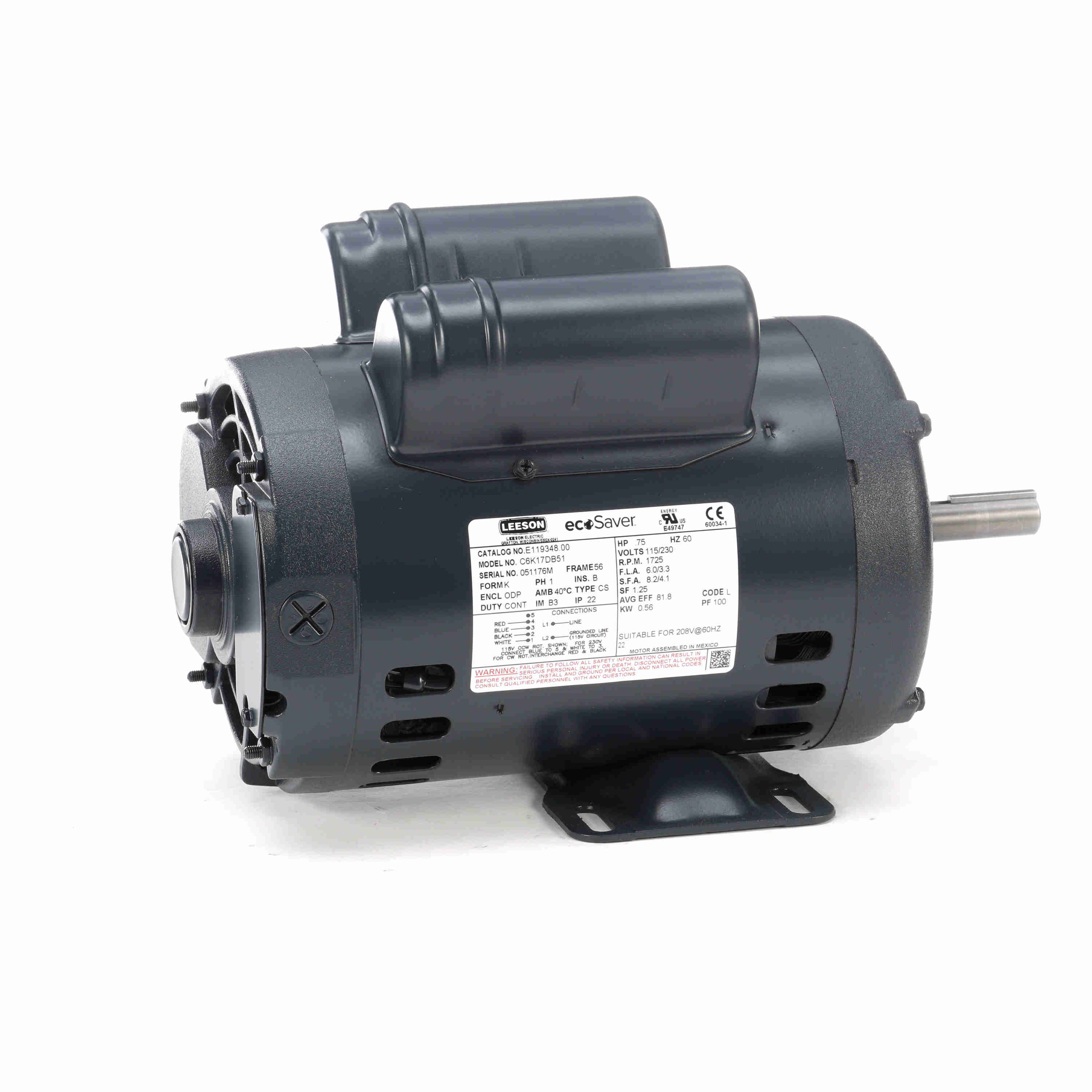

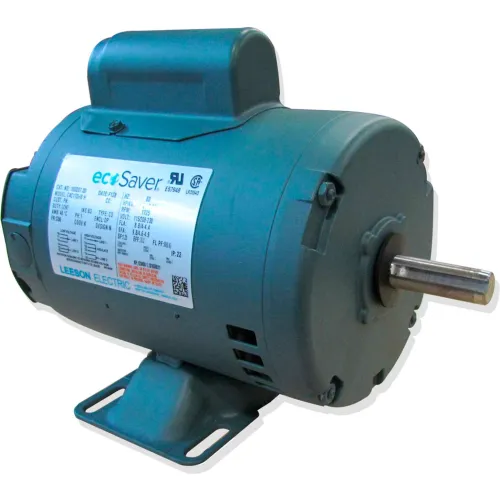

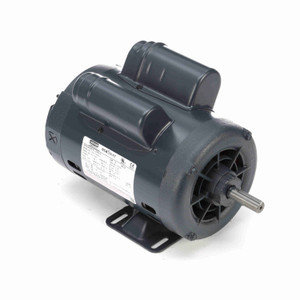

Leeson Electric E119348.00, .75HP, 1725 RPM, 1 Ph, 110-120V,230V, 56 Frame, Open, Electric Motor

Leeson Electric E119348.00, .75HP, 1725 RPM, 1 Ph, 110-120V,230V, 56 Frame, Open, Electric Motorzoom

Attributes

Key Value
Alternate Mfr Part Numb.E119348.00
Amperage Rating6.6/3.3 A
Amps6.6/3.3
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
BrandLeeson
C-Dimension (In.)13.15
Catalog NumberE119348.00
CategoryElectric Motor
CEN
CompositionSteel
Country of Origin (subj.Mexico
CSAY
Current Rating6.6 ; 3.3 A
DE Bearing TypeBall
DEM ReferenceNOHP
Description:Replaced by 056B17DRR70.
Dimensions13.15 in L
DutyContinuous
Duty CycleContinuous
Efficiency81.8 %, 81.8%
Efficiency %81.8 %
Electrical TypeCapacitor Start Inducti.
EnclosureODP, Drip Proof
Enclosure MaterialRolled steel
Enclosure TypeDP (Dripproof), Drip Pr.
Family SeriesLeeson Motors
Frame56
Frame MaterialRolled steel
Frame Type56
Frequency60, 60 Hz
Frequency Rating60 Hz
Full Load Amps6.6/3.3
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Horsepower0.75 hp, 3/4 hp
Horsepower Rating0.75 hp
HP3/4, 0.75
Hz60
Ins. ClassB
Insulation ClassB, Class B
Insulation TypeClass B
IP Code22
ItemGeneral Purpose Motor
Item ConditionFACTORY NEW
Item NumberE119348.00
KVA CodeL
Length Less Shaft11 1/4 in
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberE119348.00
Manufacturers Warranty .3 yr
MaterialRolled steel
Max Ambient40?C
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:E119348.00
Motor ApplicationGeneral Application
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor OrientationHorizontal
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Shell Length7.38"
Motor Thermal ProtectionNone
MountingRigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid Base
Nameplate RPM1,725
NEMA DesignB
NEMA Frame56
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency81.8 %
Nominal Voltage120 VAC, 240 VAC
Number of Phases1
Number of speeds1
Number of Speeds1
ODE Bearing TypeBall
Overall Length13 1/8 in, 13.15"
Phase1, Single, 1 Phase, 1 ph
Product CategoryGeneral Purpose NEMA Ge.
Product TypeCapacitor Start
RotationSelective CCW, Reversib.
RPM1725 RPM, 1725, 1800, 1.
RPM (Nameplate)1725
RPM (Number of Poles)4 (1201 RPM to 1800 RPM)
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.5/8 in
Shaft Diameter0.625"
Shaft Diameter (In.)0.625
Shaft Extension (In.)1.88
Shaft Length1.88", 1 7/8 in
Shaft Size0.63 in Dia x 1.88 in L
Shaft TypeNEMA 56
Ship Weight40 lbs.
Special FeaturesCapacitor Start Motors,.
StandardsUL Recognized, CSA Cert.
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/230 VAC
TypeCapacitor Start Inducti.
Type of Overload Protec.No
ULRecognized
UPC Code691720028186
UPC:691720028186
Usable @ 200VNo
Usable @ 208VNo
Voltage115/230V AC
Voltage (AC)110-120 VAC, 230 VAC
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/230
Weight40 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.comE119348.00124.871In StockLeeson40.0124.87 @ 1
thumbzoomGalcoE119348.00-LEES154.151In StockLeeson154.15 @ 1
kscdirect.comLEE E119348.00169.921In StockLEESON ELECTRIC CORPORATION169.92 @ 1
us.rs-online.com72237384188.431In StockLeeson188.43 @ 1
thumbzoomWalker IndustrialE119348-00193.971In Stock17Leeson193.97 @ 1
thumbzoomcbtcompany.comE119348.00207.031In StockLeeson Electric207.03 @ 1
thumbzoomGlobal IndustrialWBB2060675276.951In Stock17Leeson276.95 @ 1
thumbzoomelectricmotorwholesale.comE119348316.01In StockLEESON316.0 @ 1
thumbzoomDealers ElectricE119348.00376.411In StockLeeson40.0376.41 @ 1
thumbzoomZoroG2030537450.911In StockLeeson40.5450.91 @ 1
thumbzoomDreisilkerLE-RBC-E119348.00504.31In StockLeeson504.3 @ 1
thumbzoomsustainablesupply.comC2787639535.971In StockLeeson40.5535.97 @ 1
AmazonTPB07B7MD2X4567.771In Stock2LEESON567.77 @ 1
kirbyrisk.com3194490660.771In StockLeeson660.77 @ 1
thumbzoomRaptor SuppliesAJ2UUX709.01444251In StockLEESON709.0144425 @ 1
factorysupplyoutlet.comPA40AG727.441In StockLEESON727.44 @ 1
