Leeson Electric LM16029

B0773QZTGM

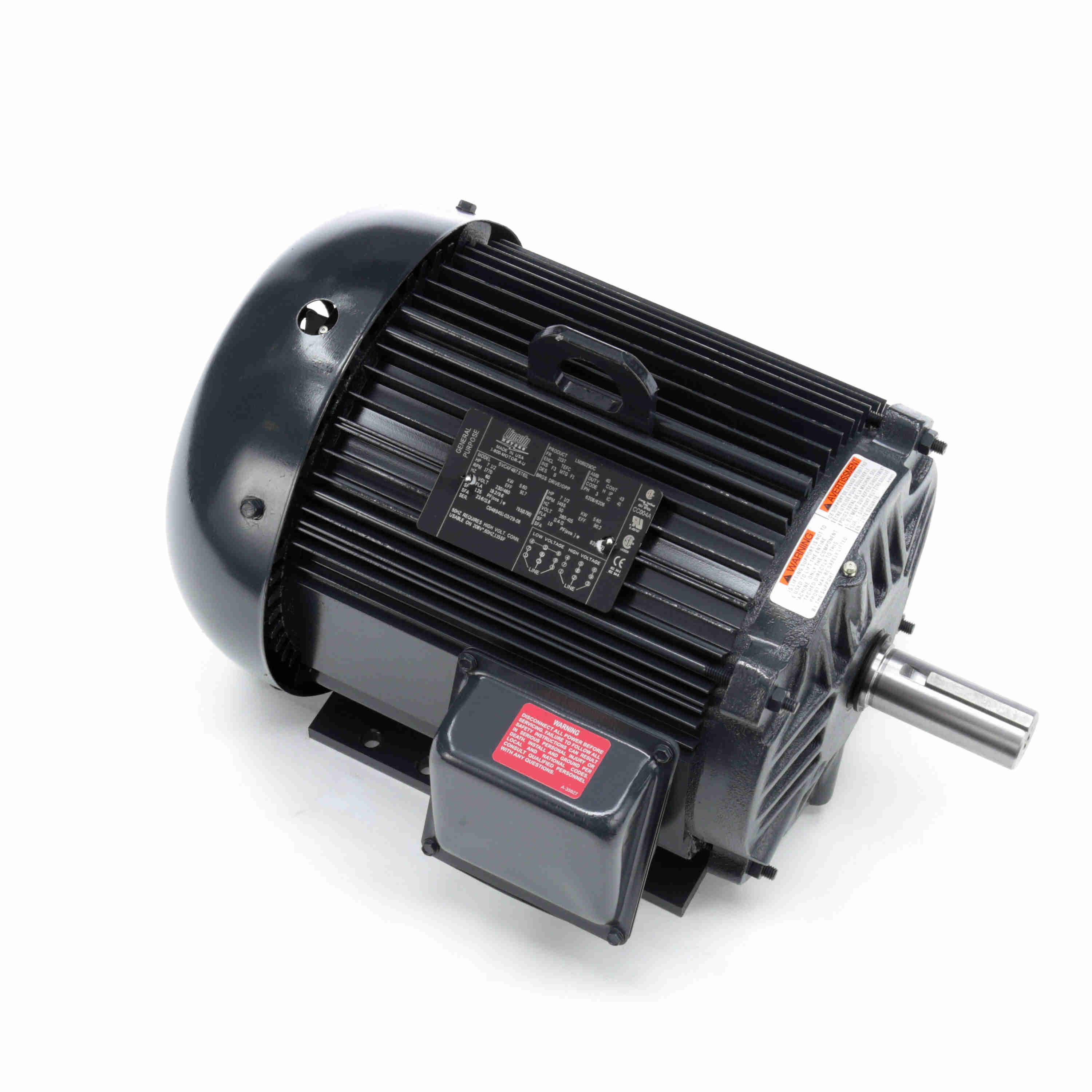

Leeson Electric, LM16029, 7.5HP, 1770RPM, 3PH, 230V;460V, 213T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16029, 7.5HP, 1770RPM, 3PH, 230V;460V, 213T Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating19.2/9.6 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ConstructionAluminum
Description:..7.5HP..1800RPM.213T.T.
Dimensions18.84 in L x 13.31 in W.
Drive End Flange TypeStandard
EnclosureTEFC
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight127.00
Family SeriesLeeson Miscellaneous
FL Amps19.2/9.6&11.4-11
FL Efficiency91.7
Frame213T
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower7.5 hp
HP7 1/2, 7.5
Hz60/50
Insulation ClassClass F
Item NumberLM16029
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16029
MaterialAluminum
MFG Part #:LM16029
MountingFoot Mount
Mounting TypeRigid Base
Net Weight0 lbs
Number of Speeds1
Part NumberLM16029
Phase3, 3 ph
Product TypeGeneral Purpose
RotationReversible
RPM1700 - 1800
Service Factor1.25
Shaft Size1.38 in Dia x 3.38 in L
Speed1770 rpm
Speed (RPM)1770
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720021019
Voltage230V, 460V, 230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGalcoLM16029-LEES1514.931In StockLeeson1514.93 @ 1
AmazonTPB00BC7XAUM1532.531In Stock10Leeson1532.53 @ 1
thumbzoommotorsandcontrol.comLE-LM160291670.881In StockLeeson Electric127.01670.88 @ 1
cbtcompany.comLM160291797.161In StockLeeson Electric1797.16 @ 1
thumbzoomWalker IndustrialLM160291893.671In Stock17Leeson1893.67 @ 1
kscdirect.comLEE LM160292051.771In StockLEESON ELECTRIC CORPORATION2051.77 @ 1
factorysupplyoutlet.comDC31PQ2171.671In StockLEESON2171.67 @ 1
thumbzoomRaptor SuppliesAJ2VLJ2403.54275851In StockLEESON2403.5427585 @ 1
