Leeson Electric LM16774

B0773SPWT6

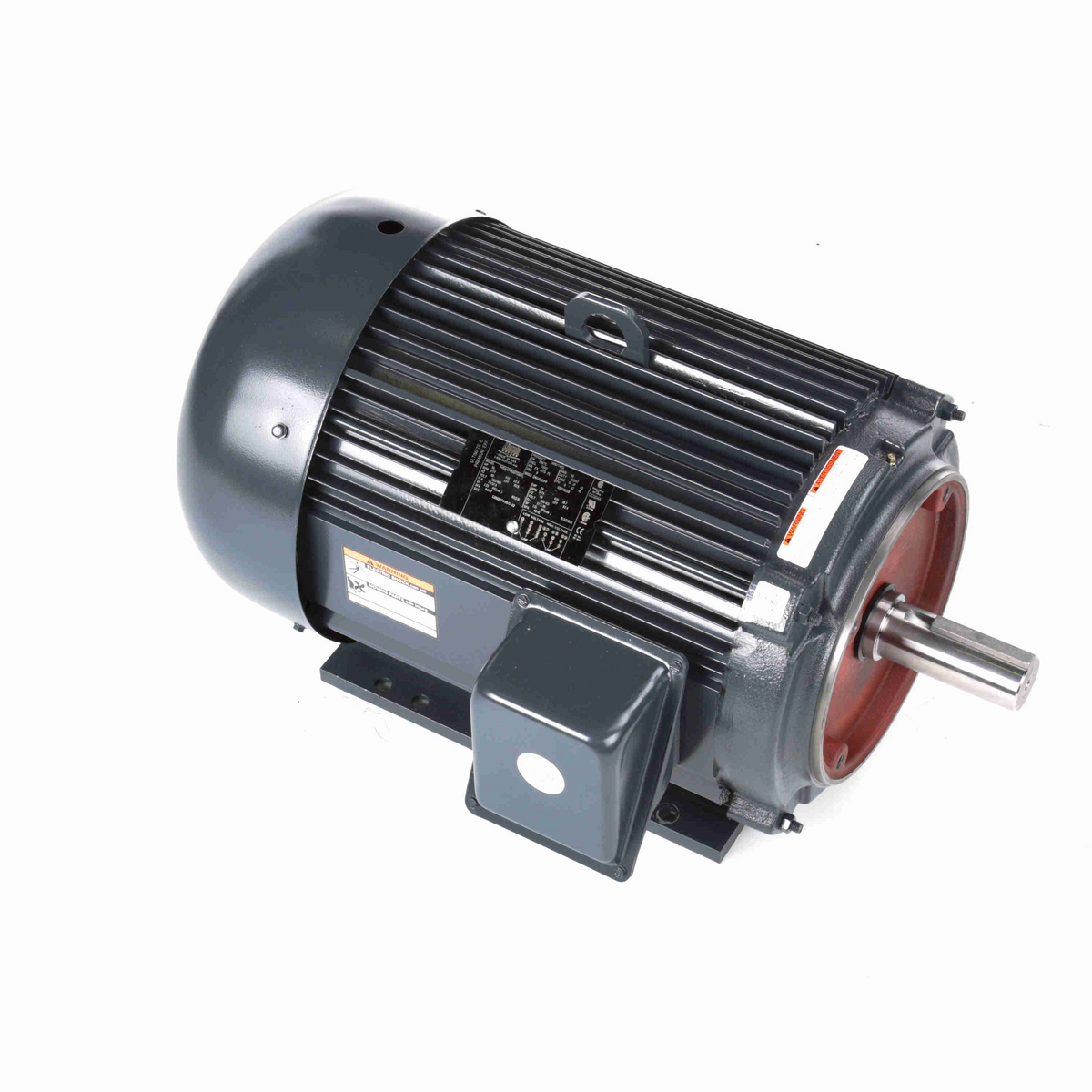

Leeson Electric, LM16774, 30HP, 1777RPM, 3PH, 230V;460V, 286TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motor

Leeson Electric, LM16774, 30HP, 1777RPM, 3PH, 230V;460V, 286TC Frame, C-Face Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating75/37.5 A
Amps75.0/37.5
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CompositionAluminum
ConstructionAluminum
CT Speed Range10:1
Description:..30HP..1800RPM.286TC.T.
Dimensions28.01 in L x 18.77 in W.
Drive End Bearing Size6312
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency93.6, 93.6%
Efficiency %93.6 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialAluminum
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight415.00
Family SeriesLeeson Motors, Three Ph.
FL Amps75/37.5&37.5-36
FL Efficiency93.6
Frame286TC
Frame MaterialAluminum
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower30 hp
HP30
Hz60, 60/50
Insulation ClassClass F, F
Item NumberLM16774
KW22.4
ManufacturerLeeson Electric, LEESON.
Manufacturer Part NumberLM16774
MaterialAluminum
Maximum Ambient Tempera.40? C
MFG Part #:LM16774
Model NumberAF4B30TC61Y
Motor Shell Length15.25"
MountingFoot Mount, Rigid Base
Mounting TypeC-Face/Rigid Base, C-Fa.
NEMA Frame286TC
Net Weight415 lbs
Nominal Voltage208 VAC, 240 VAC, 415 V.
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6209
Opp. Drive End Bearing .Ball
Overall Length28.01 ", 28.01"
Part NumberLM16774
Phase3, 3 ph
Product SeriesThree Phase C Face
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1775, 1,800 RPM, 1700 -.
Service Factor1.25
Shaft Diameter1.875", 1.875
Shaft Length4.62", 4.62
Shaft Size1.88 in Dia x 4.62 in L
Ship Weight361 lbs.
Speed1777 rpm
Speed (RPM)1777
Supplier:LEESON ELECTRIC CORPORA.
Temperature Rating40 deg C
UPC:691720061916
Voltage230V, 460V, 230/460
Voltage (AC)230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply2254423594.961In StockLeeson3594.96 @ 1
thumbzoomapexindustrialautomation.comLM167743733.2317Leeson3733.23 @ 1
industrialmotors.comLM167743823.813LEESON ELECTRIC3823.8 @ 1
thumbzoomGalcoLM16774-LEES4470.831In StockLeeson415.04470.83 @ 1
AmazonTPB00BC7LI8S4524.581In Stock10Leeson4524.58 @ 1
thumbzoomZoroG17305104852.011Leeson4852.0 @ 1
thumbzoommotorsandcontrol.comLE-LM167744931.06117Leeson Electric415.04931.06 @ 1
us.rs-online.com733969065022.891In StockLeeson5022.89 @ 1
thumbzoomemotorpro.comLM167745184.11In StockLeeson361.05184.1 @ 1
thumbzoomcbtcompany.comLM167745303.611In StockLeeson Electric5303.61 @ 1
kirbyrisk.com24048585370.791In StockLeeson5370.79 @ 1
thumbzoomWalker IndustrialLM167745588.531In Stock10Leeson5588.53 @ 1
kscdirect.comLEE LM167746055.131In StockLEESON ELECTRIC CORPORATION6055.13 @ 1
thumbzoompumpproducts.comLM167746380.431In StockLeeson6380.43 @ 1
factorysupplyoutlet.comYE54LE6407.441In StockLEESON6407.44 @ 1
