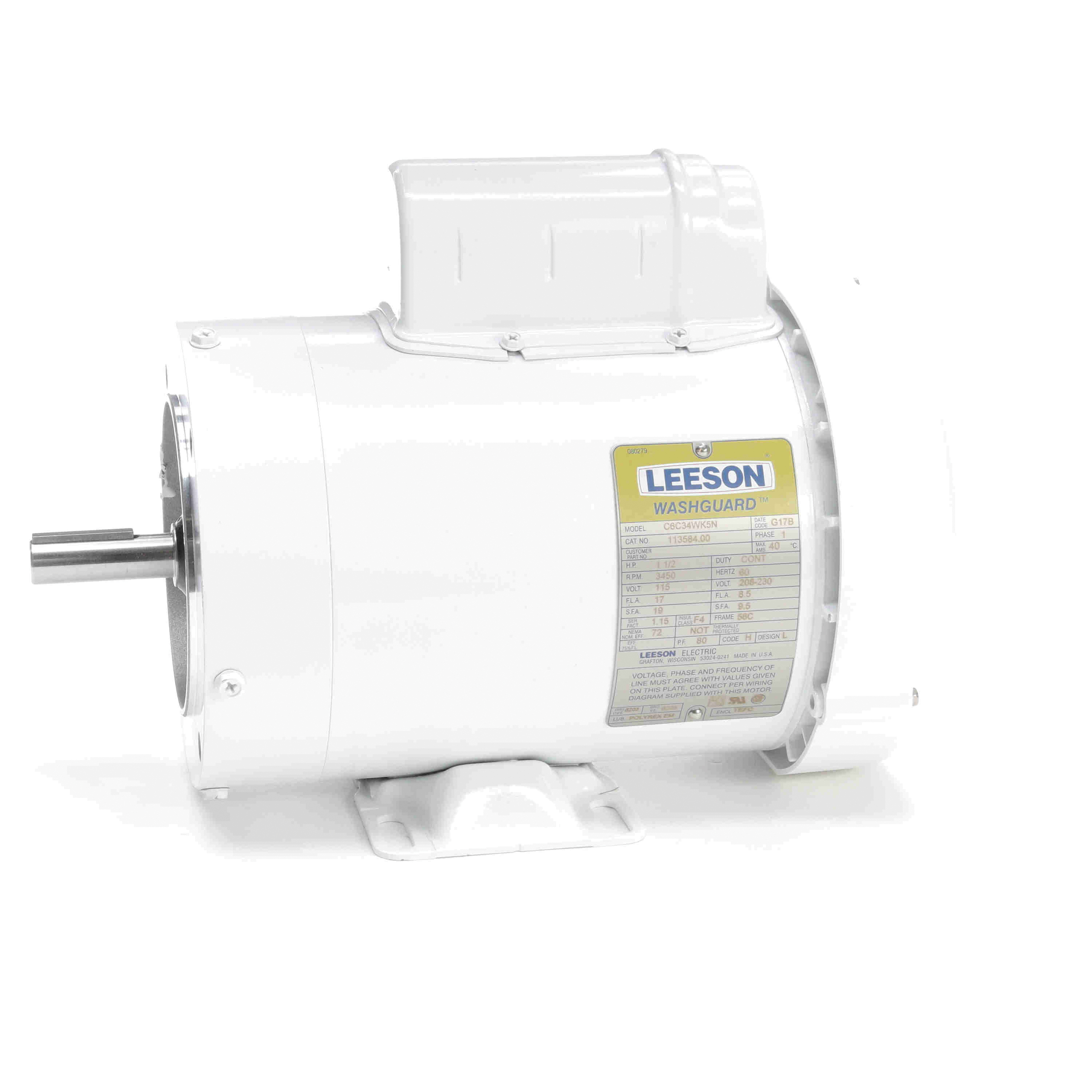

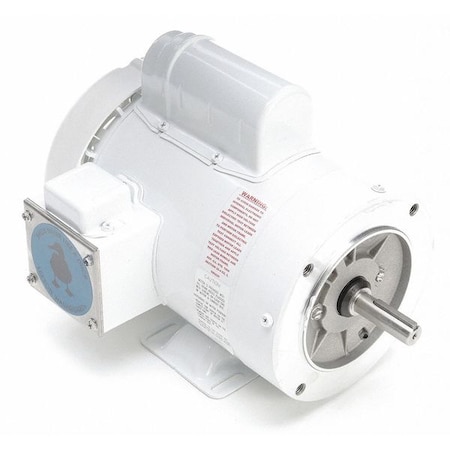

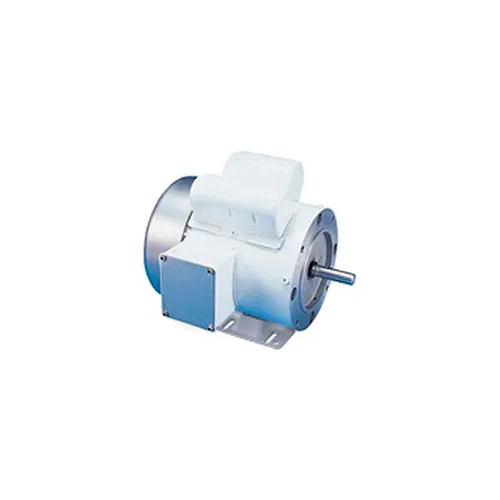

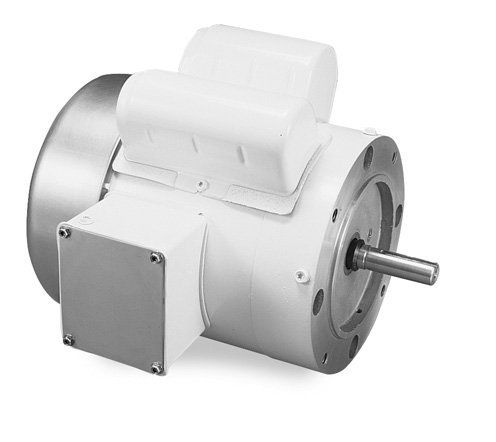

Leeson Electric 113584.00 - C6C34WK5 N AC Washdown Duty Motor - General Purpose Motor - (Painted), 1 ph, 1-1/2 hp, 3600 rpm, 115/208-230 V, 56C Frame, TEFC Enclosure, 60 Hz

Leeson Electric 113584.00 - C6C34WK5 N AC Washdown Duty Motor - General Purpose Motor - (Painted), 1 ph, 1-1/2 hp, 3600 rpm, 115/208-230 V, 56C Frame, TEFC Enclosure, 60 Hzzoom

Attributes

Key Value
Amperage Rating17/8.5 A
ApplicationWashguard
Application TypeGeneral Purpose AC Moto.
ApprovalsCSA, UL
Bearing TypeBall, 12.69
Body Dia.7.4 in
Bolt Circle Dia.5 7/8 in
CategoryElectric Motor
Class/GroupC6C34WK5
CompositionSteel
Conduit BoxSplit Clam Shell with R.
ConstructionRolled steel
Country of Origin (subj.United States
Description:1.5HP.- C-FACE WITH BAS.
Dimensions12.37 in L x 8.75 in H
Drain Plugs(4) Each End, (2) In Co.
Drive End Bearing Size6205
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency72
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Endshield MaterialCast Aluminum
EndshieldsCast Aluminum
Estimated Weight36.00
Family SeriesLeeson Motors, Washguar.
FinishEpoxy
FL Amps17/8.5
FL Efficiency72
Frame56C
Frame MaterialRolled steel
Frame RemarksFOOTED, Washdown
Frequency60
Frequency Rating60 Hz
Full Load Amps8.5
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp, 1.5 hp
HP1.5, 1 1/2, 1.50
Hz60
IncludesSplice Kit
Ins. ClassF
Insulation ClassClass F, F
Inverter RatedNo
ItemWashdown Motor
Item ConditionFACTORY NEW
Item Number113584.00
KW1.1
Length Less Shaft10 7/16 in
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113584.00
Manufacturers Warranty .1 yr
MaterialRolled steel
Max. Ambient Temp.40 Degrees C
MFG Part #:113584.00
Model NumberC6C34WK5
Motor ApplicationWashdown
Motor BearingsBall
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCCW, CW
Motor Thermal ProtectionNone
mountingC-face w/ rigid base
MountingFoot Mount
Mounting TypeC-Face Less Base, C-Fac.
Nameplate RPM3,450
NEMA DesignB
NEMA Frame56C
Net Weight36 lbs
No. of Speeds1
Nominal Efficiency72 %
Nominal Voltage120 VAC, 208 VAC, 240 V.
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12 3/8 in, 12.69 "
Overload ProtectionNone
Part Number113584.00
Phase1, Single, 1 ph
Product SeriesWashguard
Product TypeWashdown Duty, Washdown.
Removable BaseNo
RotationSelective CCW
RPM3600, 3400 - 3600, 3,60.
RPM Range3,001-3,600
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625, UL;CSA
Shaft Length1.88, 1 7/8 in
Shaft MaterialStainless Steel
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesCapacitor Start Motors
Speed (RPM)3450
StandardsBISSC, CE, CSA, UL
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720012109
Usable @ 200VNo
Usable @ 208VYes
Voltage110-120V, 208V, 230V, 1.
Voltage Compatibility115/200-230V AC, 115/20.
Volts115/208/230
Weight36 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com113584443.01In StockLEESON443.0 @ 1
AmazonTPB0773VDL51526.811In Stock3Leeson Electric526.81 @ 1
thumbzoomZoroG4241925592.991In StockLeeson35.25592.99 @ 1
thumbzoomMRO Supply2525682618.021In StockLeeson618.02 @ 1
thumbzoomapexindustrialautomation.com113584.00663.18130Leeson663.18 @ 1
thumbzoomDealers Electric113584.00711.261In StockLeeson36.0711.26 @ 1
thumbzoommotorsandcontrol.comLE-113584.00760.71In StockLeeson Electric36.0760.7 @ 1
us.rs-online.com73397145766.681In StockLeeson766.68 @ 1
thumbzoomGalco113584.00-LEES766.681In StockLeeson36.0766.68 @ 1
thumbzoomGlobal IndustrialWBB228197769.01In Stock17Leeson769.0 @ 1
kscdirect.comLEE 113584.00797.171In StockLEESON ELECTRIC CORPORATION797.17 @ 1
thumbzoomPurvis113584LEE850.581In StockLEESON850.58 @ 1
thumbzoomWalker Industrial113584-00910.01In Stock17Leeson910.0 @ 1
thumbzoomRaptor SuppliesAJ2QKF1239.71099851In StockLEESON1239.7109985 @ 1
thumbzoompumpproducts.com113584.001306.91In StockLeeson1306.9 @ 1
