Generic 02045883

Generic 02045883

mpn:
113587.00
brand:
LEESON ELECTRIC
manufacturer:
LEESON ELECTRIC
MPN:
113587.00
Weight:
2.0625
Weight:
2.0625 LB
Preferred Price:
663.75
Price:
663.75
Min Simple Price:
375.0
Absolute Min Price:
532.5
Min Price:
532.5
Dimensions:
[15.0, 12.0, 11.0]
qty:
1
simpleSku:
MDE3Mg:::113587.00
sku:
MDE3Mg::YF:113587.00@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
generic
HazMat:
False
DropShip:
False

Attributes

Key ^Value
Alternate Mfr Part NumberC6T17VK1H
Amperage Rating2.5 A
Amps2.7-2.5/1.3
ApplicationGeneral Purpose
Bearing Type, Bearings, Drive End Bearing Type, Motor Bearings, Opp. Drive End Bearing TypeBall
Bolt Circle Dia.5 7/8 in
Brand, ManufacturerLeeson
CategoryElectric Motor
Construction, Enclosure Material, Frame MaterialRolled Steel
Current Rating2.7 to 2.5 ; 1.3 A
Current Stock7
Description:3/4HP..1725RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.W
Dimensions10.56 in L
Drive End Bearing Size6205
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency80.0%
Efficiency, FL Efficiency80
Efficiency, Nominal Efficiency80 %
Enclosure TypeTENV (Totally Enclosed Non Ventilated), Totally Enclosed Non Ventilated
Enclosure, Enclosure TypeTENV
Estimated Weight30.00
FL Amps2.7-2.5/1.25
Frame56C
Frame RemarksFOOTED
Frame Remarks, Motor ApplicationWASHDOWN
Frequency60 Hz
Frequency Rating50/60 Hz
Frequency, Hertz, Hz60
Horsepower3/4 hp
Horsepower Rating0.75 HP
HP3/4, 0.75
Insulation ClassClass B, F
Insulation TypeClass F
International ShippingNo
ItemWashdown Motor
Item ConditionFACTORY NEW
KW0.56
Length Less Shaft8 5/8 in
ManufacturerLeeson Electric
Manufacturer, Supplier:LEESON ELECTRIC CORPORATION
Manufacturers Warranty Length1 yr
MaterialStainless Steel
Maximum Ambient Temperature40? C
MFG Part #:, Mpn, Part Number113587.00
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
Motor Frame MaterialSteel
Motor Mounting TypeFace/Base
Motor Shaft RotationCCW, CW
Motor Shell Length5.50"
Motor Thermal ProtectionNone
MountingFoot Mount
mountingC-face w/ rigid base
Mounting TypeRigid
Mounting, Mounting TypeRigid Base
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing Size6203
Overall Length10.58", 10 9/16 in
Phase3, Three, 3 Phase
Product TypeWashdown Duty, Three Phase
RotationReversible
RPM1725 RPM, 1700 - 1800, 1800
RPM Range1,701-1,800
RPM, Speed (RPM)1725
Service Factor1.15, 1.149
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625
Shaft Length1.88", 1.88, 1 7/8 in
Shaft Size5/8 in Dia
Ship Weight33 lbs.
SKUZO-G4609136
Special FeaturesC Face With Base, 80% Full Load Efficiency, Service Factor - 1.15
Speed1800 rpm
StandardsUL Recognized
SubCategoryMotors/Ac Motors
Supply Voltage208-230/460 VAC
Temperature Rating40 deg C
TypeSquirrel Cage Induction Run
UPC, UPC Code, UPC:691720012123
Voltage208-230/460V AC, 208V, 230V, 460V
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Voltage, Volts208-230/460
Volts208/230/460

All Prices

ImgSellerSupplier SKURequested Price ^Calc MOQ PriceMOQIn StockLead TimeBrandWeightPreferred Tier
thumbzoomelectricmotorwholesale.com113587375.0375.01In StockLEESON375.0 @ Qty: 1+
AmazonTPB0773TMLTQ442.34442.341In Stock3Leeson Electric442.34 @ Qty: 1+
thumbzoomMRO Supply2525684517.36517.361In StockLeeson517.36 @ Qty: 1+
thumbzoomemotorpro.com113587.00550.5550.51In StockLeeson33.0550.5 @ Qty: 1+
thumbzoomGlobal IndustrialWBB228254592.0592.01In Stock17Leeson592.0 @ Qty: 1+
thumbzoomDealers Electric113587.00595.42595.421In StockLeeson33.0595.42 @ Qty: 1+
thumbzoomZoroG4609136622.99622.99119Leeson31.4622.99 @ Qty: 1+
thumbzoommotorsandcontrol.comLE-113587.00636.81636.81131Leeson Electric30.0636.81 @ Qty: 1+
us.rs-online.com72239558651.82651.821In StockLeeson651.82 @ Qty: 1+
kscdirect.comLEE 113587.00667.44667.441In StockLEESON ELECTRIC CORPORATION667.44 @ Qty: 1+
thumbzoomsimsupply.comZO-G4609136722.33722.3317Leeson722.33 @ Qty: 1+
thumbzoomWalker Industrial113587-00761.9761.91In Stock10Leeson761.9 @ Qty: 1+
thumbzoomcbtcompany.com113587.00770.34770.341In StockLeeson Electric770.34 @ Qty: 1+
thumbzoompumpproducts.com113587.001042.681042.681In StockLeeson1042.68 @ Qty: 1+
thumbzoomRaptor SuppliesAJ2QKH1044.6552091044.6552091In StockLEESON1044.655209 @ Qty: 1+
B09J8N8PYF
Generic 02045883

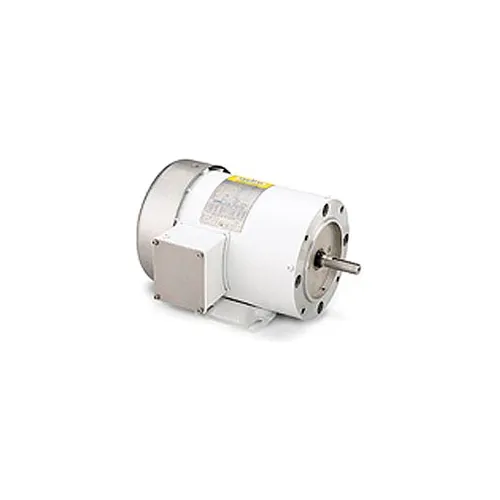

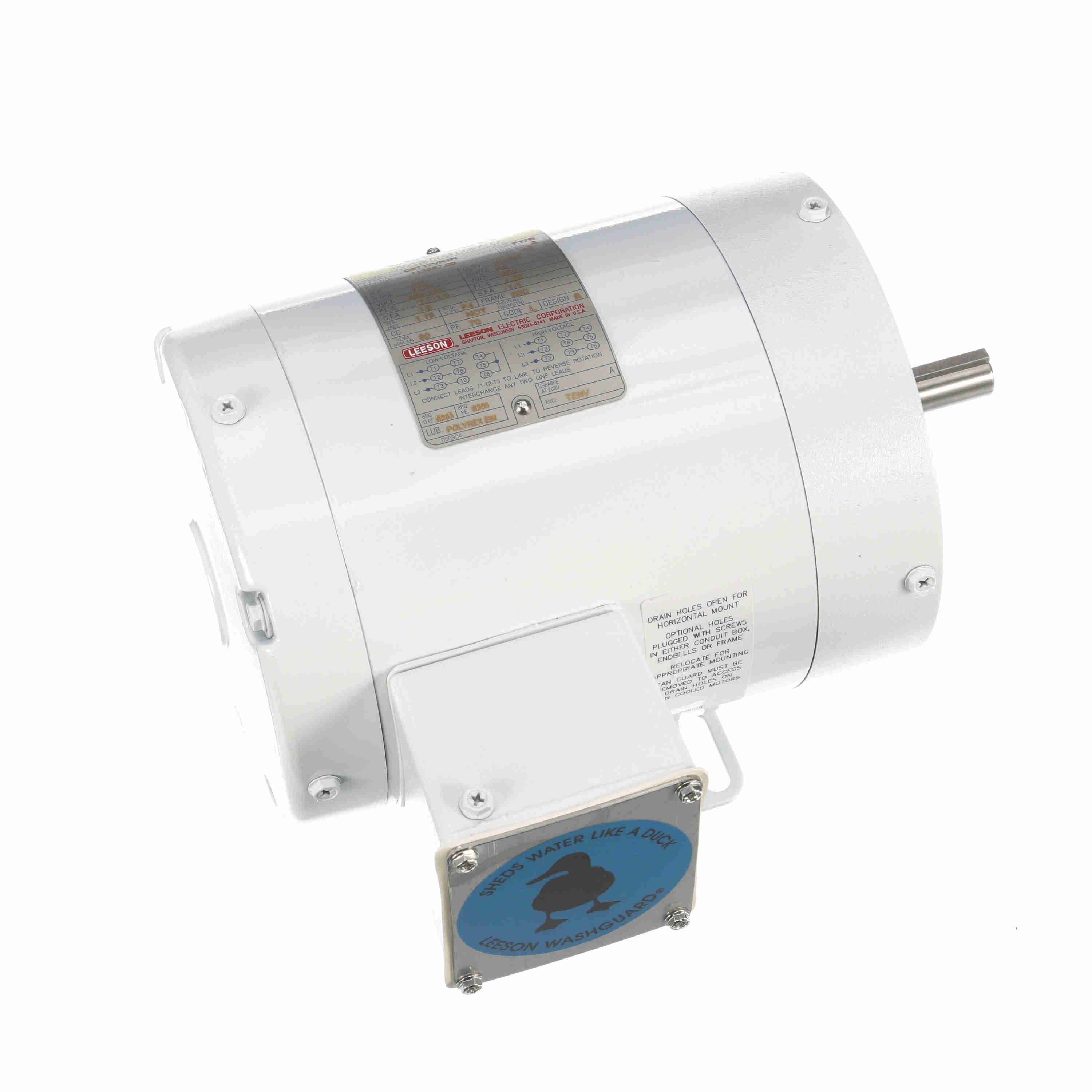

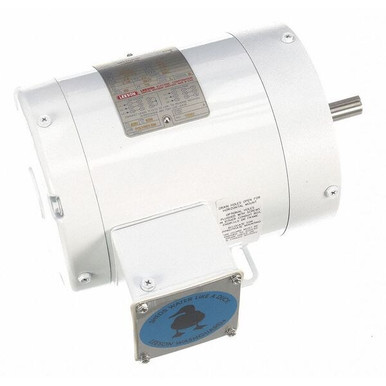

Leeson Electric 113587.00 - C6T17VK1 H AC down Duty Motor - General Purpose Motor - (Painted), 3 ph, 3/4 hp, 1800 rpm, 208-230/460 V, 56C Frame, TENV Enclosure, 60 Hz

Leeson Electric 113587.00 - C6T17VK1 H AC down Duty Motor - General Purpose Motor - (Painted), 3 ph, 3/4 hp, 1800 rpm, 208-230/460 V, 56C Frame, TENV Enclosure, 60 Hzzoom
