mpn:
brand:
manufacturer:
MPN:
Description:

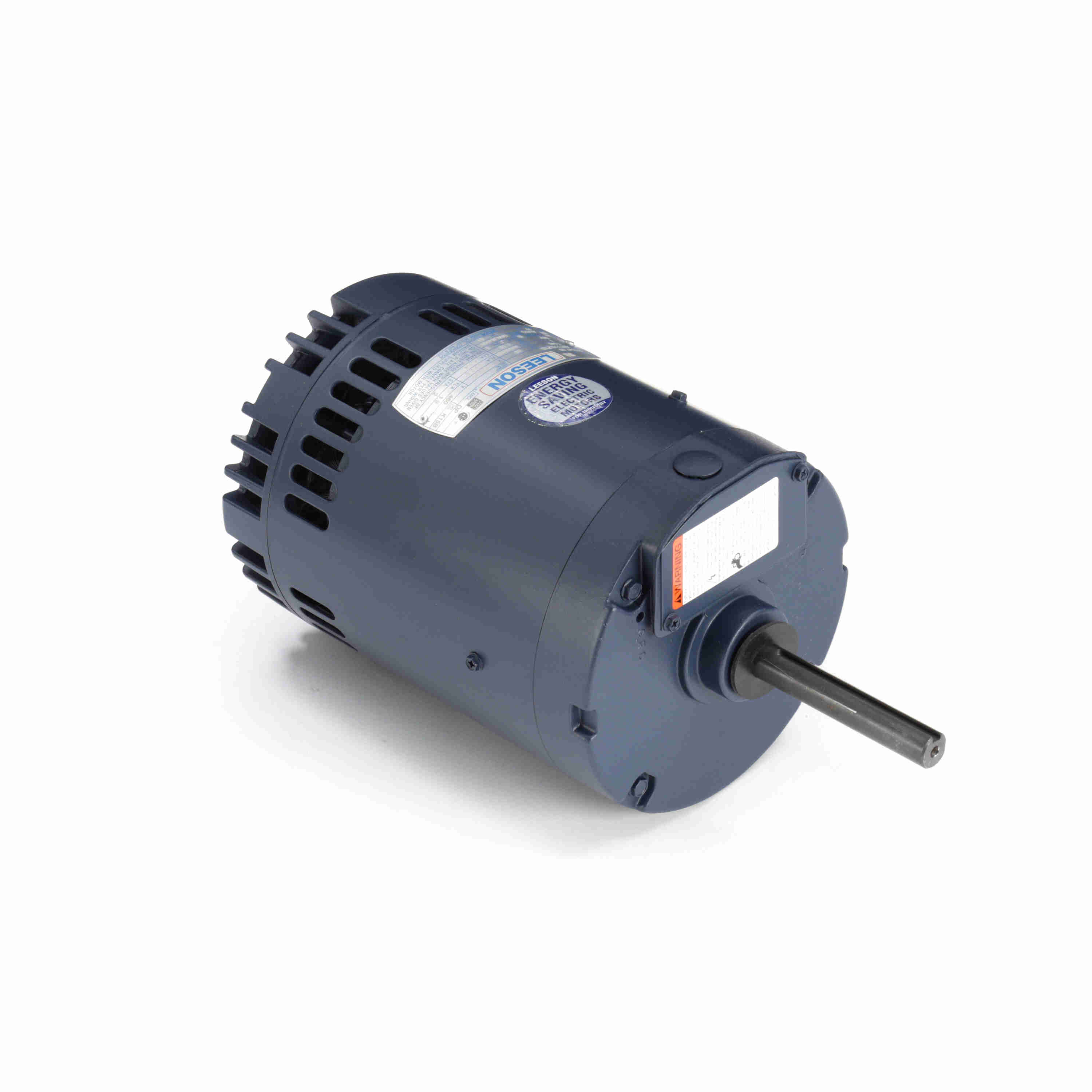

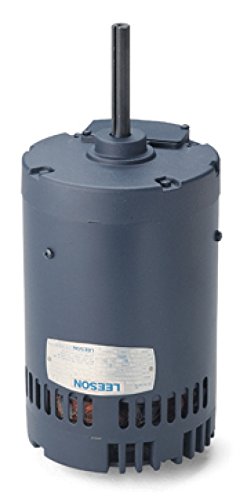

Leeson Electric, 116772.00, .5HP, 1140RPM, 3PH, 208V;230V;460V, 56Z Frame, Standard Flange, Foot Mount, DP, Fan & Blower Motor
Weight:
25.0
Weight:
25.0 LB
Preferred Price:
213.37
Price:
213.37
Min Simple Price:
120.55
Absolute Min Price:
171.18
Min Price:
171.18
Dimensions:
[13.0, 1.0, 1.0]
qty:
21
simpleSku:
MzkwMQ:::116772.00
sku:
MzkwMQ::3Q:116772.00@y0
condition:
11
seller:
Galco
amzMan:
leeson electric
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Amperage Rating | 3 to 2.8/1.4 A |
| Amps | 3.0-2.8/1.4 |
| Application Type | Condenser Fan Motors, General Purpose HVAC Motors |
| Approvals | CSA, UL |
| Bearing Type | Ball, 12.56 |
| Bearings | Ball |
| Category | Electric Motor |
| Class/Group | A6T11OZ3 |
| Composition | Steel |
| Description: | Replaced by 056T11O5300 (X500) once inventory is depleted - ..1/2HP..1200R |
| Dimensions | 12.56 in L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 66.5%, 66.5 |
| Enclosure | OPAO, ODPAO, Drip Proof |
| Enclosure Material | Rolled Steel |
| Enclosure Type | DP (Dripproof), DPAO |
| Family Series | Leeson Motors, HVAC Series |
| Frame | 56Z |
| Frame Material | Rolled Steel |
| Frequency | 60 |
| Frequency Rating | 60 Hz |
| Gross Weight | 20.59 lbs |
| Horsepower | 0.5 hp, 1/2 hp |
| HP | 0.50, 1/2 |
| Hz | 60 |
| Insulation Class | B, Class B |
| Item Condition | FACTORY NEW |
| Item Number | 116772.00 |
| KW | 0.37 |
| Manufacturer | LEESON ELECTRIC CORPORATION, Leeson |
| Manufacturer Part Number | 116772.00 |
| Material | Rolled Steel |
| Maximum Ambient Temperature | 40? C |
| MFG Part #: | 116772.00 |
| Model Number | A6T11OZ3 |
| Motor Shell Length | 5.00" |
| Mounting | Round |
| mounting | Special |
| Mounting Type | Foot Mount, Rigid, Round/C-Face/Footless |
| NEMA Frame | 56Y |
| Net Weight | 20.59 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 VAC |
| Number of Poles | 6 |
| Number of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 12.56", 12.56 " |
| Phase | 3, 3 ph |
| Product Series | HVAC |
| Product Type | Three Phase |
| Rotation | Reversible |
| RPM | 1,200 RPM, 1140, 1100 - 1200, 1200 |
| Service Factor | 1.15 |
| Shaft Diameter | 0.625", 0.625, UL;CSA |
| Shaft Length | 3.75", 3.75 |
| Shaft Size | 0.63 in Dia x 3.75 in L |
| Ship Weight | 25 lbs. |
| Speed | 1140 rpm |
| Supplier: | LEESON ELECTRIC CORPORATION |
| Thermal Protection | Automatic |
| Type | Fan/Blower Service, General Purpose |
| UPC: | 691720348833 |
| Voltage | 208-230/460 |
| Volts | 208/230/460, 208-230/460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Galco | 116772.00-LEES | 120.55 | 120.55 | 1 | 1 | Leeson | 20.59 | 120.55 @ Qty: 1+ | |
 | MRO Supply | 2526024 | 148.83 | 148.83 | 1 | In Stock | Leeson | 148.83 @ Qty: 1+ | ||
 | emotorpro.com | 116772.00 | 155.51 | 155.51 | 1 | In Stock | Leeson | 25.0 | 155.51 @ Qty: 1+ | |
| kscdirect.com | LEE 116772.00 | 176.01 | 176.01 | 1 | In Stock | LEESON ELECTRIC CORPORATION | 176.01 @ Qty: 1+ | |||
 | Walker Industrial | 116772-00 | 200.92 | 4942.632 | 60 | In Stock | 10 | Leeson | 200.92 @ Qty: 60+ | |
 | electricmotorwholesale.com | 116772 | 344.0 | 344.0 | 1 | In Stock | LEESON | 344.0 @ Qty: 1+ | ||
 | Dealers Electric | 116772.00 | 375.94 | 375.94 | 1 | In Stock | Leeson | 25.0 | 375.94 @ Qty: 1+ | |
| AmazonTP | B0773TX43Q | 439.1 | 439.1 | 1 | In Stock | 5 | Leeson Electric | 439.1 @ Qty: 1+ | ||
 | Raptor Supplies | AJ2QWB | 958.440483 | 958.440483 | 1 | In Stock | LEESON | 958.440483 @ Qty: 1+ |
