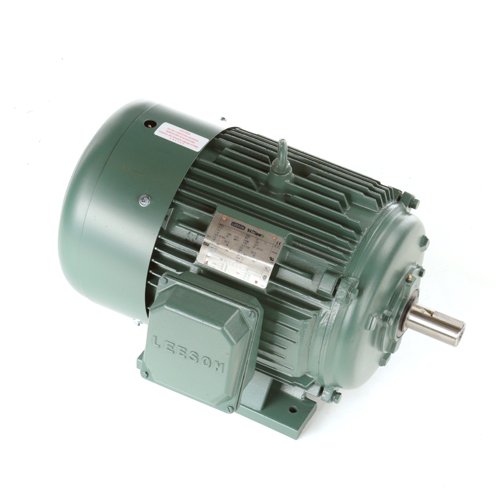

Leeson Electric 170224.60 - General Purpose Motor- Special Voltage - 3 ph, 25 hp, 3600 rpm, 575 V, 284TS Frame, Totally Enclosed Fan Cooled Enclosure, 60 Hz, Rigid base Mount

Leeson Electric 170224.60 - General Purpose Motor- Special Voltage - 3 ph, 25 hp, 3600 rpm, 575 V, 284TS Frame, Totally Enclosed Fan Cooled Enclosure, 60 Hz, Rigid base Mountzoom

Attributes

Key Value
Amperage Rating22.6 A
Amps22.6
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC284T34FB6
CompositionCast Iron
ConstructionCast Iron
Description:..25HP..3550RPM.284TS.T.
Dimensions24.88 in L x 16.56 in H
Drive End Bearing Size6311
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency92.4%, 92.4
Efficiency %93 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialCast Iron
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight383.00
Family SeriesLeeson Motors, Special .
FL Amps22.6
FL Efficiency92.4
Frame284TS
Frame MaterialCast Iron
Frame Remarks575 VOLT
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower25 hp
HP25
Hz60
Insulation ClassClass F, F
Inverter DutyYes - Constant 10:1
Item ConditionFACTORY NEW
Item Number170224.60
KW18.7
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number170224.60
MaterialCast Iron
Maximum Ambient Tempera.40? C
MFG Part #:170224.60
Model NumberC284T34FB6
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid, C-Fa.
NEMA Frame284TS
Net Weight383 lbs
Nominal Voltage575 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6309
Opp. Drive End Bearing .Ball
Overall Length24.88", 24.88 "
Part Number170224.60
Phase3, 3 ph
Product SeriesSpecial Voltage
Product TypeGeneral Purpose, Three .
RotationReversible
RPM3550, 3600, 3400 - 3600.
Service Factor1.15, 1.25
Shaft DiameterUL;CSA, 1.625, 1.625"
Shaft Length3.25, 3.25"
Shaft Size1.63 in Dia x 3.25 in L
Ship Weight393 lbs.
Speed3550 rpm
Speed (RPM)3550
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720028384
Voltage575V, 575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply25266972291.671In StockLeeson2291.67 @ 1
AmazonTPB0773T8XB82984.361In Stock3Leeson Electric2984.36 @ 1
thumbzoommotorsandcontrol.comLE-170224.603143.381In StockLeeson Electric383.03143.38 @ 1
thumbzoomDealers Electric170224.603161.721In StockLeeson393.03161.72 @ 1
thumbzoomZoroG24834493273.011Leeson3273.0 @ 1
thumbzoomGalco170224.60-LEES3288.461In StockLeeson383.03288.46 @ 1
thumbzoomemotorpro.com170224.603304.691In StockLeeson393.03304.69 @ 1
thumbzoomWalker Industrial170224-603562.51In Stock10Leeson3562.5 @ 1
kscdirect.comLEE 170224.603859.941In StockLEESON ELECTRIC CORPORATION3859.94 @ 1
