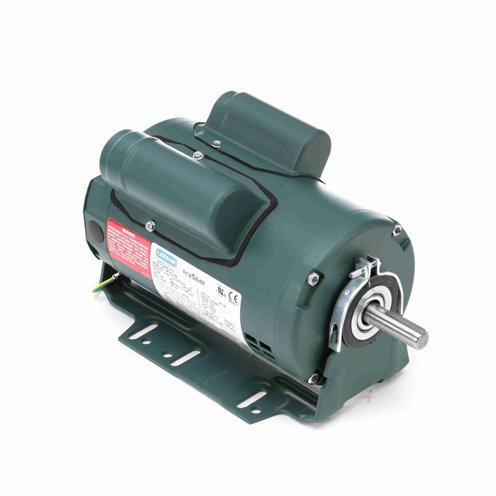

Leeson Electric E100109.00 - General Purpose Motor - 1 ph, 1/4 hp, 1800 rpm, 115/230 V, 48 Frame, Drip Proof Enclosure, 60 Hz, Resilient Base Mount

Leeson Electric E100109.00 - General Purpose Motor - 1 ph, 1/4 hp, 1800 rpm, 115/230 V, 48 Frame, Drip Proof Enclosure, 60 Hz, Resilient Base Mountzoom

Attributes

Key Value
Alternate Mfr Part Numb.A4K17DR18A
Amperage Rating2.4/1.2 A
Application TypeFan and Blower Motors, .
Bearing TypeBall
CategoryElectric Motor
CompositionSteel
Current Rating2.4 ; 1.2 A
Description:1/4HP..1725RPM.48.DP.11.
Dimensions11.14 in L x 7.32 in H
Duty CycleContinuous
Efficiency68.5 %
Efficiency %68.5 %
EnclosureODP, Drip Proof
Enclosure TypeDrip Proof, DP
Family SeriesLeeson Motors
Frame48
Frame RemarksResilient Base
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower0.25 HP, 1/4 hp
Horsepower Rating0.25 HP
HP0.25
Insulation ClassClass F
Insulation TypeClass F
Item ConditionFACTORY NEW
Item NumberE100109.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberE100109.00
MaterialRolled Steel
MFG Part #:E100109.00
mountingResilient Base
Mounting TypeResilient Base
NEMA Frame48
Net Weight0 lbs
Nominal Voltage120 VAC, 240 VAC
Number of Speeds1
Phase1, 1 Phase, 1 ph
RotationSelective CW
RPM1725 RPM, 1800, 1,725 R.
Service Factor1.35
Shaft Size1/2 in Dia x 1-1/2 in L
Special FeaturesService Factor - 1.35, .
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/230 VAC
TypeCapacitor Start Capacit.
UPC Code691720990421
UPC:691720990421
Voltage (AC)110-120 VAC, 230 VAC
Volts115/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comE100109253.01In StockLEESON253.0 @ 1
AmazonTPB078XPDXD8343.051In Stock5Leeson343.05 @ 1
AmazonSCB078XPDXD8343.051In StockLeeson343.05 @ 1
thumbzoomGalcoE100109.00-LEES419.011In StockLeeson419.01 @ 1
thumbzoomDealers ElectricE100109.00441.771In StockLeeson16.0441.77 @ 1
us.rs-online.com72239168478.121In StockLeeson478.12 @ 1
kscdirect.comLEE E100109.00567.51In StockLEESON ELECTRIC CORPORATION567.5 @ 1
factorysupplyoutlet.comQP60MB621.531In StockLEESON621.53 @ 1
