Generic 06958377

B09J8P75LB

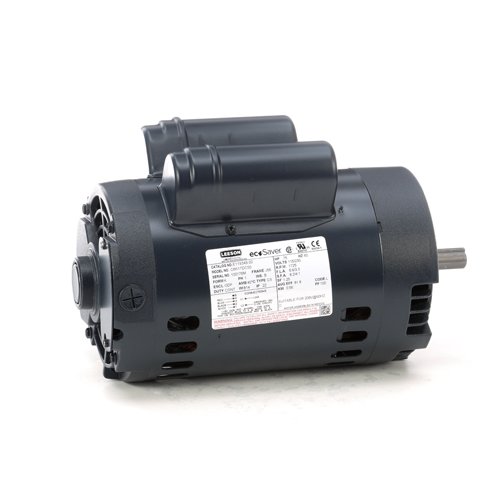

Leeson Electric E119349.00 - General Purpose Motor - 1 ph, 3/4 hp, 1800 rpm, 115/230 V, 56C Frame, Drip Proof Enclosure, 60 Hz, Round Mount

Leeson Electric E119349.00 - General Purpose Motor - 1 ph, 3/4 hp, 1800 rpm, 115/230 V, 56C Frame, Drip Proof Enclosure, 60 Hz, Round Mountzoom

Attributes

Key Value
Amperage Rating6.6/3.3 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CategoryElectric Motor
CompositionSteel
Country of Origin (subj.Mexico
Description:..3/4HP..1800RPM.56C.OD.
Dimensions13.15 in L
Efficiency %81.8 %
EnclosureODP, Drip Proof
Enclosure TypeDP
Family SeriesLeeson Motors
Frame56C
Frame RemarksFOOTLESS
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight40.83 lbs
Horsepower0.75 hp, 3/4 hp
HP0.75
Insulation ClassClass B
Item ConditionFACTORY NEW
Item NumberE119349.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part NumberE119349.00
MaterialRolled Steel
MFG Part #:E119349.00
mountingC-face (NO base)
Mounting TypeC-Face, Round/C-Face/Fo.
NEMA Frame56C
Net Weight40.835 lbs
Nominal Voltage120 VAC, 240 VAC
Number of Speeds1
Phase1, 1 ph
RotationSelective CCW
RPM1800, 1,725 RPM
Service Factor1.25
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesCapacitor Start Motors
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720041376
Voltage (AC)110-120 VAC, 230 VAC
Volts115/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comE119349326.01In StockLEESON326.0 @ 1
AmazonTPB0773W2P3S422.251In Stock3Leeson Electric422.25 @ 1
thumbzoomSquare OneE119349.00453.61In StockLEESON ENERGY453.6 @ 1
thumbzoomGalcoE119349.00-LEES548.111In StockLeeson40.835548.11 @ 1
thumbzoomDealers ElectricE119349.00581.721In StockLeeson30.0581.72 @ 1
thumbzoomcbtcompany.comE119349.00674.171In StockLeeson Electric674.17 @ 1
thumbzoomWalker IndustrialE119349-00689.71In Stock17Leeson689.7 @ 1
thumbzoomZoroG1908231693.231In Stock10Leeson693.23 @ 1
kscdirect.comLEE E119349.00747.281In StockLEESON ELECTRIC CORPORATION747.28 @ 1
factorysupplyoutlet.comWB64DQ775.921In StockLEESON775.92 @ 1
