Leeson 116464.00

B00EPL1Y7S

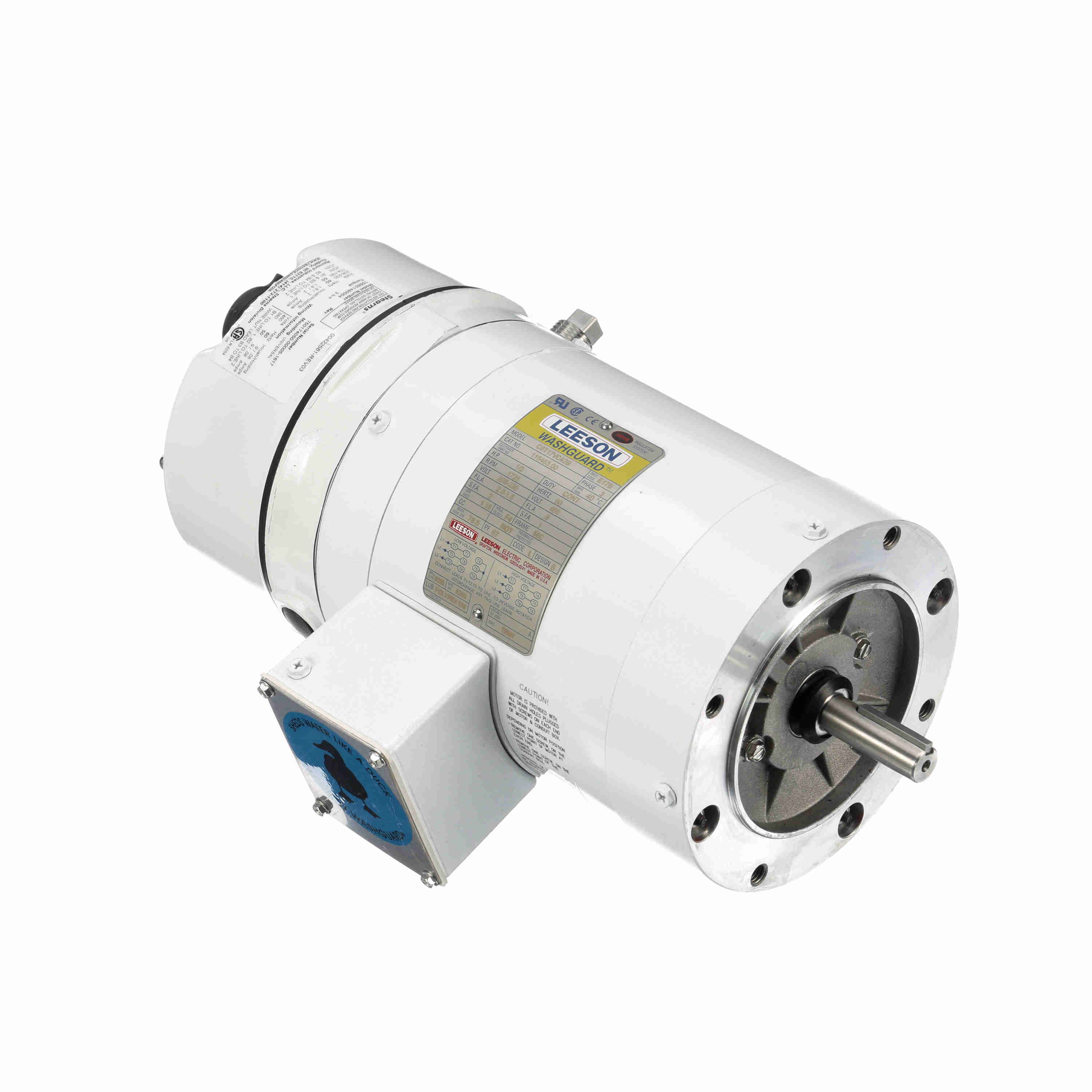

Leeson 116464.00 Washdown Duty Brakemotor, 3 Phase, 56C Frame, Round Mounting, 3/4HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequency

Leeson 116464.00 Washdown Duty Brakemotor, 3 Phase, 56C Frame, Round Mounting, 3/4HP, 1800 RPM, 208-230/460V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6T17VC44B
Amperage Rating2.7 to 2.5/1.25 A
Amps2.7-2.5/1.3
Application TypeBrake Motors
ApprovalsCSA, UL
Bearing TypeBall, 15
BearingsBall
CategoryElectric Motor
Class/GroupC6T17VC44
CompositionSteel
Current Rating2.7 to 2.5 ; 1.3 A
Description:3/4HP..1725RPM.56.TENV..
Dimensions15 in L
Duty CycleContinuous
Efficiency80 %, 80.0%
Efficiency %80 %
EnclosureTENV, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTENV (Totally Enclosed .
Family SeriesLeeson Motors, Brakemot.
Frame56C
Frame RemarksWASHDOWN, FOOTLESS
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower0.75 hp, 3/4 hp
Horsepower Rating0.75 hp
HP3/4, 0.75
Hz60
Insulation ClassClass F, F
Insulation TypeClass F
Item ConditionFACTORY NEW
Item Number116464.00
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number116464.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:116464.00
Model NumberC6T17VC44
Motor Shell Length6.00"
MountingRound
mountingC-face (NO base)
Mounting TypeRound/C-Face/Footless, .
NEMA Frame56C
Net Weight43 lbs
Nominal Voltage208 VAC, 240 VAC, 480 V.
Number of Poles4
Number of Speeds1
Overall Length15 ", 15.00"
Phase3, 3 ph, 3 Phase
Product SeriesBrakemotors
Product TypeThree Phase
RotationReversible
RPM1725 RPM, 1725, 1,800 R.
Service Factor1.15
Shaft Diameter0.625", UL;CSA
Shaft Length1.88"
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight43 lbs.
Special FeaturesWashdown Duty Motors, S.
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage208-230/460 VAC
TypeSquirrel Cage Induction.
UPC Code691720989043
UPC:691720989043
Volts208/230/460, 208-230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comLEE 116464.001337.851In StockLEESON ELECTRIC CORPORATION1337.85 @ 1
thumbzoomGalco116464.00-LEES1468.051In StockLeeson43.01468.05 @ 1
thumbzoomDealers Electric116464.001481.31In StockLeeson43.01481.3 @ 1
us.rs-online.com722396001603.121In StockLeeson1603.12 @ 1
thumbzoomemotorpro.com116464.001629.141In StockLeeson43.01629.14 @ 1
thumbzoomWalker Industrial116464-001756.231In Stock10Leeson1756.23 @ 1
Global IndustrialWBB2280931830.01In Stock39LEESON MOTORS1830.0 @ 1
thumbzoompumpproducts.com116464.002102.111In StockLeeson2102.11 @ 1
thumbzoomRaptor SuppliesAJ2QRV2295.11511451In StockLEESON2295.1151145 @ 1
