Description:

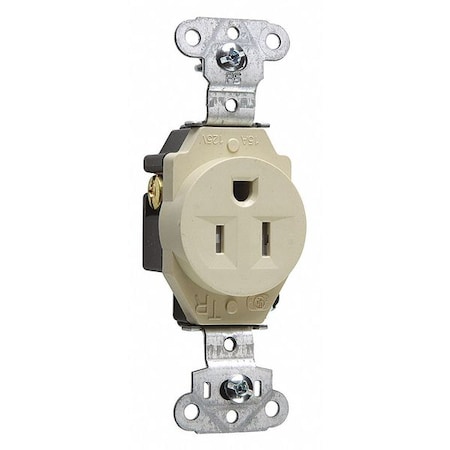

Receptacle, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Ivory, Housing Material Nylon (Face), PVC (Back Body), Mount Type Flush, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Receptacle Type Single, Resistance Properties Corrosion Resistant, Tamper Resistant, Standards cULus Listed, UL 498, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side
Attributes
| Key ^ | Value |
|---|---|
| Amps - Plugs and Receptacles | 15 |
| Amps - Plugs and Receptacles | 15 A |
| Application Environment | Commercial |
| Color - Plugs and Receptacles | Ivory |
| Face Diameter | 1.4 in |
| Face Plate Height | 2 in |
| Face Plate Width | 1.3 in |
| Item, Item - Plugs and Receptacles | Receptacle |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Mount Hole Center-to-Center Height | 3.7 in |
| Mounting Type - Plugs and Receptacles | Flush |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Outlet Type - Plugs and Receptacles | Single |
| Power Indicator, Surge Suppression, Weather Resistant - Plugs and Receptacles | No |
| Tamper Resistant | Yes |
| Voltage - Plugs and Receptacles | 125V AC |
| Wire Size | #14 - #10 |
| Wiring Method - Plugs and Receptacles | Back and Side |
