| Application | Packaging, Air, Robotics, Semi-Conductors, Textile, Vacuum |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Connection Type | BSPT x Push-to-Connect x Push-to-Connect |
| Country of Origin (subject to change) | France |
| End Connection Type | Push-to-Connect, Threaded |
| Fitting Body Material, Fitting Material | Polymer |
| Fitting Pipe Size, Fitting Side A Pipe Size | 1/2 in |
| Fitting Shape | Tee |
| Fitting Side A Connection Type | BSPT |
| Fitting Side B Connection Type, Fitting Side C Connection Type | Push-to-Connect |
| Fitting Side B Tube Outer Diameter, Fitting Side C Tube Outer Diameter, For Tube Outside Diameter | 14 mm |
| Fitting Thread Size | R1/2 BSPT |
| For Tube OD | 14 mm x 14 mm |
| Includes Pre-Applied Thread Sealant | Yes |

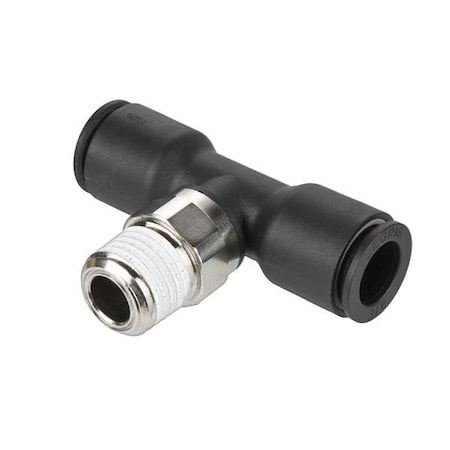

| Item | Metric Push-to-Connect Fitting |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 176 Degrees F |
| Minimum Operating Temperature | -4 Degrees F |
| Overall Length | 71 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical-Resistant, Corrosion-Resistant |
| System of Measurement | Imperial/Metric |
| Vacuum Rating | 755 mmHg |
