Description:

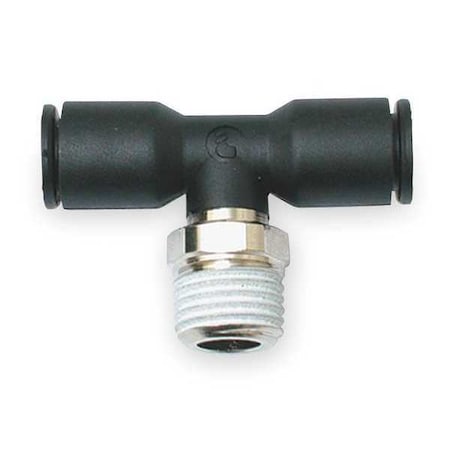

Male Branch Tee, Application Air, Cutting Fluids, Inert Gases, Color Black, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side C Connection Type MBSPT, Includes Pre-Applied Thread Sealant Yes, Fitting Side C Pipe Size 3/8 in, Fitting Side A Tube Outer Diameter 16 mm, Fitting Side B Tube Outer Diameter 16 mm, Fitting Material Nylon, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 175 Degrees F, Overall Length 77 mm
Attributes
| Key | Value |
|---|---|
| Basic Material | Plastic/Metal Combination |
| Body Material | Glass Filled Nylon and Nickel Plated Brass |
| Color | Black |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Connection Type | Tube x MNPT |
| Fitting Pipe Size | 3/8 in |
| Fitting Side A Tube Outer Diameter | 16 mm |
| Fitting Side B Tube Outer Diameter | 16 mm |
| Fitting Side C Pipe Size | 3/8 in |
| Fittings Sub-Category | Tees |
| For Tube Outside Diameter | 16 mm |
| Hex Size | 27 mm |
| Includes Pre-Applied Thread Sealant | Yes |
| Item | Male Branch Tee |
| Max. Pressure | 290 psi |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175 Degrees F |
| Pipe Size | 3/8 in |
| Release Ring Material | Nylon |
| Release Type | Button |
| Resistance Properties | Chemical-Resistant, Corrosion-Resistant |
| Special Features | With Thread Sealant |
| Temp. Range | -4 Degrees to 175 Degrees F |
| Tube Size | 16mm |
