| Application | Air, Packaging, Robotics, Semi-Conductors, Textile, Vacuum |
| Color | Black |
| Compatible Copper Tube Type | Not Applicable |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Connection Type | Push-to-Connect x Push-to-Connect x Push-to-Connect |
| Country of Origin (subject to change) | France |
| End Connection Type, Fitting Side A Connection Type, Fitting Side B Connection Type, Fitting Side C Connection Type | Push-to-Connect |
| Fitting Body Material, Fitting Material | Polymer |

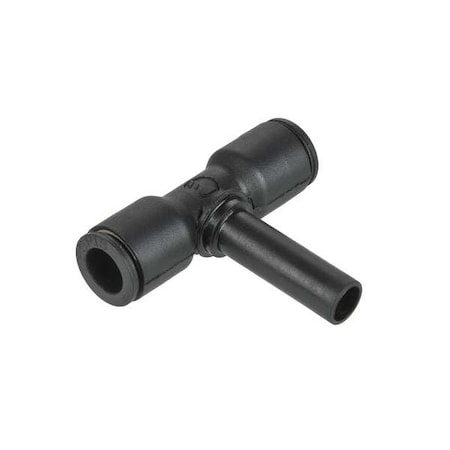

| Fitting Shape | Tee |
| Fitting Side B Tube Outer Diameter | 4 mm |
| Fitting Side C Tube Outer Diameter | 6 mm |
| For Tube OD | 4 mm x 6 mm |
| For Tube Outside Diameter | 4 mm, 6 mm |
| Includes Pre-Applied Thread Sealant | No |
| Item | Metric Push-to-Connect Fitting |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 176 Degrees F |
| Minimum Operating Temperature | -4 Degrees F |
| Overall Length | 1 1/4 in |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical-Resistant, Corrosion-Resistant |
| System of Measurement | Metric |
| Vacuum Rating | 755 mmHg |
