Leviton 2630-IG

B001UTIHQY

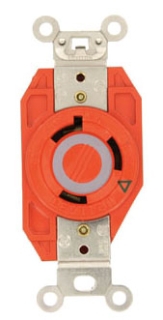

Leviton 2630-IG 30-Amp, 277-Volt, Flush Mounting Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX, Orange

Leviton 2630-IG 30-Amp, 277-Volt, Flush Mounting Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX, Orangezoom

Attributes

Key Value
(2P) Double PolePole
07847704549UPC
2630-IGStock Code
277 VoltVoltage (V)
3Wire Number
30 AmpAmperage
30A-277VAmp Rating
Amperage Rating30 A
Amperage Rating:30 A
CategoryElectrical Receptacles
ColorOrange
Color:Orange
Connection:Back Wired;Side Wired
Country of OriginMX
Country of Origin (subj.Multiple
Description:OR REC LOCK 2PO 3WI L7-.
Dielectric Strength:2000 (Min.) V
Dimensions46 in H x 1.69 in W x 1.
Environmental Condition.Flammability (Rated V-2.
For additional options .Notes
GradeIndustrial
Horsepower3 hp
Housing FinishOrange
ItemLeviton 2630-IG 30-Amp,.
L7-30RNEMA
LevitonBrand
Lifetime WarrantyWarranty
Locking Wiring DevicesFamily
ManufacturerLEVITON, Leviton Manufa.
MaterialPBT, PBT Plastic
Material:PBT
MFG Part #:2630-IG
Mounting:Box
NEMA RatingNEMA L7-30R
NEMA Rating:L7-30R
Number of Poles2
Number Of Poles:2
Number of Wires3
Number Of Wires:3
OrangeColor
Size:46 H x 1.69 W x 1.31 D .
Standard Pack:Order QTY must be in mu.
Standard:NEMA (WD-1, WD-6);ANSI .
Sub Brand:V-0-Max
Supplier:LEVITON
Temperature Rating-40 to 60 deg C
Temperature Rating:-40 to +60 DEG C
Terminal TypeBack/Side Wire
TypeIsolated Grounding
Type:Flush Mount Locking Rec.
UL CSA NOMUL Listed
UNSPSC39121406
UPC078477045497
UPC:078477045497
Voltage Rating277 VAC
Voltage Rating:277 V
Wire Size:14-8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomgordonelectricsupply.com2630-IG34.731In Stock755LEVITON34.73 @ 1
Dale-Electric2630-IG37.371In StockLeviton Manufacturing37.37 @ 1
thumbzoomZoroG316335638.981In Stock9Leviton38.98 @ 1
thumbzoomimprovedepot.com86539540.11In StockLeviton40.1 @ 1
us.rs-online.com7204986048.330In StockLeviton48.3 @ 30
kscdirect.comLEV 2630-IG48.311In StockLEVITON48.31 @ 1
thumbzoomturtle.comLEV 2630-IG54.221In StockLeviton54.22 @ 1
thumbzoomPlatt.com028808357.011In StockLeviton57.01 @ 1
thumbzoomLighting Supply2630-IG57.221In StockLeviton57.22 @ 1
thumbzoomRadwell2630-IG75.030In StockLEVITON75.0 @ 30
thumbzoombulbspro.com2630-IG89.791In StockLeviton89.79 @ 1
