mpn:
brand:
manufacturer:
MPN:
Description:

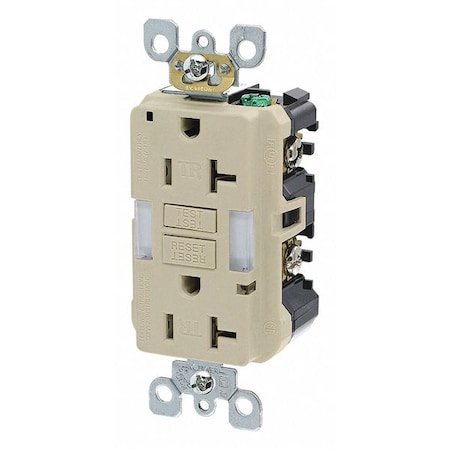

GFI Receptacle, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
Attributes
| Key ^ | Value |
|---|---|
| Amps - Plugs and Receptacles | 20 A |
| Application Environment | Commercial |
| Color - Plugs and Receptacles | Ivory |
| HP | 1 hp |
| Item | GFI Receptacle |
| Item - Plugs and Receptacles | GFCI Receptacle |
| Maximum Wire Size | 10 AWG |
| Minimum Wire Size | 14 AWG |
| Mounting Type - Plugs and Receptacles | Flush |
| NEMA Configuration | 5-20 |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Power Indicator, Self-Testing, Surge Suppression, Tamper Resistant | Yes |
| Special Features | Auto-Monitoring, Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination |
| Standards | CSA C22.2 - 144.1 (GFCI) and 42 (Receptacles), CSA Certified, CSA Certified LR-57811, NOM Certified, UL 943 Class A (GFCI) and 498 (Receptacles), UL Listed, UL Listed E48380 |
| Voltage - Plugs and Receptacles | 125V |
| Weather Resistant - Plugs and Receptacles | No |
| Wiring Method | Side |
| Wiring Method - Plugs and Receptacles | Back and Side |
