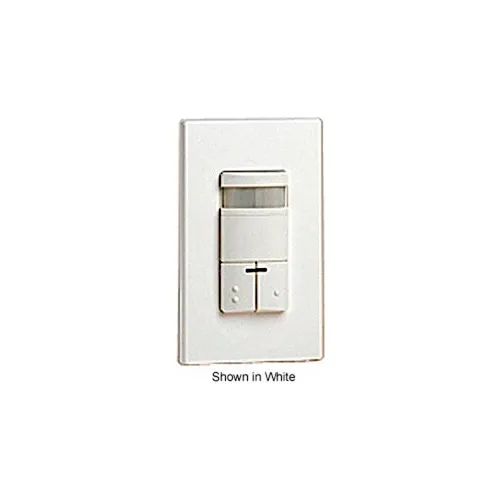

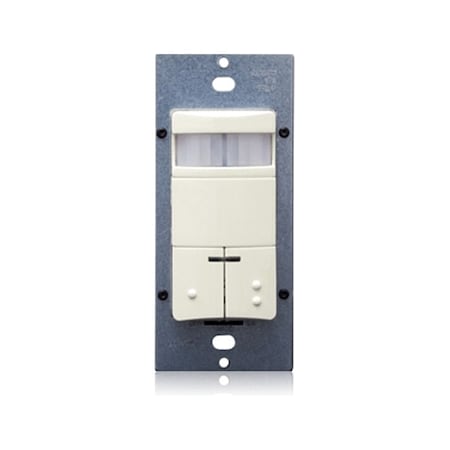

Leviton ODS0D-IDT

Leviton ODS0D-IDT

mpn:
ODS0D-IDT
brand:
Leviton
manufacturer:
Leviton
MPN:
ODS0D-IDT
Weight:
0.34
Weight:
0.34 LB
Preferred Price:
172.42
Price:
172.42
Min Simple Price:
94.22
Absolute Min Price:
133.79
Min Price:
133.79
Dimensions:
[2.0, 1.0, 1.0]
qty:
21
simpleSku:
MzY1MA:::ODS0D-IDT
sku:
MzY1MA::2A:ODS0D-IDT@y0
condition:
11
seller:
Zoro
amzMan:
leviton
HazMat:
False
DropShip:
False

Attributes

Key ^Value
07847727745UPC
120/277 VoltVoltage (V)
5-Year LimitedWarranty
800W@120V INC 1200VA@120V 2700VA@277V FLRating
Additional FeaturesDesigned with an Extensive Minor Motion Area Where Even Slight Body Movements will be Detected
Case Pack1
CategoryLighting Controls
ColorAlmond
Color FamilyBrown
Color, Color - Motion Sensing and DimmingLight Almond
Communication Method - Motion Sensing and DimmingHard Wired
Control OutputManual On/Automatic Off
Country of OriginMX - Mexico, MX
Coverage2100 sq-ft
Coverage Angle - Motion Sensor180 Degrees
Coverage at Suggested Mounting Height2,100 sq ft
Description/Special FeaturesBeep Warn - Unit Beeps 3 Times After Delayed-Off Time Expires, then Waits 10 Seconds Before Turning Lights Off, Convenient Dual Pushbuttons Provide Manual-On/Off Light Switching of Each Load At Any Time, Daylight Harvesting Light Sensor Measures the Ambient Light in the Room When it First Detects Motion, Exclusive Leviton H.I.S. Circuitry, Exclusive Walk-Through, False Detection Circuitry, Ground Connection Required. Gangable With Other Devices, Horizontal Field-Of-View May be Adjusted Between 180 Degrees and 60 Degrees Arc by Using Integral Blinders Located on Either Side of the Lens. No Mask-Ing Tape Required, Light Sensor Adjustable Ambient Light Override Ranges From Approximately 2Fc (20 Lux) to 500+Fc (5000+ Lux), Low-Profile Design Eliminates Obtrusive "Scanning-Device" Look, Manual-On/Auto-Off Mode for Installations Where Manual-on Switching is Required But Auto-Off Switching is Still Desired for CEC Title T24 Energy Savings, ODSOD-ID Classroom Mode, ODSOD-ID Conference Room Mode, Presentation Mode, Segmented Fresnel Lens Provides Optimum Sensitivity and Performance. Designed With An Extensive "Minor Motion" Area Where Even Slight Body Movements will be Detected, to Comply With CEC Title 24, Red Led Indicator Light Flashes When PIR Sensor Detects Motion to Verify Detection is Active, Unit Fits in Standard Single-Gang Wallbox and Replaces Two Single-Pole Wall Switches, Vandal Resistant PIR Lens
Description:LA PIR MOTION SENS 180D 120/277VAC
Dimensions1.75 in W x 1.83 in D x 4.06 in H
ECCNEAR99
Environmental Conditions:Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
For additional options and special quantity discounts, please contact our sales department 1-(855)-296-9508 x 101 or send email to cs@bulbspro.comNotes
Frequency Rating:, Response Frequency50/60 Hz
IncludesPhotocell
Installation Location - Motion SensorWall Switch Box
Installation TypeWall Mount
Item, Item - Motion Sensing and DimmingOccupancy Sensor
Lamp TypeFluorescent/Incandescent
LevitonBrand
Light AlmondColor
Lighting Sensor Type, Sensing TechnologyPassive Infrared
Lighting TechnologyFluorescent, Incandescent
ManufacturerLeviton Manufacturing
Manufacturer, Supplier:LEVITON
Max. Capacity @ 120VAC1200V (Primary Relay Fluorescent), 800V (Secondary Relay Fluorescent), 800W (Incandescent)
Max. Capacity @ 277VAC2700V (Primary Relay Fluorescent)
MFG Part #:ODS0D-IDT
Mounting Type, Mounting:Wall
Occupancy & Vacancy SensorsFamily
Occupancy SensorType
ODS0D-IDTStock Code
Operating Voltage - Motion Sensing and Dimming120/230/277 V AC
Power Consumption:110 @ 120V;277 @ 270V
Power Rating110 mW at 120 VAC, 270 mW at 270 VAC
Sensor TypePIR
SeriesODS Series
Single-Pole, Dual RelaySwitch Type:
Size:46 H x 1.75 W x 1.83 D IN
Standard Pack:Order QTY must be in multiples of 10
Standard:cULus Listed;CEC Title 24 Compliant FCC Compliant
StandardscUL/US Certified, FCC Compliant, Title 24, Part 6
Sub Brand:Decora
Supply Voltage:, Voltage Rating120/230/277 VAC
Switch Type2-Pole
Temperature Rating32 to 122 deg F
Time Delay30 s to 30 min
Time Delay - Motion Sensor30 sec to 30 min
Time Delay Adjustment Method - Motion SensorAdaptive, Adjustable
Time Delay TypeManual
Timer Range5 Minutes, 10 Minutes, 30 Minutes, 30 s
Type1-Pole Dual Relay
Type:Occupancy Sensor;Single-Pole Switch;Dual Relay
UL / cUL ListedUL Listed
UNSPSC45111808
UPC, UPC:078477277454
Viewing Angle180 deg
Wall SwitchMounting
