Littelfuse Inc. 5.0SMDJ40CA

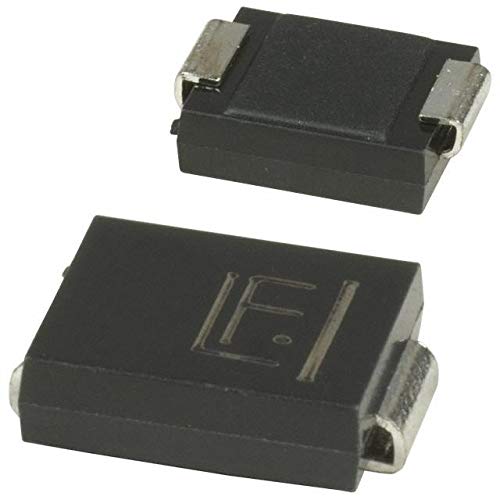

TVS DIODE 40V 64.5V DO214AB (Pack of 3000)

TVS DIODE 40V 64.5V DO214AB (Pack of 3000)zoom

Attributes

Key Value
ApplicationsTelecom
Bidirectional Channels1
BrandLittelfuse
Breakdown voltage46.75V
Capacitance @ Frequency-
CaseSMC
CategoryCircuit Protection
Current - Peak Pulse (1.77.6A
DimensionsDimensions
Diode ConfigurationSingle
Direction TypeDirection Type
ESD protectionYes
Features of semiconduct.glass passivated
HeightHeight
Kind of packagereel,
Leakage current5?A
Length7.11mm
ManufacturerLittelfuse
Max. forward impulse cu.300A
Max. off-state voltage40V
Maximum Clamping Voltage64.5V
Maximum Operating Tempe.+150 ?C
Maximum Peak Pulse Curr.77.6A
Maximum Reverse Leakage.Maximum Reverse Leakage.
Maximum Reverse Stand-o.40V
MfrLittelfuse Inc.
Minimum Breakdown Volta.44.4V
Minimum Operating Tempe.-65 ?C
MountingSMD
Mounting TypeSurface Mount
Number of Elements per .1
Operating Temperature-65?C ~ 150?C (TJ)
PackageTape & Reel (TR)
Package / CaseDO-214AB, SMC
Package TypeDO-214AB
Part StatusActive
Peak Pulse Power Dissip.Peak Pulse Power Dissip.
Peak pulse power dissip.5kW
Pin CountPin Count
Power - Peak Pulse5000W (5kW)
Power Line ProtectionNo
Semiconductor structurebidirectional
Series5.0SMDJ
StockStock
Supplier Device PackageDO-214AB (SMCJ)
Surge Current RatingSurge Current Rating
Test Current1mA
Tolerance?5%
TypeZener
Type of diodeTVS
Voltage - Breakdown (Mi.44.4V
Voltage - Clamping (Max.64.5V
Voltage - Reverse Stand.40V
Width6.22mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH6553010.92745110Littelfuse0.92745 @ 10
Newark32M51701.07300010LITTELFUSE1.07 @ 2000
thumbzoomRS Delivers171-94751.196452630Littelfuse1.1964 @ 10
thumbzoomComponent Electronics5.0SMDJ40CA-LITTELFU1.9212087Littelfuse1.92 @ 10
thumbzoomTME5.0SMDJ40CA-T7-LF1.998110LITTELFUSE1.998 @ 10
Digi-Key54529922.30115110Littelfuse Inc.2.30115 @ 10
