- mpnFLSR-500
- brandname: Littelfuse
- manufacturername: Littelfuse

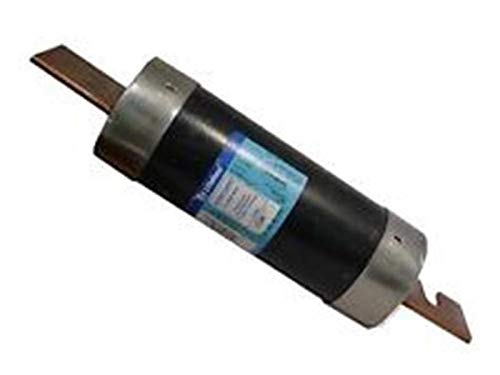

LITTELFUSE FLSR500 AMPS(500)-Volts(600/300), UL Class RK5 Dual-Element TIME-DELAY Fuse
- Brand: Littelfuse
- PartNumber: FLSR-500
- PackageQuantity: 1
Attributes
| Key | Value |
|---|
| Additional Information | Amps: 500|Volts AC: 600. |
| Alarm Contact: | No |
| Amperage | 500 |
| Amps: | 500 |
| Applications | Electrical, Industrial |
| Approval | CE, CSA |
| Approval Agency | CE, CSA, QPL, UL |
| Approvals: | UL;CSA |
| Body Length (in): | 13.38 Inches |
| Body Length (mm): | 339.7 MilliMeters |
| Body Material | Fiberglass |
| Brand: | Littelfuse |
| Breaking Capacity @ Rat. | 200kA AC, 20kA DC |
| Category | Circuit Protection |
| Characteristic: | Time Delay |
| Class | RK5 |
| Current Rating (Amps) | 500A |
| Depth (in) | 13.75 |
| Diameter (in): | 3.09 Inches |
| Diameter (mm): | 78.6 MilliMeters |
| Features | - |
| Fuse Type | Cartridge |
| Interrupt Rating: | 200KA @ 600V |
| Interrupting Rating | 200kAIC at 600VAC, 20kA. |
| Item Category: | Fuses |
| Item Number: | FLSR500 |
| Mfr | Littelfuse Inc. |
| Mounting Type | Holder |
| Operating Temperature | - |
| Package | Bulk |
| Package / Case | Cylindrical, Blade Term. |
| Package Type: | Center Bladed |
| Part Status | Active |
| Response Time | Slow Blow |
| RoHS: | No |
| Series | POWR-GARD? FLSR, FLSR |
| Series: | FLSR |
| Size / Dimension | 3.094"" Dia x 13.374"" . |
| Subcategory: | UL Class RK5 |
| Terminal Connection | Knife Blade |
| Trip Indicator: | No |
| UPC: | 079458170962 |
| Voltage | 600VAC, 300VDC |
| Voltage Rating - AC | 600V |
| Voltage Rating - DC | 300V |
| Volts AC: | 600 |
| Volts DC: | 300 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Digi-Key | 2519487 | 213.25 | 1 | 500 | | Littelfuse Inc. | | 213.25 @ 500 |
| Newark | 02B7214 | 228.18 | 1 | 500 | | LITTELFUSE | | 228.18 @ 500 |
 | superbreakers.com | FLSR-500 | 245.46 | 1 | 500 | | Littelfuse | | 245.46 @ 500 |
 | Radwell | FLSR500.X | 292.87 | 1 | 500 | | LITTELFUSE | 3.0 | 292.87 @ 500 |
 | Galco | FLSR500 | 304.95 | 1 | 500 | | Littelfuse | 3.085 | 304.95 @ 500 |
 | Lighting Supply | FLSR500.X | 316.8 | 1 | 500 | | Littelfuse | | 316.8 @ 500 |
