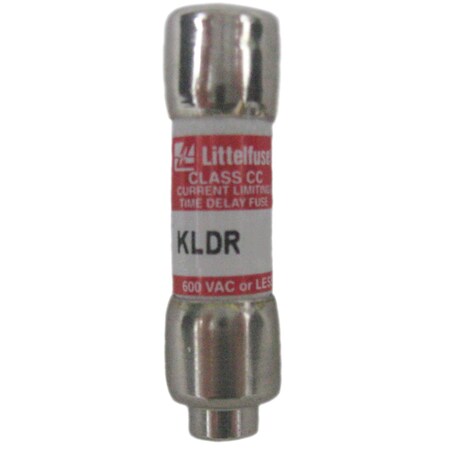

Littelfuse KLDR015.TXP Fuse, 15A, 600VAC/ 300VDC, KLDR Time Delay

mpnKLDR015.TXP
brandname: LITTELFUSE
manufacturername: LITTELFUSE

Littelfuse KLDR015.TXP Fuse, 15A, 600VAC/ 300VDC, KLDR Time Delay

Binding: Misc.
Manufacturer: Littelfuse
Label: Littelfuse

Attributes

Key	Value
Alternate Mfr Part Numb.	KLDR015A
Amperage Rating	15 A
Amps	15
Application	Transformer Protection
Applications	Transformer Protection
Approval Agency	CE, CSA, UL
Body Material	Melamine
Body Size	0.41 in Dia x 1.5 in L
Body Type	Cartridge
Brand	LITTELFUSE
Breaking Capacity @ Rat.	200kA AC, 20kA DC
Carton	1
Case Pack	10
Category Description	Midget Fuses
Class	CC, Supplemental
Classification	Midget Fuses
Country of Origin (subj.	Unknown
Current Rating	15 A
Current Rating (Amps)	15A
DC Resistance	0.0074 Ohms
Depth (in)	2.25
Description	15A 600V TD Class CC Fu.
Description:	UL CLASS CC TIME DELAY .
Diameter	13/32 in
Dimensions	0.41 x 1.5 in
extra long description	L-FSE KLDR015.TXP FUS 6.
Family / Style	KLD
Features	-
Fuse Type	Cartridge
GTIN	00079458792737
Indicating/Non-Indicati.	Non-Indicating
Interrupt Rating	20/200 kA
Interrupt Rating AC	200 kA
Interrupt Rating DC	20 kA
Item	Time Delay Fuse
Length	1 1/2 in
Long Description	KLDR fuses are time-del.
Manufacturer	LITTELFUSE
Manufacturers Part Numb.	KLDR015.TXP
Material	Melamine
MFG Part #:	KLDR015.TXP
Mfr	Littelfuse Inc.
Mounting	Cartridge
Mounting Type	Holder, Clip
Opening	Time-Delay, Slow-Blow
Operating Temperature	-
Package	10
Package / Case	5AG, 10mm x 38mm (Midge.
Part Status	Active
Primary Type	Single Use Fuses
Product Type	Fus 600V T/D Class CC 1.
Rejection/Non-Rejection	Rejection
Response Time	Slow Blow, 12 s
Series	Slo-Blo/KLDR Series, KL.
Size / Dimension	0.406" Dia x 1.500" L (.
Special Features	Time-Delay
Speed	Slow Blow
standard	248-4 UL Listed, Class .
Standard Pack:	Order QTY must be in mu.
Standards	California Proposition .
sub brand	POWR-GARD KLDR Series
Supplier:	LITTELFUSE
Terminal Type	Ferrule
Termination	Cartridge
Type	Current Limiting, CLASS.
UNSPSC	39121627 - Power fuse
UPC	079458792737
UPC:	07945879273
Voltage Rating	600 VAC/300 VDC, 600 ; .
Voltage Rating - AC	600 V
Voltage Rating - DC	300 V
Volts AC	600
Volts DC	300
Weight per each	0.03

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
steinerelectric.com	824160	12.8	1	In Stock		Littelfuse		12.8 @ 1
midwestapplianceparts.com	KLDR015.TXP-LF-P	15.36	1	In Stock		Littelfuse		15.36 @ 1
gordonelectricsupply.com	KLDR015.TXP	15.49	1	In Stock		LITTELFUSE		15.49 @ 1
Radwell	KLDR-15	18.0	1	In Stock		LITTELFUSE		18.0 @ 1
Component Electronics	505-559	19.23	1	3		Littelfuse		19.23 @ 1
standardelectricsupply.com	2252795	20.34	1	647		Littelfuse		20.34 @ 1
Carlton Bates Company	07945879273	22.2	1	In Stock		LITTELFUSE		22.2 @ 1
Digi-Key	F5898-ND	22.8	1	In Stock		Littelfuse Inc.		22.8 @ 1
Zoro	G5628694	23.95	1	In Stock	2	Littelfuse		23.95 @ 1
Newark	64W5763	25.72	1	159		LITTELFUSE		25.72 @ 1
AmazonSC	B018KIBJIU	28.66	1	In Stock		Littelfuse		28.66 @ 1
Walker Industrial	KLDR015.TXP	30.12	10	In Stock	17	Littelfuse		30.12 @ 10
kscdirect.com	LF KLDR015.TXP	30.32	1	In Stock		LITTELFUSE		30.32 @ 1
us.rs-online.com	70184082	34.28	1	97		Littelfuse		34.28 @ 1
electricalparts.com	KLDR015.TXP	37.1168	1	140		Littelfuse		37.1168 @ 1
cbtcompany.com	KLDR015.TXP	39.76	1	In Stock		Littelfuse		39.76 @ 1
Platt.com	0300147	39.78	1	In Stock		Littelfuse		39.78 @ 1
Airline Hydraulics	LITTELFUSE KLDR015.TXP	40.19	1	In Stock		Littelfuse Inc		40.19 @ 1
mayerelectric.com	LFUKLDR015.TXP	42.1	1	28		LITTELFUSE		42.1 @ 1
TME	KLDR015.T	43.69	1	20		LITTELFUSE		43.69 @ 1
Elliott Electric	KLDR15	48.75	1	In Stock		Littelfuse	0.03	48.75 @ 1
AmazonTP	B00JV3L22W	49.95	1	In Stock	1	Littelfuse		49.95 @ 1
Lighting Supply	KLDR015.TXP	268.2	1	In Stock		Littelfuse		268.2 @ 1
