- mpn0314030.MXP
- brandname: Littelfuse Inc.
- manufacturername: Littelfuse Inc.

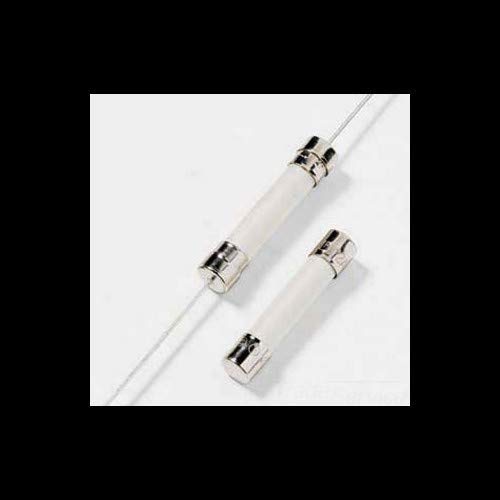

LITTELFUSE 0314030.MXP 30A 250V Class Cartridge New
- Brand: Littelfuse
- PartNumber: 0314030.MXP
- Manufacturer: LITTELFUSE
- Label: LITTELFUSE
Attributes
| Key | Value |
|---|
| Alarm Contact | No |
| Amperage Rating | 30 A |
| Amps | 30 |
| Approval Agency | CE, K-MARK, PSE, UL |
| Approvals | CE, CSA, UL |
| Body Length (mm) | 31.75 mm |
| Body Size | 1/4 in Dia x 1-1/4 in L |
| Body Type | Cartridge |
| Brand | Littelfuse |
| Breaking Capacity @ Rat. | 100A AC, 400A DC |
| Case Pack | 1000 |
| Catalog Number | 314030P |
| Characteristic | Fast Acting |
| Class | H, 3AB |
| Color | - |
| Country of Origin | Canada |
| Country of Origin (subj. | United States |
| Current Rating | 30 A |
| Current Rating (Amps) | 30 A |
| DC Cold Resistance | 0.00182 Ohms |
| Description: | FAST-ACTING 3AB TYPE CE. |
| Diameter | 0.250 in |
| Diameter (mm) | 6.35 mm |
| Dimensions | 0.5625 x 2 in |
| Family Series | Littelfuse Fuses, 314 S. |
| Fuse Type | Cartridge, Ceramic |
| Gross Weight | 0.005 lbs |
| Indicating/Non-Indicati. | Non-Indicating |
| Interrupt Rating | 400 A, 100 kA @ 250 V |
| Interrupt Rating DC | 100kA |
| Item | Fast Acting Fuse |
| Item Number | 314030P |
| Length | 1.250 in |
| Made in USA | No |
| Manufacturer | Littelfuse |
| Manufacturer Part Number | 0314030.VXP |
| Material | Ceramic |
| Melting I?t | 2490 |
| MFG Part #: | 314030P |
| Mfr | Littelfuse Inc. |
| Mounting | Cartridge |
| Mounting Type | Holder |
| Net Weight | 0.005 lbs |
| Opening | Fast-Acting |
| Operating Temperature | -55?C ~ 125?C |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Package Type | Cartridge |
| Part Status | Active |
| Primary Type | Single Use Fuses |
| Product Series | 314 |
| Response Time | 1 hr, 4 hr, 30 s, Fast . |
| RoHS | Yes |
| Series | 314 |
| Size / Dimension | 0.250" Dia x 1.250" L (. |
| Speed | Fast Acting |
| Standard Pack: | Order QTY must be in mu. |
| Standards | California Proposition . |
| Supplier: | Littelfuse |
| Terminal Type | Ferrule |
| Trip Indicator | No |
| Type | Fast Acting |
| UPC | 079458924220 |
| UPC: | 079458924220 |
| Voltage (AC) | 250 VAC |
| Voltage (DC) | 250 VDC |
| Voltage Rating | 250 VAC, 250/125 VAC/VDC |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 125 V |
| Volts AC | 250 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Newark | 25R5409 | 0.336 | 1 | 827 | | LITTELFUSE | | 0.336 @ 50 |
| TTI | 314030P | 0.476 | 25 | 1175 | | Littelfuse | | 0.476 @ 50 |
 | TME | 0314030.MXP | 0.558 | 1000 | 1000 | | LITTELFUSE | | 0.558 @ 1000 |
| us.rs-online.com | 72244432 | 0.87 | 1000 | 1000 | | Littelfuse | | 0.87 @ 1000 |
| Hotenda | H571825 | 1.0488 | 1 | 50 | | Littelfuse | | 1.0488 @ 50 |
| Arrow | 0314030.MXP | 1.265 | 1 | 930 | | Littelfuse | | 1.265 @ 50 |
| Mouser | 576-0314030.MXP | 1.54 | 1 | 841 | | Littelfuse | | 1.54 @ 50 |
| steinerelectric.com | 1148357 | 2.47 | 1 | 50 | | Littelfuse | | 2.47 @ 50 |
 | Galco | 314030P-LF | 2.61 | 1 | 50 | | Littelfuse | 0.005 | 2.61 @ 50 |
 | Walker Industrial | 314030P | 3.53 | 5 | 50 | 17 | Littelfuse | | 3.53 @ 50 |
| kscdirect.com | LF 314030P | 3.64 | 1 | 50 | | LITTELFUSE | | 3.64 @ 50 |
 | Platt.com | 0033900 | 4.55 | 1 | 87 | | Littelfuse | | 4.55 @ 50 |
 | crescentelectric.com | 1148353 | 5.13 | 1 | 50 | | Littelfuse | | 5.13 @ 50 |
 | Zoro | G5622735 | 5.95 | 5 | 50 | 2 | Littelfuse | | 5.95 @ 50 |
| cbtcompany.com | 314030P | 6.2 | 1 | 50 | | Littelfuse | | 6.2 @ 50 |
| AmazonSC | B00LQPXCBM | 17.3 | 1 | 50 | | Littelfuse | | 17.3 @ 50 |
 | gordonelectricsupply.com | 314030P | 21.95 | 1 | 50 | | LITTELFUSE | | 21.95 @ 50 |
 | electricalparts.com | 314030P | 22.1424 | 1 | 50 | | Littelfuse | | 22.1424 @ 50 |
| Lighting Supply | LITTELFUSE-0314030.MXP | 2850.0 | 1 | 50 | | Littelfuse | | 2850.0 @ 50 |
