mpn:
brand:
manufacturer:
MPN:
Description:

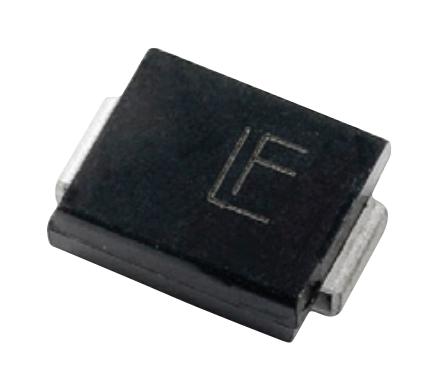

93.6V Clamp 53.5A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ)
Preferred Price:
38.58
Price:
38.58
Min Simple Price:
0.8438
Absolute Min Price:
29.95
Min Price:
29.95
qty:
1
simpleSku:
zE2NzU:::5.0SMDJ58CA
sku:
zE2NzU::PB:5.0SMDJ58CA@x25
condition:
11
seller:
Bristol Electronics
amzMan:
littelfuse
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications | Telecom, General Purpose |
| Base Product Number, Series | 5.0SMDJ |
| Bidirectional Channels | 1 |
| Breakdown voltage | 67.8V |
| Capacitance @ Frequency | - |
| Case | SMC |
| Category | Circuit Protection |
| Current - Peak Pulse (10/1000?s) | 53.5A |
| Description | TVS DIODE 58VWM 93.6VC DO214AB |
| Detailed Description | 93.6V Clamp 53.5A Ipp Tvs Diode Surface Mount DO-214AB (SMCJ) |
| Digi-Key Part Number | F10857TR-ND - Tape & Reel (TR) |
| Features of semiconductor devices | glass passivated |
| Kind of package | reel, |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Leakage current | 5?A |
| Manufacturer | LITTELFUSE |
| Manufacturer Part Number | 5.0SMDJ58CA-T7 |
| Manufacturer Product Number | 5.0SMDJ58CA |
| Manufacturer Standard Lead Time | 18 Weeks, 12 Weeks |
| Manufacturer, Mfr | Littelfuse Inc. |
| Max. forward impulse current | 300A |
| Max. off-state voltage, Voltage - Reverse Standoff (Typ) | 58V |
| Mounting | SMD |
| Mounting Type | Surface Mount |
| Operating Temperature | -65, -65?C ~ 150?C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | DO-214AB, SMC |
| Packaging | Reel |
| Peak pulse power dissipation | 5kW |
| Power - Peak Pulse | 5000W (5kW) |
| Power Line Protection | No |
| Product Status | Active |
| Semiconductor structure | bidirectional |
| Standard Package | 500 |
| Supplier Device Package | DO-214AB (SMCJ) |
| Tolerance | ?5% |
| Type | Zener |
| Type of diode | TVS |
| Voltage - Breakdown (Min) | 64.4V |
| Voltage - Clamping (Max) @ Ipp | 93.6V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Bristol Electronics | 5.0SMDJ58CA | 0.8438 | 12.99452 | 1 | 142 | Littelfuse | 0.8438 @ Qty: 25+ | |||
 | i-components | 5.0SMDJ58CA-T7 | 0.878 | 13.5212 | 1 | 40780 | Hamlin / Littelfuse | 0.878 @ Qty: 25+ | ||
| Fuses Unlimited | 5.0SMDJ58CA | 1.117 | 1357.155 | 3000 | 25 | Littelfuse | 1.117 @ Qty: 3000+ | |||
 | iodParts | 5.0SMDJ58CA-T7 | 1.168 | 134.32 | 250 | 1500 | Littelfuse | 1.168 @ Qty: 250+ | ||
| Rutronik | DTRL10120 | 1.19 | 1445.85 | 3000 | 25 | Littelfuse | 1.19 @ Qty: 3000+ | |||
 | Newark | 26AH0778 | 1.47 | 22.638 | 1 | 2365 | LITTELFUSE | 1.47 @ Qty: 25+ | ||
| Quest | 5.0SMDJ58CA | 1.875 | 17.325 | 1 | 113 | Littelfuse | 1.125 @ Qty: 41+ | |||
 | TME | 5.0SMDJ58CA-T7-LF | 2.0336 | 31.31744 | 1 | 25 | LITTELFUSE | 2.0336 @ Qty: 25+ | ||
| Mouser | 576-5.0SMDJ58CA | 2.09 | 32.186 | 1 | 2304 | Littelfuse | 2.09 @ Qty: 25+ | |||
 | Digi-Key | 2786418 | 2.664 | 41.0256 | 1 | 37340 | Littelfuse Inc. | 2.664 @ Qty: 25+ |
