Little Giant 506406

B018QCZMFQ

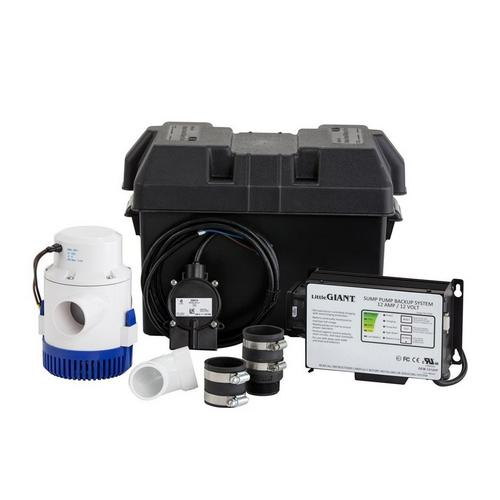

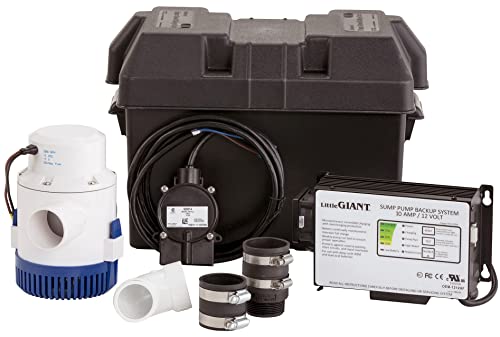

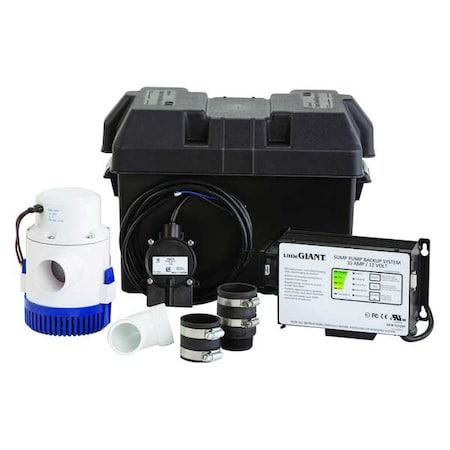

Little Giant SPBS-10HF 10 Amp, 2520 GPH Sump Pump Battery Back Up System with Controller, Back-up Pump, Switch, Fittings, Black, 506406

Little Giant SPBS-10HF 10 Amp, 2520 GPH Sump Pump Battery Back Up System with Controller, Back-up Pump, Switch, Fittings, Black, 506406zoom

Attributes

Key Value
12VDC Battery Charger10A
Alarm IncludedYes
Amperage Rating10 A
Amps14.0 A
Amps - Back-Up14
Amps - Pumps14.00
Base MaterialAcetal
Body MaterialAcetal (Primary)
Cord Length6 ft
Cord Length - Pumps6 ft.
Country of Origin (subj.United States
Description:SPBS-10HF Battery Backup
Dimensions11 in H x 9.75 in W x 1.
Discharge1-1/2 in FNPT
Discharge Dia.1 1/2 in
Discharge GenderFemale
Discharge NPT1-1/2"
Discharge StandardNPT
DutyContinuous
Duty CycleContinuous
Flow Rate42 gpm
Flow Rate @ 10 Ft. of H.20.0 gpm (Primary)
Flow Rate @ 5 Ft. of He.29.0 gpm (Primary)
For Use WithSump Pits Above 15" Dia.
Frequency Rating60 Hz
GPH of Water @ 0 Ft. of.2520
GPH of Water @ 10 Ft. o.1200
GPH of Water @ 15 Ft. o.600
GPH of Water @ 5 Ft. of.1740
GPM of Water @ 5 Ft. of.29 (Primary)
Height7-1/4"
HP1/3 (Primary)
Impeller MaterialNylon (Primary)
Impeller Material - Pum.Nylon
Impeller TypeSemi-Open
IncludesBattery Charger, Check .
ItemSump/Battery Back-Up Sy.
Item - Sump PumpsSump/Battery Back-Up Sy.
Length6"
ManufacturerLITTLE GIANT PUMP COMPA.
MaterialPlastic
Max. Dia. Solids (In.) .1/8
Max. Diameter Solids1/8"
Max. Flow (GPH)2520
Max. Flow (GPH) - Back-.2520
Max. Flow (GPH) - Pumps2520
Max. Head20.0 ft (Primary); 20.0.
Max. Head (Ft.) - Back-.20
Max. Head - Pumps20 ft.
Max. Liquid Temp.120 Degrees F
Maximum Pressure8.7 psi
MFG Part #:506406
Min. Sump Pit Dia.10 in
Motor TypeBrush
Outlet Size1-1/2 in
Overall Height7 1/4 in
Phase1 ph
Primary Pump Amps14.0
Primary Pump Body Mater.Acetal
Primary Pump Duty CycleContinuous
Primary Pump Flow Rate .20.0 gpm
Primary Pump Flow Rate .29.0 gpm
Primary Pump HP1/3 hp
Primary Pump Impeller M.Nylon
Primary Pump Maximum He.20 ft
Primary Pump Maximum So.1/8 in
Primary Pump Overall He.7 1/4 in
Primary Pump Rated Volt.12V DC
Primary Pump Shaft Seal.Buna-N
Primary Pump Width at W.4 1/4 in
ProductBack-up System
Pump Body MaterialAcetal
Pump HP1/3
Secondary Pump Amps14
Secondary Pump Maximum .20 ft
Secondary Pump Maximum .1/8 in
Secondary Pump Rated Vo.12V DC
SeriesSPBS Series
Shaft Seal Material - P.Nitrile Rubber
Supplier:LITTLE GIANT PUMP COMPA.
Switch ActuationDiaphragm
Switch Electrical Conne.Integral
Switch Type - PumpsDiaphragm
Temperature Rating120 deg F
TypeSump Pump
UPC:0 10121 14802 4
UseResidential & Commercial
Voltage12
Voltage - Back-Up12VDC
Voltage - Pumps12VDC
Voltage Rating115 VAC
Width4-1/4"
Width at Widest Point4 1/4 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomPlumbersStock772039342.721In StockLittle Giant18.0342.72 @ 1
thumbzoomZoroG4447445364.191In Stock10Little Giant Pump16.0364.19 @ 1
thumbzoomNational Supply Network35970524424.911In StockLittle Giant Pumps424.91 @ 1
thumbzoomusmegastore.com506406452.61In StockLittle Giant452.6 @ 1
thumbzoomMegadepot506406452.61In StockLittle Giant452.6 @ 1
thumbzoommidwestapplianceparts.com506406-LG-P455.351In StockLittle Giant455.35 @ 1
thumbzoomsumppumpsdirect.com506406458.01In StockLittle Giant458.0 @ 1
thumbzoomacwholesalers.com506406458.01In StockLITTLE GIANT11.5458.0 @ 1
thumbzoomHome PerfectLIT506406462.01In StockLittle Giant462.0 @ 1
thumbzoomheavydutydepot.com506406475.31In StockLittle Giant475.3 @ 1
kscdirect.comLG 506406540.481In StockLITTLE GIANT PUMP COMPANY540.48 @ 1
AF Supply506406596.0511Little Giant596.05 @ 1
