Little Giant 506600

B01LXKVI73

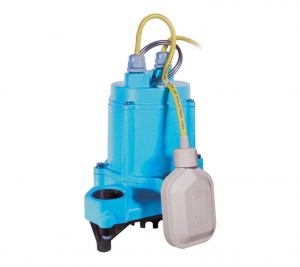

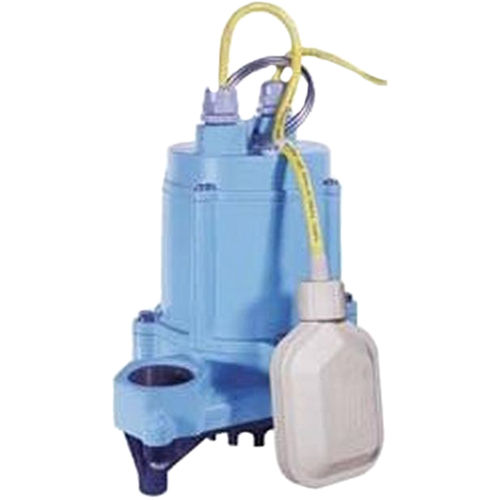

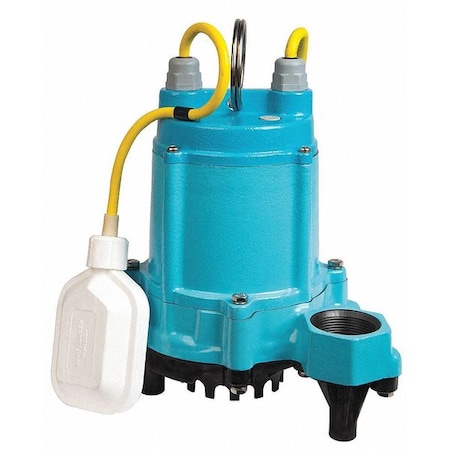

Little Giant 506600, HT-6E-CIA-FS High Temperature Sump Pump, Integral Mechanical Float Switch

Little Giant 506600, HT-6E-CIA-FS High Temperature Sump Pump, Integral Mechanical Float Switchzoom

Attributes

Key Value
Agency ComplianceCSA
AlarmNo
Alarm IncludedNo
AMP10.1
Amperage Rating10.1 A
Amps10.1 A
Amps - Pumps10.10
Base MaterialRyton
Bearing TypeUpper/Lower Sintered Sl.
Body Dia.8 13/16 in
Body MaterialCast Iron
BrandLittle Giant
Cord Length15 ft
Cord Length - Pumps8 ft.
Cord TypeSJOOW 16/3 AWG 15 ft
Corded CordlessCorded
Country of Origin (subj.Mexico
Description:HT-6E-CIA-FS 115V 15FT .
Diameter8-13/16"
Dimensions8.8 in L x 8.5 in W x 1.
Discharge1-1/2 in, 1-1/2 in FNPT
Discharge Dia.1 1/2 in
Discharge GenderFemale
Discharge NPT1-1/2" F
Discharge Pressure8.7
Discharge StandardNPT
Domestic/ImportImport
DutyContinuous
Duty CycleContinuous
FLA10.7
Flow Rate50 gpm
Flow Rate @ 10 Ft. of H.42 gpm
Flow Rate @ 15 Ft. of H.27.0 gpm
Flow Rate @ 5 Ft. of He.50.0 gpm
Frequency Rating60 Hz
Gauge/Conductor18/3
GPM of Water @ 10 Ft. o.42
GPM of Water @ 15 Ft. o.27
GPM of Water @ 5 Ft. of.50
Height10-9/10 in, 10-7/8"
Horsepower1/3 hp
Housing MaterialEpoxy Coated Cast Iron
HP1/3
Hz60 Hz
ImpellerNylon
Impeller MaterialNylon
Impeller Material - Pum.Nylon
Impeller TypeVortex Nylon
International ShippingNo
ItemSubmersible Sump Pump
Item - Sump PumpsSubmersible Sump Pump
Length8-4/5 in
ManufacturerLITTLE GIANT PUMP COMPA.
Manufacturers Warranty .2 yr
MaterialNylon
Max. Dia. Solids1/2"
Max. Diameter Solids1/2 in
Max. Head20.0 ft
Max. Head - Pumps20 ft.
Max. Liquid Temp.200 Degrees F
Max. Temp.200 Degrees F
Maximum Feet of Head20
Maximum Head20 ft
Maximum Pressure8.7 psi
Maximum Suction Lift15 ft
Mechanical SealCRB/CMC
MFG Part #:506600
Min. Sump Pit Dia.18 in
Motor RPM1750
Motor TypeShaded Pole
Mpn506600
NEC Cord DesignationSJTW
Off Point2 in
On Point10 in
Outlet Size1-1/2 in FNPT
Overall Height10 7/8 in
PhaseSingle Phase, 1 ph
Product TypePump
Prop 65WARNING: Cancer and Rep.
Pump ApplicationSump
Pump Body MaterialCast Iron
Pump HP1/3
Pump Motor TypeShaded Pole
Rated Voltage115V AC
RPM1,750 RPM
SeriesHT-6E
Shaft SealStainless Steel/Carbon/.
Shaft Seal Material - P.Carbon, Ni-Resist
SKUZO-G0774602
Standard Pack:Order QTY must be in mu.
Start17
SubCategoryPumps
Supplier:LITTLE GIANT PUMP COMPA.
Switch ActuationTether Float
Switch Electrical Conne.Integral
Switch TypeTether
Switch Type - PumpsTether
Temperature Rating200 deg F
Thermal ProtectionYes
Turn On Turn Off LevelsTurn on 14 in/Turn off .
UPC010121137677
UPC:0 10121 06600 7
VAC at 60 Hz115
Voltage115V
Voltage - Pumps120VAC
Voltage Rating115 VAC
Volts115V
Watts735
Weight32
Width8-1/2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomCanarsee506600385.951In StockLITTLE GIANT385.95 @ 1
thumbzoomPexUniverse506600385.951In StockLittle Giant385.95 @ 1
thumbzoomPlumbersStock104777480.061In StockLittle Giant32.0480.06 @ 1
thumbzoomZoroG0774602489.691In Stock26Little Giant Pump30.4489.69 @ 1
thumbzoomsimsupply.comZO-G0774602560.361In StockLittle Giant560.36 @ 1
thumbzoomusmegastore.com506600575.01In StockLittle Giant575.0 @ 1
thumbzoomheavydutydepot.com506600575.01In StockLittle Giant575.0 @ 1
thumbzoommidwestapplianceparts.com506600-LG-P595.881In StockLittle Giant595.88 @ 1
AmazonTPB01LXKVI73603.31In Stock10Little Giant603.3 @ 1
kscdirect.comLG 506600656.231In StockLITTLE GIANT PUMP COMPANY656.23 @ 1
grainger.caLGP506600667.944745681In StockLITTLE GIANT32.0667.94474568 @ 1
thumbzoompumpproducts.com506600701.631In Stock26Little Giant701.63 @ 1
AF Supply6CIAHT705.61In StockLittle Giant705.6 @ 1
ferguson.com1121751944.631In StockLittle Giant944.63 @ 1
