Little Giant 553245

B01LX94LEQ

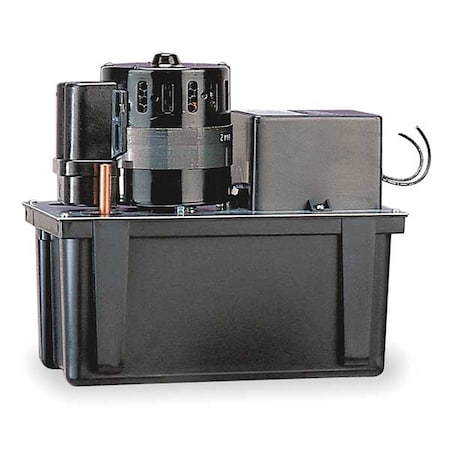

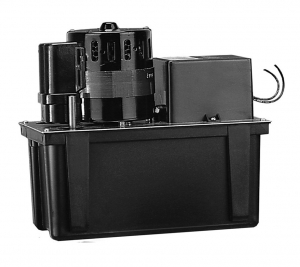

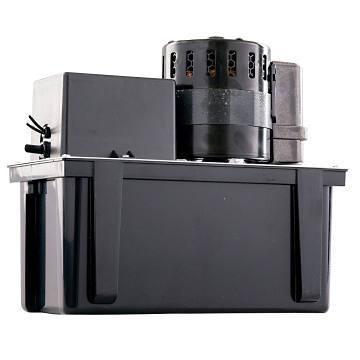

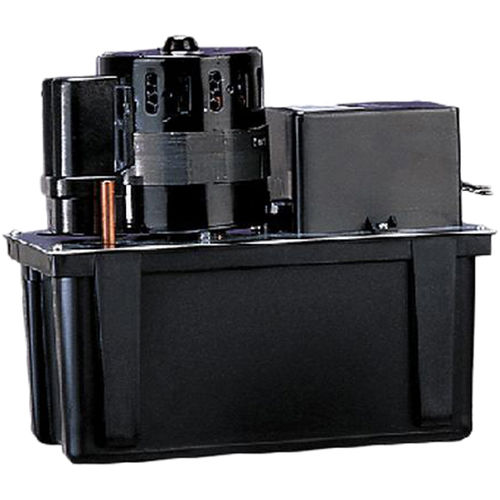

Little Giant 553245, VCL-45ULS Series1/5 hp Condensate Pump with Safety Switch, 230V - 50/60Hz

Little Giant 553245, VCL-45ULS Series1/5 hp Condensate Pump with Safety Switch, 230V - 50/60Hzzoom

Attributes

Key Value
Amps1, 1.0 A
Body Gasket MaterialStainless Steel
BrandLittle Giant Pumps, Lit.
ColorBlack
Compatible Discharge Pi.3/8 in
Compatible Intake Pipe .1 1/8 in
Compatible Media TypeWater
Condensate Pumps - TypeCondensate
Cord Length6 ft, 6 ft.
Cord Type6 ft Power
Country of OriginMEXICO
Country of Origin (subj.MEXICO
Description:VCL-45ULS 230V 6FT 50/6.
Dimensions12.11 in L x 6 in W x 1.
Discharge3/8" Copper Tube
Discharge Connection3/8 in Barbed
Discharge Connection St.Barbed
Discharge Size3/8" OD Copper
Discharge Size - Pumps3/8 in Copper Tube
Domestic/ImportImport
Electrical Connection T.Cord with Plug
Electrical Ratings230 V 50/60 Hz 1 A
Float MaterialPolypropylene, Solid Po.
Flow Rate450 gph
For Use With Potable Sy.No
Frequency50/60 Hz
GPH of Water @ 1 Ft. of.450
GPH of Water @ 12 Ft. o.400
GPH of Water @ 15 Ft. o.380
GPH of Water @ 30 Ft. o.250
GPH of Water @ 5 Ft. of.440
GPH of Water @ 9 Ft. of.415
Height11.000, 10 1/2 in
Horsepower1/5 hp
HP1/5
HP - Pumps1/5 hp
Impeller TypePolypropylene
Includes6 ft Power Cord, Safety.
Inlet Size1-1/8 in
Intake Connection1 1/8 in Open
Intake Connection StyleOpen
International ShippingNo
ItemCondensate Removal Pump
Length12.880, 12 in
Length (Straight Wirewa.12 in
ManufacturerLITTLE GIANT PUMP COMPA.
Manufacturer Model NoCV-35
Manufacturer NameLittle Giant
Manufacturer Warranty L.1 yr
MaterialABS
Max. Head - Pumps45 ft
Max. Head Range30 ft and above
Max. Temp - Pumps120 Degrees F
Max. Temp.120 Degrees F
Maximum Ambient Tempera.120 Degrees F
Maximum Feet of Head45 ft
Maximum Flow Rate @ 1 F.7.5 gpm
Maximum Flow Rate @ 10 .6.9 gpm
Maximum Flow Rate @ 15 .6.3 gpm
Maximum Flow Rate @ 20 .5.5 gpm
Maximum Flow Rate @ 25 .4.2 gpm
Maximum Flow Rate @ 30 .3.3 gpm
Maximum Flow Rate @ 40 .1.3 gpm
Maximum Flow Rate @ 5 F.7.3 gpm
Maximum Flow Rate @ 50 .[DELETE]
Maximum Media Temperatu.120 Degrees F
Maximum Operating Press.19.5 psi
Maximum Pressure19.5 psi
MFG Part #:553245
Mpn553245
Nameplate Voltage230V AC
Outlet Size3/8 in Barb
Overall Height10.85 in
Overall Length12.11 in
Overall Width6 in
Package Quantity1
PhaseSingle
Plenum RatedNo
Power Rating93 W
Prop 65WARNING: Cancer and Rep.
Pump Activation TypeFloat Switch
Pump Housing MaterialABS Plastic
Pump TypeCondensate Pump, Conden.
Reservoir Capacity1 gal, 1 gal.
Reservoir Capacity - Pu.1 gal
Reservoir Size - PumpsLarge
SeriesVCL-45ULS
Series FamilyVCL
Shaft MaterialStainless Steel
Shut Off Level1.9 in
Shut-Off45 ft.
Shutoff Head45 ft
Size MeasureIN
SKUZO-G3261395
StandardscCSAus
SubCategoryPumps
Supplier:LITTLE GIANT PUMP COMPA.
Tank Capacity1 gal
Temperature Rating120 deg F
Turn On Level3.5 in
TypeLarge Tank
UNSPSC40101700
UPC010121532458, 010121539.
UPC Code10121532458
UPC:0 10121 53245 8
Voltage230
Voltage - Pumps230V AC
Watts250, 250 W
Weight14 lbs, 10.500
Weight MeasureLB
Width6.500, 6 in
