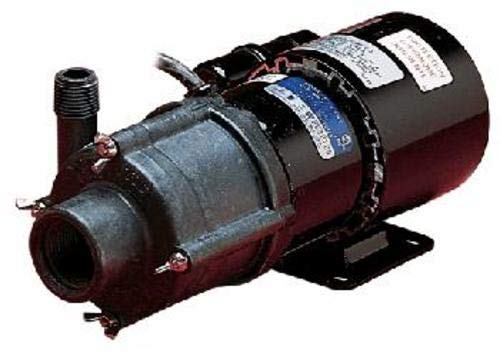

Little Giant 582604 TE-4-MD-HC Chemical Pump 1/10 Hp 850 GPH 6' Cord 115V

Little Giant 582604 TE-4-MD-HC Chemical Pump 1/10 Hp 850 GPH 6zoom

Attributes

Key Value
AMP1.7
Amperage Rating1.7 A
ApplicationFor Highly Corrosive Ch.
Bearing TypeThrust
Capacity14 gpm
Catalog Page NumberP-497
Cord6 ft (1.8 m)
Cord Length6 ft
Cord Type3-conductor SJO
Country of OriginUSA
Country of Origin (subj.Mexico
Description:TE-4-MD-HC 115F 6FT 60HZ
DesignGravity-feed, Requires .
Dimensions10.9 in L x 5.5 in W x .
Discharge1/2 in
Discharge Pressure10.5
End Connection 1MNPT
End ConnectionsMNPT
Flow Rate14 gpm, 850 gph
Frequency Rating60 Hz
Full Load Amps1.70
Gasket MaterialFKM
GPM of Water @ 15 Ft. o.9.1
GPM of Water @ 18 Ft. o.7.2
GPM of Water @ 24 Ft. o.-
GPM of Water @ 3 Ft. of.13.2
GPM of Water @ 40 Ft. o.-
GPM of Water @ 50 Ft. o.-
GPM of Water @ 6 Ft. of.12.7
GPM of Water @ 9 Ft. of.11.8
Height5 in
Horsepower1/10 hp
Housing MaterialPPS
HP1/10 hp
ImpellerPlastic
Impeller MaterialPPS
Impeller TypeGlass-Filled Polypropyl.
Inlet1 in FPT
Inlet Size1/2 in FNPT
ItemMagnetic Drive Pump
Item Number95040
Length11 in, 10-22/25 in
Length (Straight Wirewa.11 in
ManufacturerLITTLE GIANT PUMP COMPA.
Manufacturer Part #582604
MaterialPlastic
Material TypeGlass-Filled Polypropyl.
Max. Head24.3 ft
Max. Specific Gravity1.1
Max. Viscosity100 SSU
Maximum Feet of Head24.3
Maximum Pressure10.5 psi
MFG Part #:582604
Motor EnclosureTEFC
Motor Speed3000 rpm
Motor TypePSC
MountingHorizontal
Operating Pressure10.5 psi
Outlet1/2 in MPT
Outlet Size1/2 in MNPT
PhaseSingle Phase
Power Rating178 W
Power SourceBattery
Product TypePump
Pump ApplicationChemical Transfer
Pump Body MaterialPlastic
Pump Motor TypeTEFC
Pump Phase1
SeriesMD-HC
Standard Pack:Order QTY must be in mu.
Suction Line OD1/2 in
Supplier:LITTLE GIANT PUMP COMPA.
Temp. @ 0 psig180 Degrees F
Temp. @ 10 psig165 Degrees F
Temp. @ 20 psig145 Degrees F
Temp. @ 30 psig135 Degrees F
Temperature Rating200 deg F
TypeL582604, In-Line Non-Su.
UPC:0 10121 82604 5
VAC at 60 Hz115
Voltage115
Voltage Rating115 VAC
Volts115 V, 115V
Weight9.483 lbs
Width5 1/2 in, 5-1/2 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG2965322320.01In StockLittle Giant Pump320.0 @ 1
Global IndustrialB778349366.951In StockLittle Giant366.95 @ 1
thumbzoomMegadepot582604495.41In StockLittle Giant495.4 @ 1
thumbzoomusmegastore.com582604495.41In StockLittle Giant495.4 @ 1
thumbzoomheavydutydepot.com582604495.41In StockLittle Giant495.4 @ 1
thumbzoomPlumbersStock105600524.421In StockLittle Giant10.25524.42 @ 1
thumbzoommidwestapplianceparts.com582604-LG-P544.321In StockLittle Giant544.32 @ 1
thumbzoomNational Supply NetworkB778349587.531In StockLITTLE GIANT587.53 @ 1
kscdirect.comLG 582604588.661In StockLITTLE GIANT PUMP COMPANY588.66 @ 1
thumbzoomGuardian09279985651.711In StockLittle Giant651.71 @ 1
thumbzoompumpproducts.com582604660.771In StockLittle Giant660.77 @ 1
ferguson.com493082715.391In StockLittle Giant715.39 @ 1
thumbzoomusplastic.com95040807.241In StockLittle Giant9.483807.24 @ 1
