mpn:
brand:
manufacturer:
MPN:
Description:

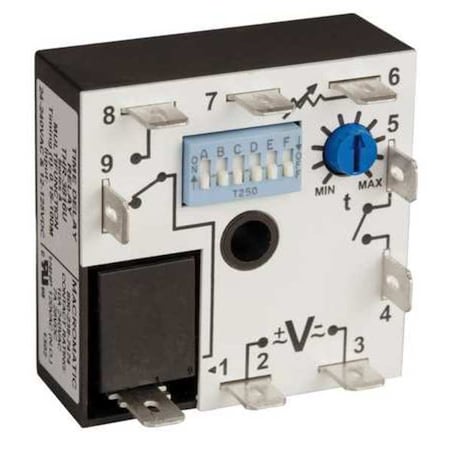

Time Delay Relay, Multi-Funct, 0.1s-100 min, 24-240VAC, 12-125VDC, THR Series
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
84.13
Price:
84.13
Min Simple Price:
46.0
Absolute Min Price:
65.31
Min Price:
65.31
Dimensions:
[3.0, 3.0, 2.0]
qty:
2
simpleSku:
MTcyNg:::THR-3836U
sku:
MTcyNg::AO:THR-3836U@y0
condition:
11
seller:
Grainger
amzMan:
macromatic
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Contact Rating - Relay | 10A @ 240V |
| Adjustment Method - Timer | Dip Switch |
| Adjustment Operator | Knob |
| Approvals | CE |
| Body Depth - Relay, Body Width - Relay | 2.0 in |
| Body Depth, Body Height - Relay | 0.79 in |
| Body Height, Body Width | 2 in |
| Comments | Flasher ON or Flasher OFF |
| Contact Form - Relay, Contacts | SPDT |
| Contact Rating (A) | 10 A |
| Control Voltage | 24 to 240 |
| DC Contact Rating - Relay | 7A @ 28V |
| Family Series | Macromatic Relays, THR Series |
| Function | Multi Function, Repeat Cycle Equal On/Off Time, Watchdog, Single Shot Falling Edge |
| Function - Timing Relay | Flasher Off, Flasher On, One Shot Falling Edge, Watchdog |
| Gross Weight, Net Weight | 0.1865 lbs |
| Input or Control Voltage, Input Voltage | 12 to 125V DC, 24 to 240V AC |
| Item - Relay | Multi-Function Encapsulated Timing Relay |
| Item Number, Manufacturer Part Number | THR-3836U |
| Manufacturer | Macromatic |
| Max Time | 100 Min |
| Max. Time Setting - Timer | 1 hr 40 sec |
| Min. Time Setting - Timer | 0.1 sec |
| Mode of Operation | Flasher, One-Shot, Watchdog |
| Mounting - Relay, Mounting Type | Surface |
| Mounting Type | DIN Rail Mount |
| Multi-Function, RoHS | Yes |
| Nominal Coil Voltage | 12 VDC, 24 VAC, 24 VDC, 48 VAC, 48 VDC, 120 VAC, 208 VAC, 240 VAC |
| Number of Pins - Relay, Pins | 9 |
| Operating Functions | 3,6,11 |
| Overall Depth, Overall Height - Relay | 1.14 in |
| Primary Type | Time Delay Relays |
| Product Series | THR |
| Series | THR Series |
| Standards | UL Listed |
| Termination | 0.250 in Flat Blade |
| Time Range (Minutes), Time Range (Seconds) | 0-1, 0-2, 0-3, 0-5, 0-10, 0-15, 0-30, 0-60, 0-100 |
| Time Range Adjustment | Onboard, Remote |
| Timing Range | 0, 0.1 Sec to 100 Min |
| Voltage (AC) | 24-240 VAC |
| Voltage (DC) | 12-125 VDC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Grainger | 21EP68 | 46.0 | 46.0 | 1 | 56 | 0 | MACROMATIC | 46.0 @ Qty: 1+ | ||
 | Zoro | G5126545 | 48.05 | 48.05 | 1 | 33 | Macromatic | 0.2 | 48.05 @ Qty: 1+ | |
 | sustainablesupply.com | C1170847 | 59.9 | 59.9 | 1 | In Stock | Macromatic | 0.2 | 59.9 @ Qty: 1+ | |
 | Galco | THR-3836U-MCRM | 63.31 | 63.31 | 1 | 1 | Macromatic | 0.1865 | 63.31 @ Qty: 1+ | |
| AmazonTP | B00DWIA8AO | 69.04 | 69.04 | 1 | In Stock | 2 | Macromatic | 69.04 @ Qty: 1+ | ||
| AmazonUNK | B00DWIA8AO | 69.04 | 69.04 | 1 | In Stock | Macromatic | 69.04 @ Qty: 1+ | |||
 | blackhawksupply.com | THR-3836U | 77.53 | 77.53 | 1 | In Stock | Macromatic | 77.53 @ Qty: 1+ | ||
 | Walker Industrial | THR-3836U | 79.52 | 79.52 | 1 | In Stock | 17 | Macromatic | 79.52 @ Qty: 1+ | |
 | Raptor Supplies | AF7JAG | 84.069414 | 84.069414 | 1 | In Stock | MACROMATIC | 84.069414 @ Qty: 1+ | ||
| us.rs-online.com | 70274478 | 89.29 | 89.29 | 1 | 2 | Macromatic | 89.29 @ Qty: 1+ |
